ELECTRICAL SYSTEM 16-27
Battery
•

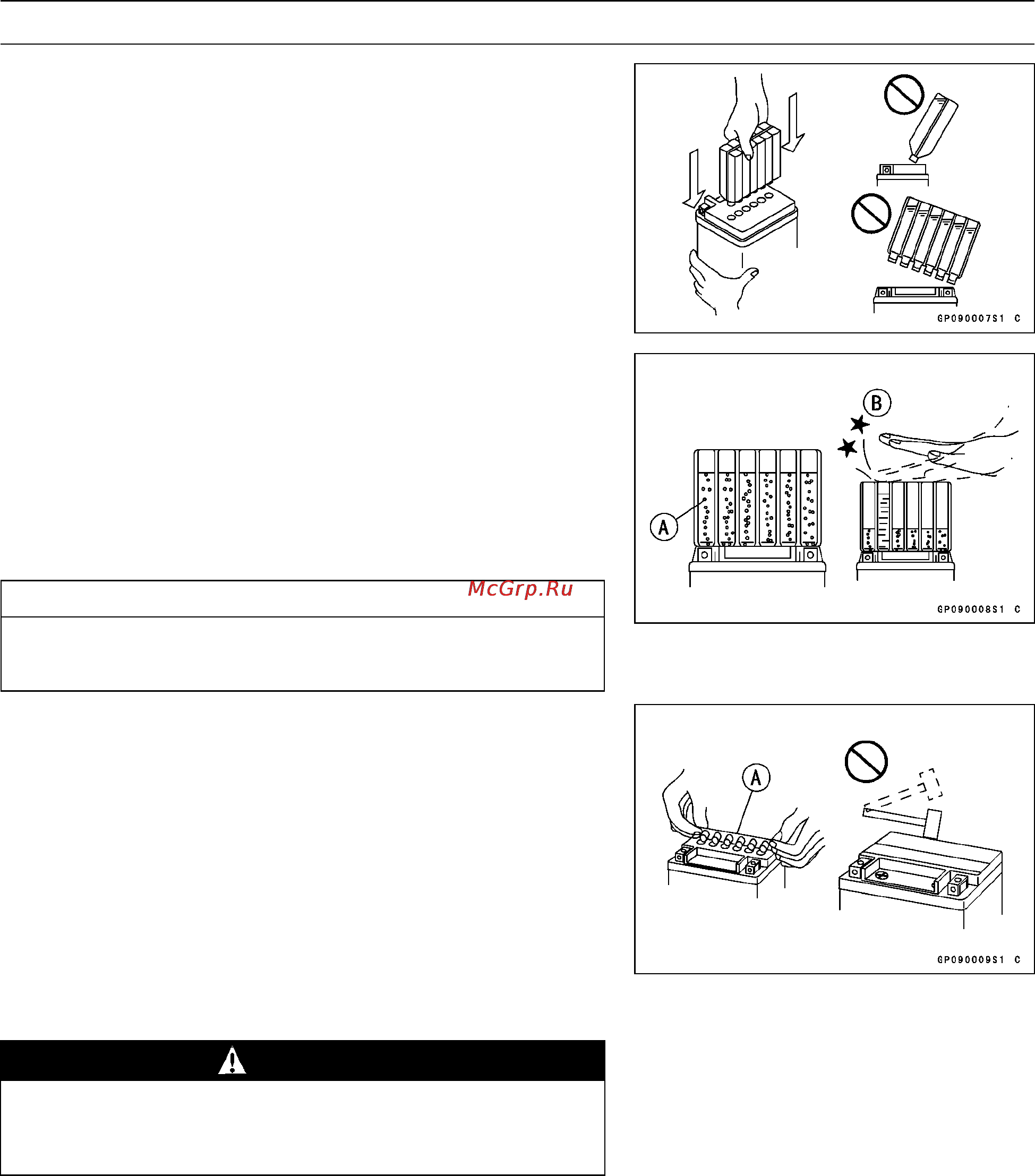

Place the electrolyte container upside down aligning the
six seals with the six battery filler ports.
•
Push the container dow n strongly enough to break the
seals. Now the electrolyte should start to flow into the
battery.
NOTE
○
Do not tilt the container as the electrolyte flow may be
interrupted.
•
Make sure air bubbles [A] are coming up from all six filler
ports.
○
Leave the container this way for 5 minutes or longer.
NOTE
○
If no air bubbles are c oming up from a filler port, tap [ B]
the bottom of the container two or three times. Never
remove the container from the battery.
CAUTION
Fill the electrolyte into the battery until the con-
tainer is completely emptied.
•
Be certain that all the electrolyte has flowed out.
•
Tap the bottom the same way as above if there is any
electrolyte left in the container.
•
Now pull the container gently out of the battery.
•
Let the battery sit for 20 minutes. During this tim e, the
electrolyte permeates the special separators and the gas
generated by chemical reaction is released.
•
Fit the seal cap [A] tightly into the filler ports until the seal
cap is at the same level as the top of the battery.
NOTE
○
Do not hammer. Press down evenly with both hands.
WARNING
Once you installed the seal cap after filling the bat-
tery, never remove it, nor add any water or elec-
trolyte.
