Check
3 Warm the engine up to normal operating
temperature then stop It.
4 Unscrew the three bolts securing the
circular pulse generator assembly cover to the
right-hand side crankcase cover (se.
illustration 4.7).
5 The timing marl< on the rotor is an F which
indicates the firing point at idle speed for the
right-hand cylinder (s.. illustration). The
static timing mark with which this should align
is the contact on the pulse generator coil.
;; The rotor timing mark can be
H . . highlighted with white paint
I {typist's correction fluid is
ideal} to make it more visible
under the stroboscopic light.
Ignition system 4-5
8 With the machine idling at the specified
speed, the timing mark should align with the
static timing mark.
9 Slowly increase the engine speed whilst
observing the timing mark. The timing mark
should move anti-clockwise, increasing in
relation to the engine speed until it reaches
full advance (no identification mark).
10 As already stated, there is no means of
adjustment of the ignition timing on these
machines. If the ignition timing is incorrect, or
suspected of being incorrect, one of the
ignition system components is at fault, and
the system must be tested as described in the
preceding Sections of this Chapter.
11 When the check is complete, install the
cover and tighten its bolts securely (s..
IIlusb"ation 4.16).

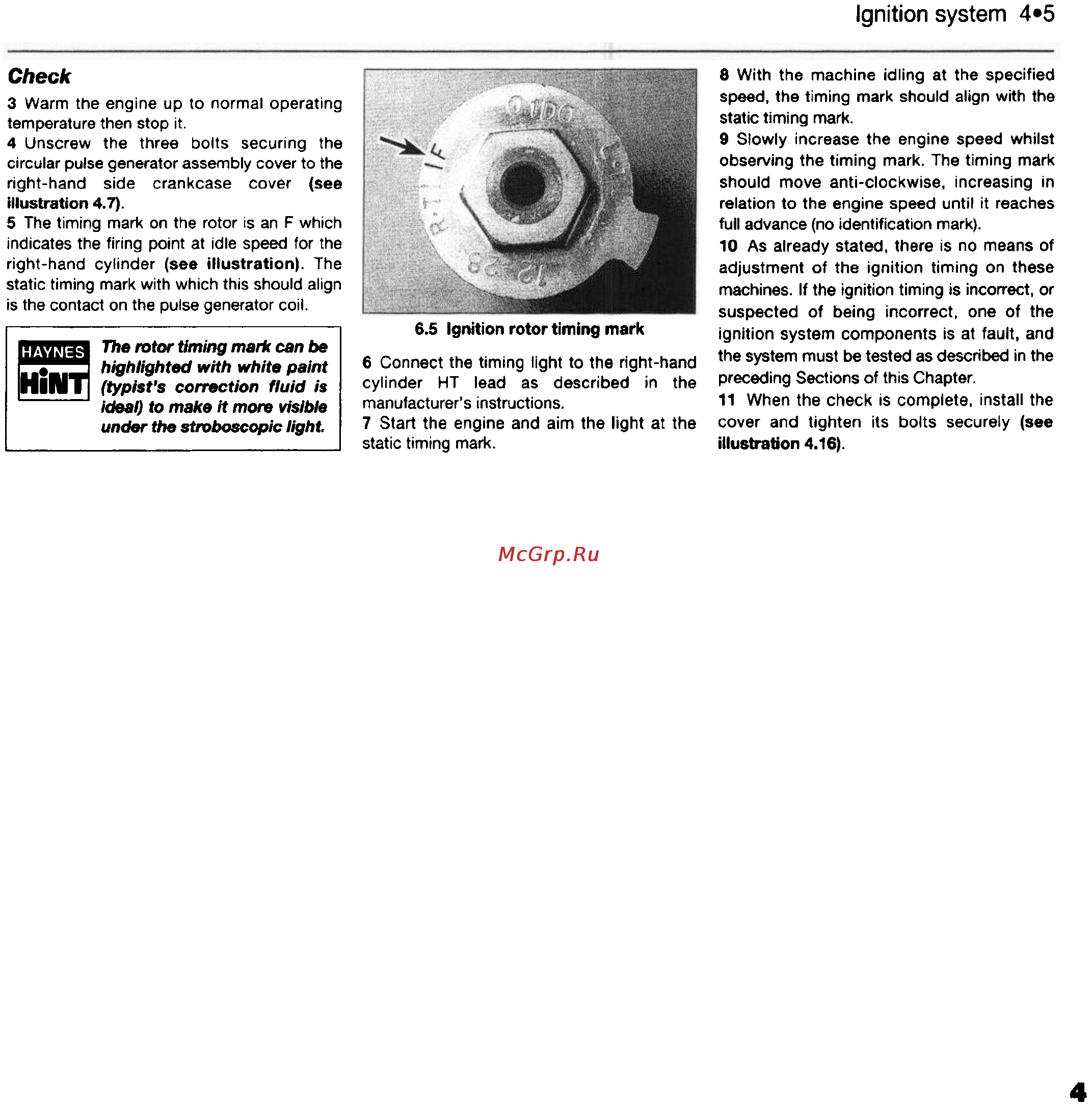

6.5 Ignition rotor timing mark
6 Connect the timing light to the right-hand
cylinder HT lead as described in the
manufacturer's instructions.
7 Start the engine and aim the light at the
static timing mark.
