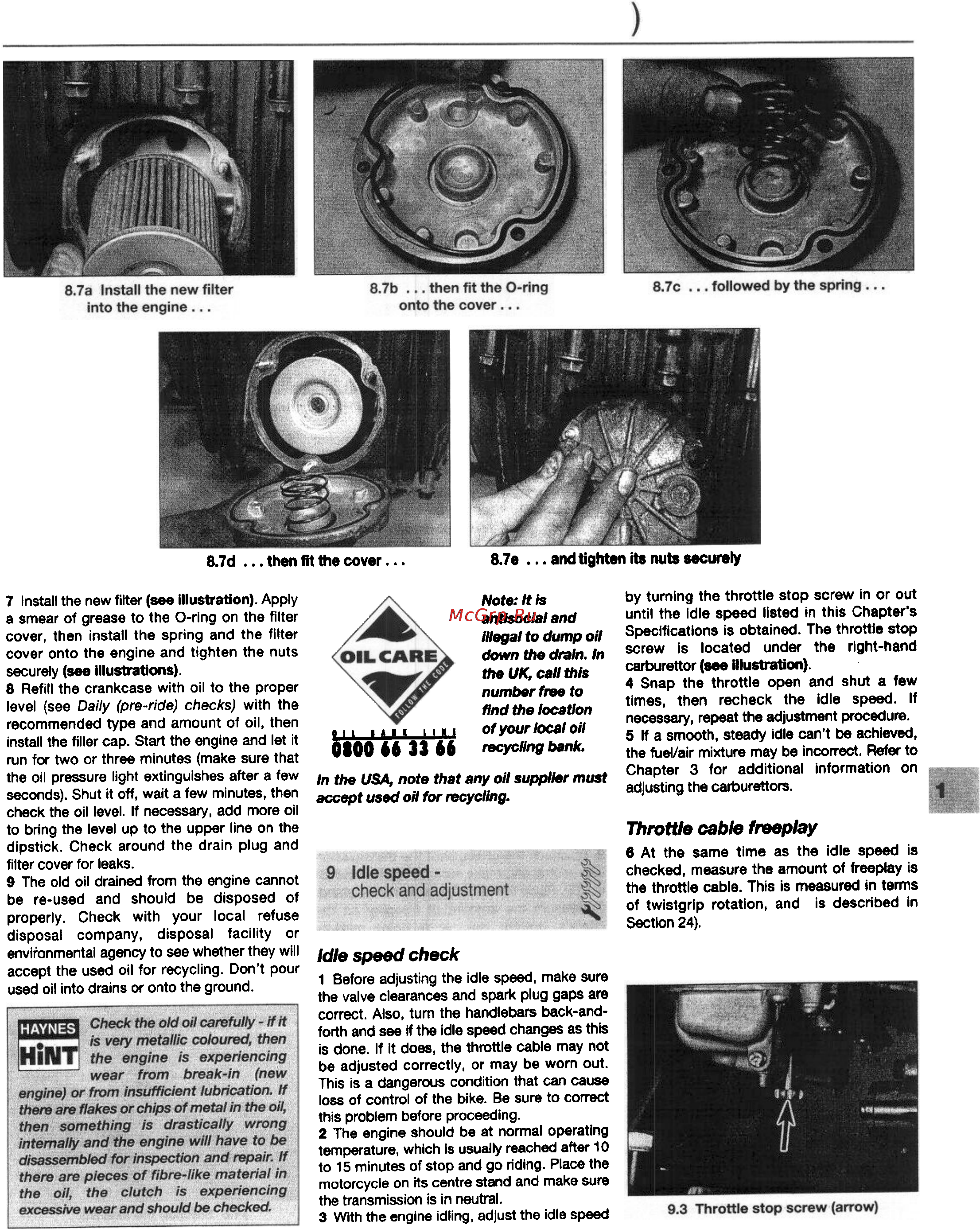

8.7d ... then fit the cover...
7 Install the new filter (see Illustration). Apply
a smear of grease to the O-ring on the fitter
cover, then install the spring and the filter
cover onto the engine and tighten the nuts
securely (see Mlustrations).
8 Refill the crankcase with oil to the proper
level (see Dally (pre-ride) checks) with the
recommended type and amount of oil, then
install the filler cap. Start the engine and let It
run for two or three minutes (make sure that
the oil pressure light extinguishes after a few
seconds). Shut it off, wait a few minutes, then
check the 011 level. If necessary, add more oil
to bring the level up to the upper line on the
dipstick. Check around the drain plug and
filter cover for leaks.
9 The old 011 drained from the engine cannot
be re-used and should be disposed of
property. Check with your local refuse
disposal company, disposal facility or
environmental agency to see whether they will
accept the used oil for recycling. Don't pour
used oil into drains or onto the ground.
tighten its nuts securely
8.78 ... and
by turning the throttle stop screw in or out
until the Idle speed listed in this Chapter's
Specifications is obtained. The throttle stop
screw is located under the right-hand
carburettor (see IIlu8b'atIon).
4 Snap the throttle open and shut a few
times, then recheck the Idle speed. If
necessary, repeat the adjustment procedure.
S If a smooth, steady Idle can't be achieved,
the fueVair mlxtll"e may be incorrect. Refer to
Chapter 3 for additional information on
adjusting the carburettors.
Note: It is
antisocial and
illegal to dump oil
down the drain. In
the UK, call this
number free to
find the location
of your local oil
recycling bank.
. " .,.. 'I. I
0800 66 33 66
In the USA, note that any oil supplier must
accept used oil for recycling.
Throttle cable freepiay
8 At the same time as the idle speed Is
checked, measure the amount of freeplay Is
the throttle cable. This is measured in terms
of twistgrlp rotation, and is described In
Section 24).
Idle speed check
1 Before adjusting the idle speed, make sure
the valve clearances and spark plug gaps are
correct. Also, tum the handlebars back-and-
forth and see if the idle speed changes as this
is done. If It does, the throttle cable may not
be adjusted correctly, or may be worn out.
This is a dangerous condition that can cause
loss of control of the bike. Be sure to cooeot
this problem before proceeding.
2 The engine should be at normal operating
temperature, which is usually reached after 10
to 15 minutes of stop and go riding. Place the
motorcycle on its centre stand and make sure
the transmission Is In neutral.
3 With the engine idling, adjust the Idle speed
