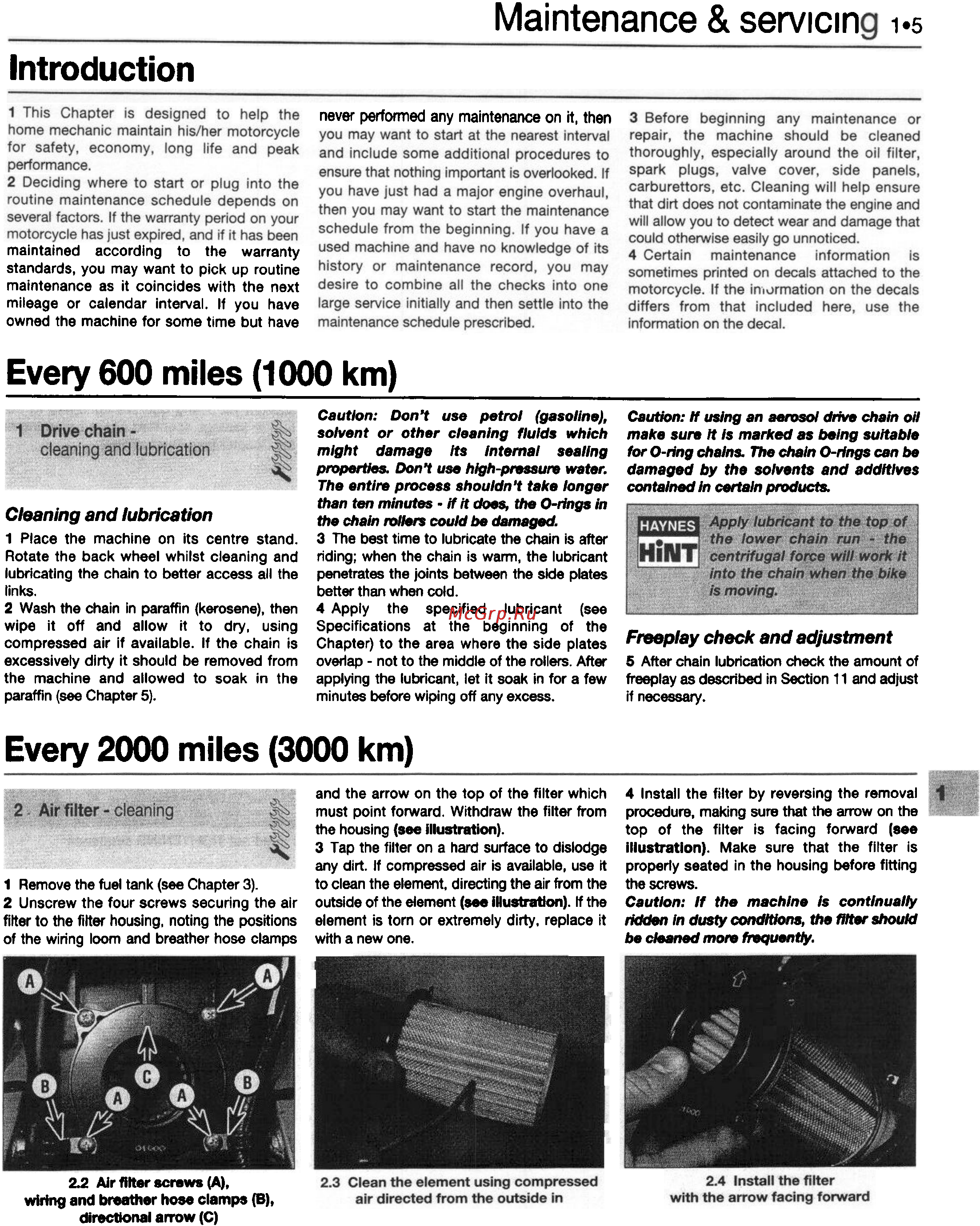

I
uctionntrod
maintained according to the warranty
standards, you may want to pick up routine
maintenance as it coincides with the next
mileage or calendar interval. If you have
owned the machine for some time but have
Every 600 miles (1000 km)
Caution: Don't use petrol (gasoline),
solvent or other cleaning fluids which
might damage Its Internal sealing
properties. Don't use high-pressure water.
The entire process shouldn't take longer
than ten minutes - if it does, the O-rings in
the chain rollers could be damaged.
3 The best time to lubricate the chain is after
riding; when the chain is W8nn. the lubricant
penetrates the joints between the side plates
better than when cold.
4 Apply the specified lubricant (see
Specifications at the beginning of the
Chapter) to the area where the side plates
ovefiap - not to the middle of the rollers. After
applying the lubricant, let it soak in for a few
minutes before wiping off any excess.
Cleaning and lubrication
1 Place the machine on its centre stand.
Rotate the back wheel whilst cleaning and
lubricating the chain to better access all the
links.
2 Wash the chain in paraffin (kerosene), then
wipe it off and allow it to dry, using
compressed air if available. If the chain is
excessively dirty it should be removed from
the machine and allowed to soak in the
paraffin (see Chapter 5).
Every 2000 miles (3000 km)
1 Remove the fuel tank (see Chapter 3).
2 Unscrew the four screws securing the air
filter to the filter housing, noting the positions
of the wiring loom and breather hose clamps
2.2 Air filter screws (A),
wiring and breather hose clamps (B),
directional arrow (C)
Maintenance & servlcln
1-5
never perfom1ed any maintenance on it, then
Caution: " using an aerosol drive chain 011
make sure n Is marked as being sunable
for O-ring chains. The chain O-rings can be
damaged by the solvents and addnlves
contained In certain products.
Freep/ay check and adjustment
5 After chain lubrication check the amount of
freepiay as described in Section 11 and adjust
if necessary.
and the arrow on the top of the filter which
must point forward. Withdraw the filter from
the housing (see Ulustration).
3 Tap the filter on a hard surface to dislodge
any dirt. If compressed air is available, use It
to clean the element. directing the air from the
outside of the element (seeIUustration). If the
element is tom or extremely dirty. replace it
with a new one.
4 Install the filter by reversing the removal
procedure, making sure that the arrow on the
top of the filter is facing forward (a..
illustration). Make sure that the filter is
property seated in the housing before fitting
the screws.
CautIon: If the machIne Is contInually
ridden in dusty conditions, the filter should
be c#Nned more f,.quently.
