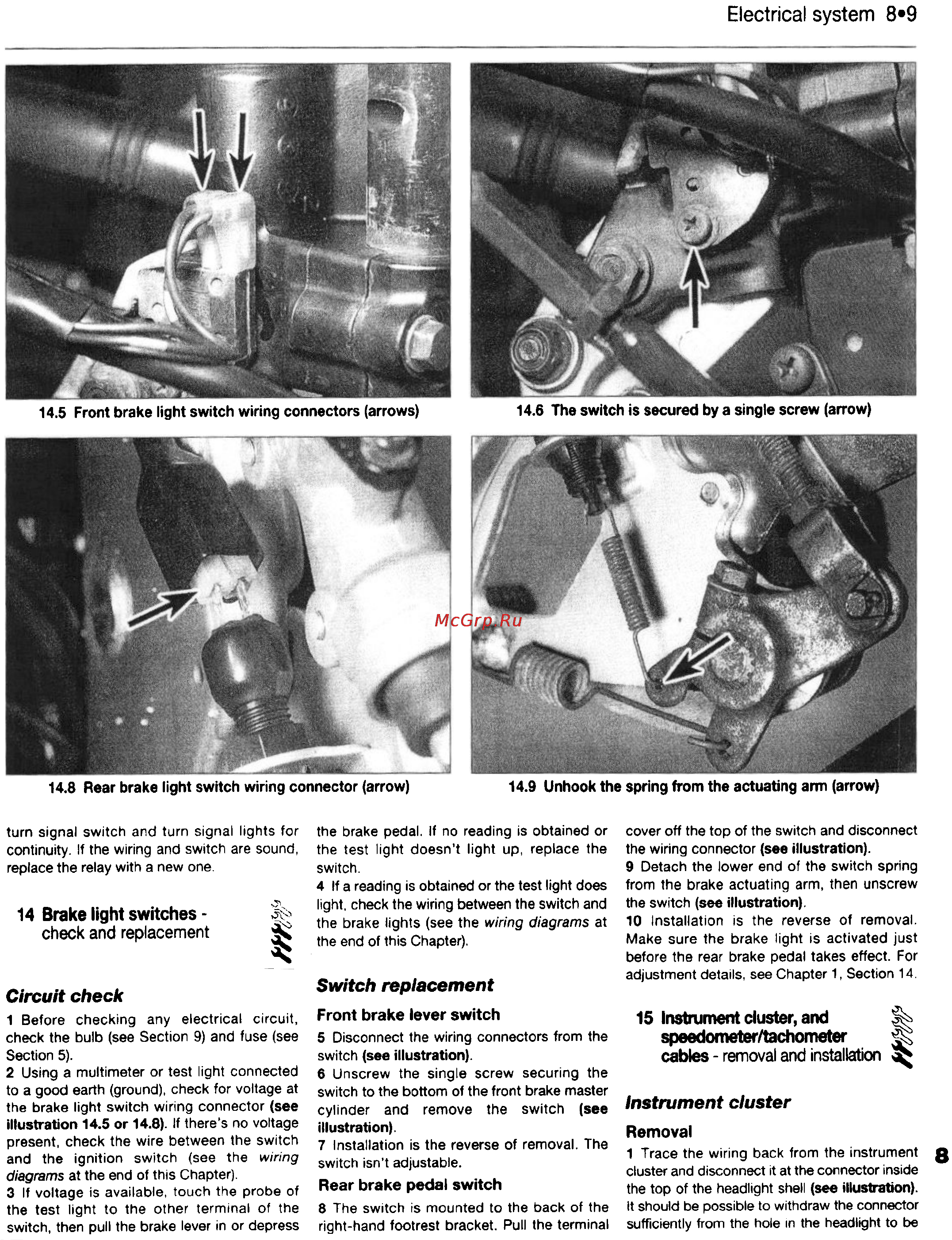

14.5 Front brake light switch wiring connectors (arrows)
14.8 Rear brake light switch wiring connector (arrow)
turn signal switch and turn signal lights for
continuity. If the wiring and switch are sound,
replace the relay with a new one.
14 Brake light switches - ~
check and replacement ~
~,
,)',~)
~
~
Circuit check
1 Before checking any electrical circuit,
check the bulb (see Section 9) and fuse (see
Section 5).
2 Using a multimeter or test light connected
to a good earth (ground), check for voltage at
the brake light switch wiring connector (...
Illustration 14.5 or 14.8). If there's no voltage
present, check the wire between the switch
and the ignition switch (see the wiring
diagrams at the end of this Chapter).
3 If voltage is available. touch the probe of
the test light to the other terminal of the
switch, then pull the brake lever in or d~
Electrical system 8-9
14.6 The switch is secured by a single screw (arrow)
14.9 Unhook the spring from the actuating arm (arrow)
the brake pedal. If no reading is obtained or
the test light doesn't light up, replace the
switch.
4 If a reading is obtained or the test light does
light. check the wirW)g between the switch BOO
the brake lights (see the wiring diagrams at
the end of this Chapter).
cover off the top of the switch and disconnect
the wiring connector (see illustr8t1on).
8 Detach the lower end of the switch spring
from the brake actuating arm, then unscrew
the switch (see Uh8tI'8tion).
10 Installation is the reverse of removal.
Make sure the brake light is activated just
before the rear brake pedal takes effect. For
adjustmer1t details. see Chapter 1, Section 14.
Switch replacement
Front brake lever switch
15 Insb'ument cluster, and
speed~ /tachometer
cables - removal and installatioo
~
~
~
5 Disconnect the wiring connectors from the
switch (see illuab'atlon).
8 Unscrew the single screw securing the
switch to the bottom of the front brake master
cylinder and remove the switch (see
illustration).
7 Installation is the reverse of removal. The
switch isn't adjustable.
Rear brake pedal switch
8 The switch is mounted to the back of the
right-hand footrest bracket. Pull the terminal
Instrument cluster
Removal
1 Trace the wiring back from the instrument 8
cIust.. and disconnect it at the coonector inside
the ~ of the headlight sheI c... ""--"-0».
It should be possible to withdraw the connector
sufticientIy from the hole in the he8dMght to be
