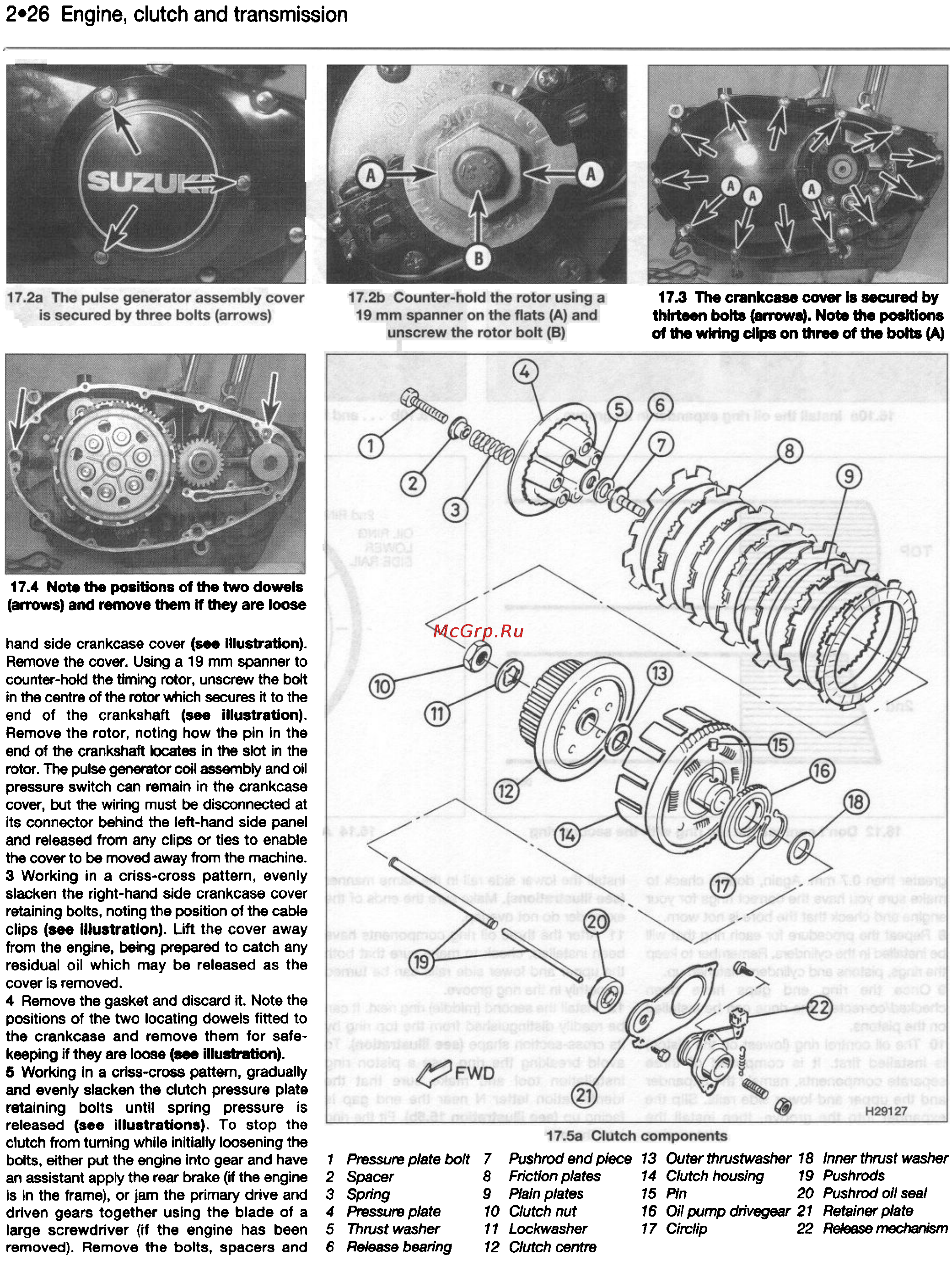

2-26 Engine, clutch and transmission
17.4 Note the positions of the two dowels
(an'Ows) and remove them if they are loose
hand side crankcase cover (see illustration).
Remove the COY«. Using a 19 mm spanner to
counter-hold the tflnlng rotor, unscrew the bolt
in the centre of the rotor which secures it to the
end of the crankshaft (s.. illustration).
Remove the rotor, noting how the pin In the
end of the crankshaft ~es in the slot In the
rotor. The pulse ~r coil assembly and oil
pressure switch can remain In the crankcase
cover, but the wiring must be disconnected at
its connector behind the left-hand side panel
and released from any clips or ties to enable
the cover to be moved away from the machine.
3 Working in a criss-cross pattern, evenly
slacken the right-hand side crankcase cover
retaining bolts, noting the position of the cable
clips (see Illustration). Ufl the cover away
from the engine, being prepared to catch any
residual oil which may be released as the
cover Is removed.
4 Remove the gasket and discard It. Note the
positions of the two locating dowels fitted to
the crankcase and remove them for safe-
keeping If they are loose (8M illu8b'8tion).
5 Working In a criss-cross pattern, gradually
and evenly slacken the clutch pressure plate
retaining bolts until spring pressure Is
released (see illustrations). To stop the
clutch from turning while Initially loosening the
bolts, either put the engine Into gear and have
an assistant apply the rear brake (If the engine
is In the frame), or jam the primary drive and
driven gears together using the blade of a
large screwdriver (If the engine has been
removed). Remove the bolts, spacers and
17.3 The crankcase cover is secured by
thirteen bolts (arrows). Note the positions
of the wiring clips on three of the bolts (A)
1 Pressure plate bolt
2 Spacer
3 Spring
4~p/8te
5 ThnIst washer
6 R8#88Se besrlng
7 Pushrod end piece 13 Outer throstwssher 18 Inner throstwaher
8 Friction plates '. 14 Clutch housing 19 Pu8hrods
9 Pls/n plates 15 PIn 20 Pushrod oil s8&I
10 Clutch nut 16 ON pump drfVegesr 2'1 RetaIner pIete
11 LocIcwasher 17 Cftdfp 22 R-.. ~
12 Clutch centre
