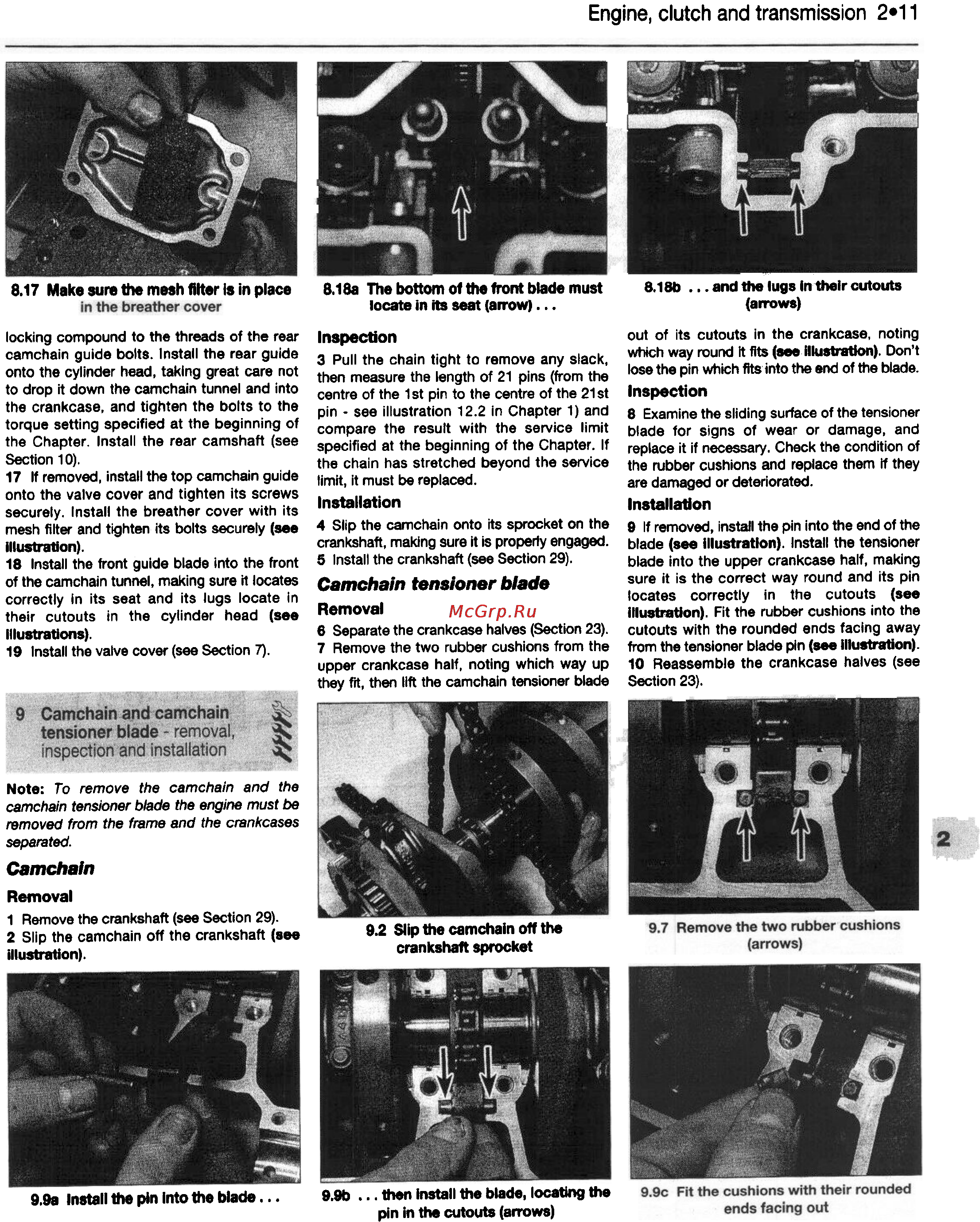

Suzuki GS500E (1989-1997) [46/221] Camchain tensioner blade removal
![Suzuki GS500E (1989-1997) [46/221] Camchain tensioner blade removal](/views2/1121322/page46/bg2e.png)
8.17 Make sure the mesh filter Is in place 8.188 The bottom of the front blade must
locking compound to the threads of the rear
camchain guide bolts. Install the rear guide
onto the cylinder head, taking great care not
to drop it down thecarnchain tunnel and into
the crankcase, and tighten the bolts to the
torque setting specified at the beginning of
the Chapter. Install the rear camshaft (see
Section 10).
17 If removed, install the top camchain guide
onto the valve cover and tighten its screws
securely. Install the breather cover with its
mesh filter and tighten its bolts securely (see
IIklSb'8tlon) .
18 Install the front guide blade into the front
of the carnchain tunnel, making sure it locates
correctly in its seat and its lugs locate in
their cutouts In the cylinder head (a..
lIIustratlona) .
19 Install the valve cover (see Section 7).
Note: To remove the camcha/n and the
camcha/n tensioner blade the engine must be
removed from the freme and the crenkcases
separated.
Camchaln
Removal
1 Remove the crankshaft (see Section 29).
2 Slip the camchain off the crankshaft (...
illustration).
9.9a Install the pin Into the blade. . .
Engine, clutch and transmission 2-11
a.18b ... and the lugs In their cutouts
(arrows)
out of its cutouts in the crankcase, noting
which way round it fits (.-illustratlon).. Don't
lose the pin which fitsinto the end of the blade.
InSpection
8 examine the sliding surface of the tensloner
blade for signs of wear or damage, and
replace it if necessary. Check the condition of
the rubber cushions and replace them If they
are damaged or deteriorated.
Instanatlon
9 If removed, install the pin into the end of the
blade (see illustratIon). Install the tensloner
blade into the upper crankcase half, making
sure it is the correct way round and its pin
locates correctly in the cutouts (see
IlIusntion). Fit the rubber cushions into the
cutouts with the rounded ends facing away
from thetensloner blade pin (see lIhJ8tr8tion).
10 Reassemble the crankcase halves (see
Section 23).
locate in Its seat (arrow) . . .
Inspection
3 Pull the chain tight to remove any slack,
then measure the length of 21 pins (from the
centre of the 1 st pin to the centre of the 21 st
pin - see Illustration 12.2 In Chapter 1) and
compare the result with the service limit
specified at the beginning of the Chapter. If
the chain has stretched beyond the service
limit, it must be replaced.
Installation
4 Slip the camchaln onto Its sprocket on the
crankshaft, making sure It Is properly engaged.
5 Install the crankshaft (see SectIon 29).
Camchain tensioner blade
Removal
6 Separate the crankcase halves (Section 23).
7 Remove the two rubber cushions from the
upper crankcase half, noting which way up
they fit, then 11ft the oamohain tensiOner blade
9.2 Slip the camchain off the
crankshaft sprocket
9.9b ... then Install the blade, locating the
pin in the cutouts (arrows)
