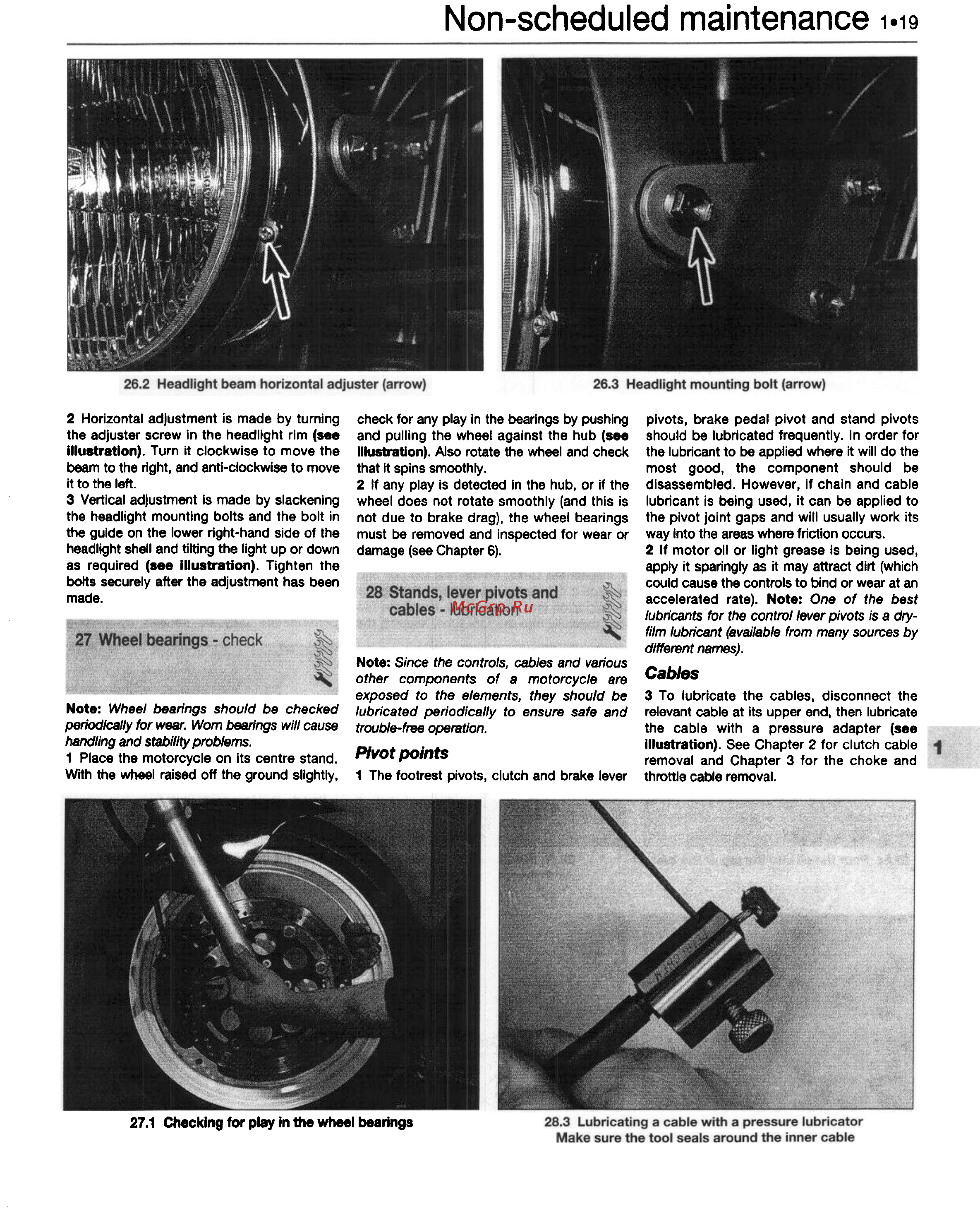

2 Horizontal adjustment is made by turning
the adjuster screw in the headlight rim (see
illustration). Turn it clockwise to move the
beam to the right, and anti-clockwlse to move
it to the left.
3 Vertical adjustment is made by slackening
the headlight mounting bolts and the bolt in
the guide on the lower right-hand side of the
headlight shell and tilting the light up or down
as required (see Illustration). Tighten the
bolts securely after the adjustment has been
made.
~~~
Note: Wheel bearings should be checked
periodically for weer. Worn bearings will cause
handling and stability problems.
1 Place the motorcycle on its centre stand.
With the wheel rai8ed off the ground slightly,
~~~~~~
27.1 Checking for play in the wheel bearings
~
Non-scheduled maintenance 1-19
pivots, brake pedal pivot and stand pivots
should be lubricated frequently. In order for
the lubricant to be applied where It will do the
most good, the component should be
disassembled. However, If chain and cable
lubricant Is being used, it can be applied to
the pivot joint gaps and will usually work its
way Into the areas where friction occurs.
2 If motor 011 or l.ightgrease Is being used,
apply It sparingly as It may attr$ctdirt (which
could cause the controls to bind or wear at an
accelerated rate). Note: One of the best
lubricants for the control lever pivots is a dry-
film lubricant (available from many sources by
diffef8nt names).
Cables
3 To lubricate the cables, disconnect the
relevant cable at its upper end, then lubricate
the cable with a pressure adapter (see
Illustration). See Chapter 2 for clutch cable
removal and Chapter 3 for the choke and
throttle cable removal.
check for any play in the bearings by pushing
and pulling the wheel against the hub (...
Illustration). Also rotate the wheel and check
that it spins smoothly.
2 If any play is detected In the hub, or If the
wheel does not rotate smoothly (and this is
not due to brake drag), the wheel bearings
must be removed and inspected for wear or
damage (see Chapter 6).
Note: Since the controls, cables and various
other components of a motorcycle 8/'8
exposed to the elements, they should be
lubricated periodically to ensure safe 8nd
troub/e-f18e opemtion.
Pivot points
1 The footrest pivots, clutch and brake lever
