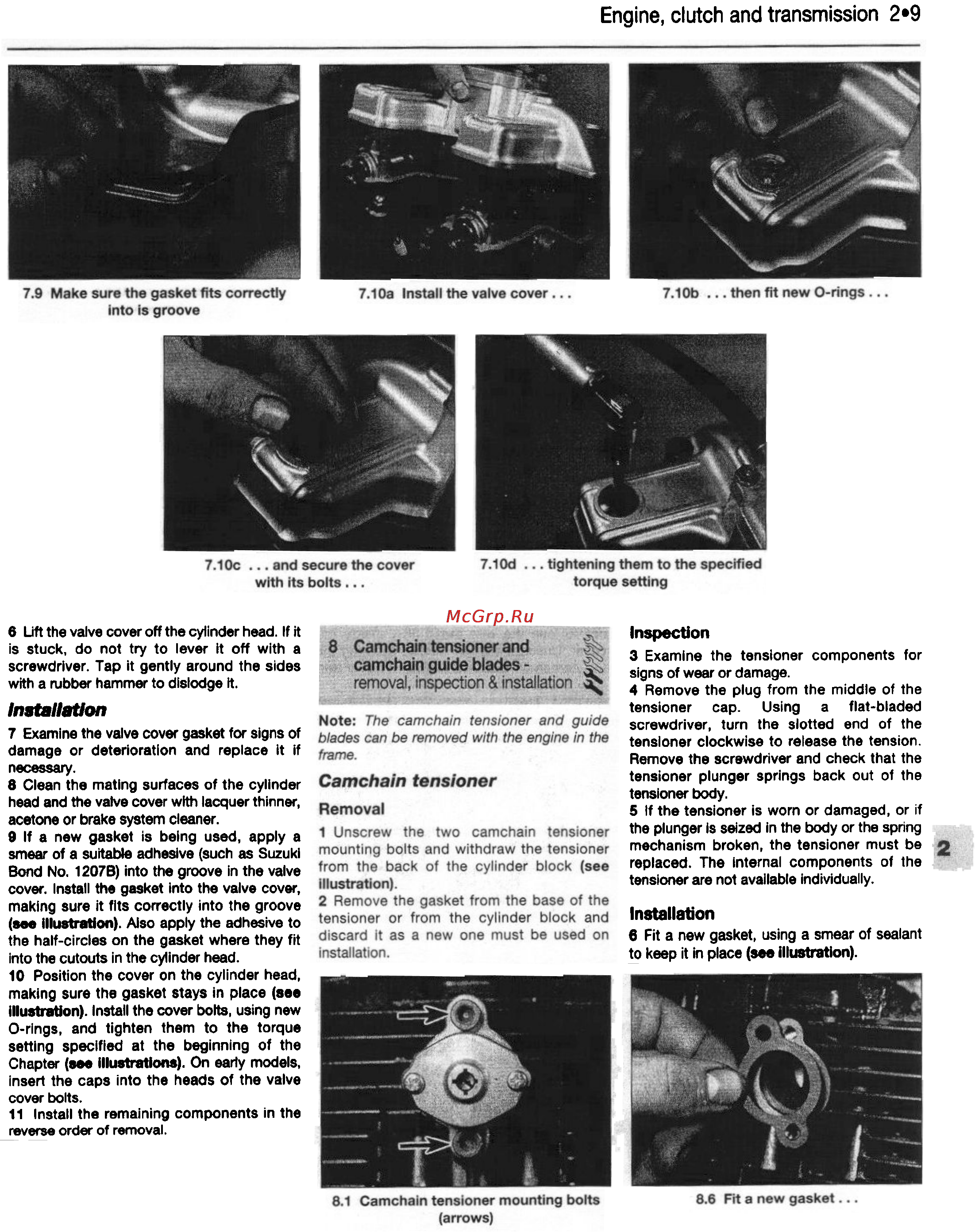

8 un the v8/Y8 OOYW off the cylinder heed. If It
is stuck, do not try to lever It oft with a
screwdriver. Tap It gently around the sides
with a rubber ham,,*, to dislodge It.
Installation
7 Examine the valve covw gasket for signs of
damage or deterioration 8nd replace It If
necessary.
8 Clean the mating surfaces of the cylinder
heed and the v8/Y8 covw with lacquer thlnn.-.
acetone or brake system cleaner.
8 If a new gasket is being used, apply a
smear of a sult8ble adhesive (such . Suzuki
Bond No. 12078) k1to the groove i1 the valve
cover. Install the gasket into the valve cover,
making sure it fits correctly Into the groove
(Me I~). Also apply the adhesive to
the half-circles on the gasket where they fit
Into the cutouts in the cylinder head.
10 Position the cover on the cylinder head,
making sure the gasket stays in place (Me
11IU8tr8tIon). Install the cover bolts, using new
O-rings, and tighten them to the torque
setting specified at the beginning of the
Chapter (Me 1Ik-~ ). On e8rIy models.
Insert the caps Into the heads of the valve
covw bolts.
11 Install the remaining components in the
rev.- order of removal.
Engine, clutch and transmission 2-9
1..ap& tIon
3 Examine the tensioner components for
signs of wear or damage.
4 Remove the plug from the middle of the
tensioner cap. Using a flat-bladed
screwdriver, turn the slotted end of the
tensloner clockwise to release the tension.
Remove the screwdriver and check that the
tensloner plunger springs back out of the
tenslooer body.
5 If the tensioner Is worn or damaged, or if
the plunger Is seized in the body or the spring
mechanism broken, the tensioner must be
replaced. The Internal components of the
t«IsIoo8r .. not ~ ~u8Iy.
Installation
8 Fit a new gasket. using a smear of sealant
to keep It In place (see M'u8tr8tion).
