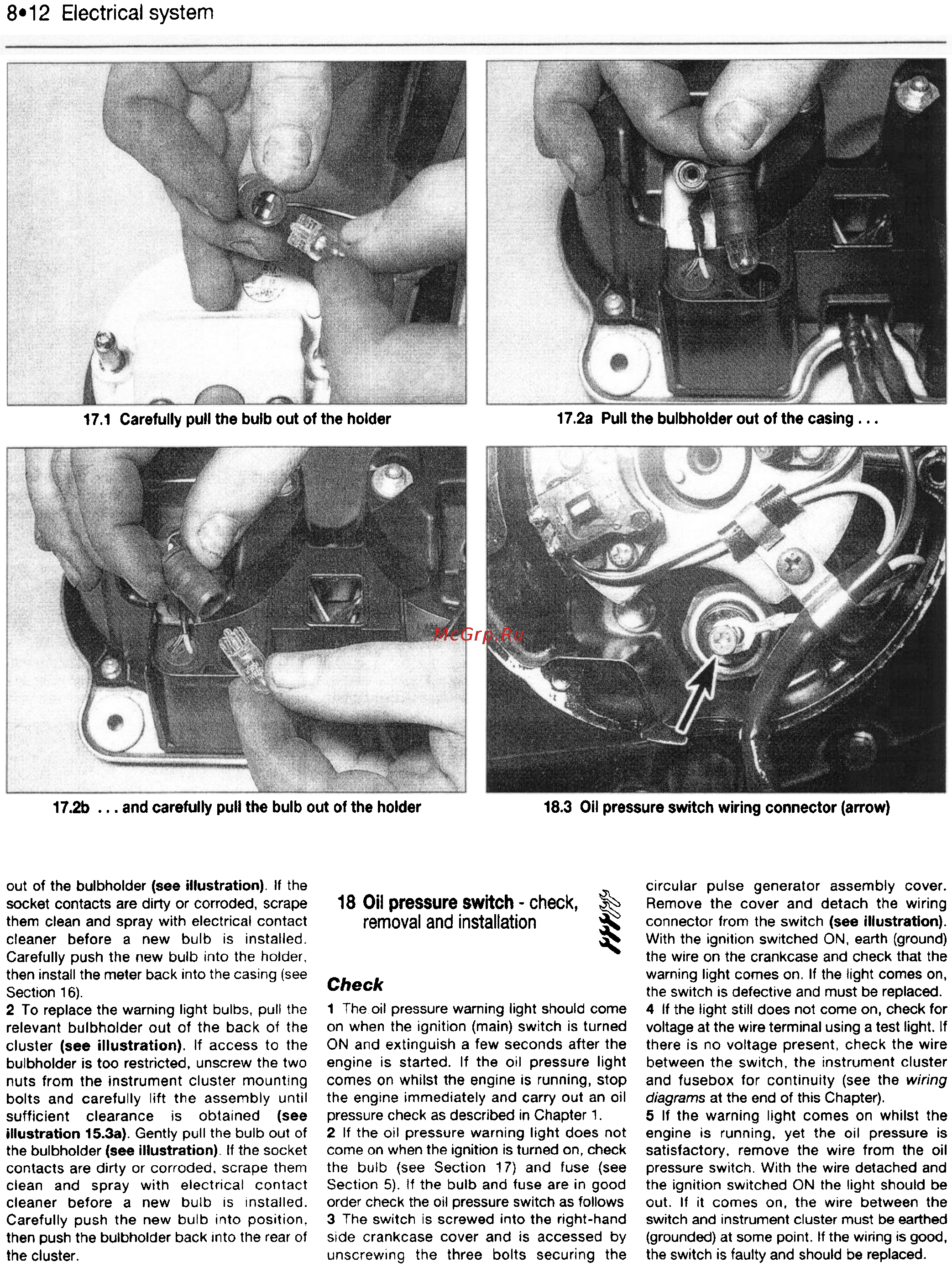

8- 12 Electrical system
17.1 Carefully pull the bulb out of the holder
17.2b ... and carefully pull the bulb out of the holder
out of the bulbholder (see illustration). If the
socket contacts are dirty or corroded, scrape
them clean and spray with electrical contact
cleaner before a new bulb is installed.
Carefully push the new bulb into the holder.
then install the meter back into the casing (see
Section 16).
2 To replace the waming light bulbs, pull the
relevant bulbholder out of the back of the
cluster (see illustration). If access to the
bulbholder is too restricted, unscrew the two
nuts from the instrument cluster mounting
bolts and carefully lift the assembly until
sufficient clearance is obtained (see
illustration 15.38). Gently pull the bulb out of
the bulbholder (see illustration). If the socket
contacts are dirty or corroded, scrape them
clean and spray with electrical contact
cleaner before a new bulb is installed.
Carefully push the new bulb into position.
then push the bulbholder back into the rear of
the cluster.
17.2a Pull the bulbholder out of the casing. . .
18.3 Oil pressure switch wiring connector (arrow)
circular pulse generator assembly cover.
Remove the cover and detach the wiring
connector from the switch (see illustratIon).
Wrth the ignition switched ON, earth (ground)
the wire on the crankcase and check that the
warning light comes on. If the light comes on,
the switch is defective and must be replaced.
4 If the light still does not come on, check for
voltage at the wire terminal using a test light. If
there is no voltage present, check the wire
between the switch, the instrument cluster
and fusebox for continuity (see the wiring
diagrams at the end of this Chapter).
5 If the warning light comes on whilst the
engine is running, yet the 011 pressure is
satisfactory, remove the wire from the 011
pressure switch. With the wire detached and
the ignition switched ON the light should be
out. If it comes on, the wire between the
switch and instrument cluster must be earthed
(grounded) at some point. If the wiring is good,
the switch is faulty and should be replaced.
~
~
~
18 Oil pressure switch - check,
removal and installation
Check
1 The oil pressure warning light should come
on when the ignition (main) switch is turned
ON and extinguish a few seconds after the
engine is started. If the oil pressure light
comes on whilst the engine is running, stop
the engine immediately and carry out an 011
pressure check as described in Chapter 1.
2 If the oil pressure warning light does not
come on when the ignition is turned on, check
the bulb (see Section 17) and fuse (see
Section 5). If the bulb and fuse are in good
order check the oil pressure switch as follows
3 The switch is screwed into the right-hand
side crankcase cover and is accessed by
unscrewing the three bolts securing the
