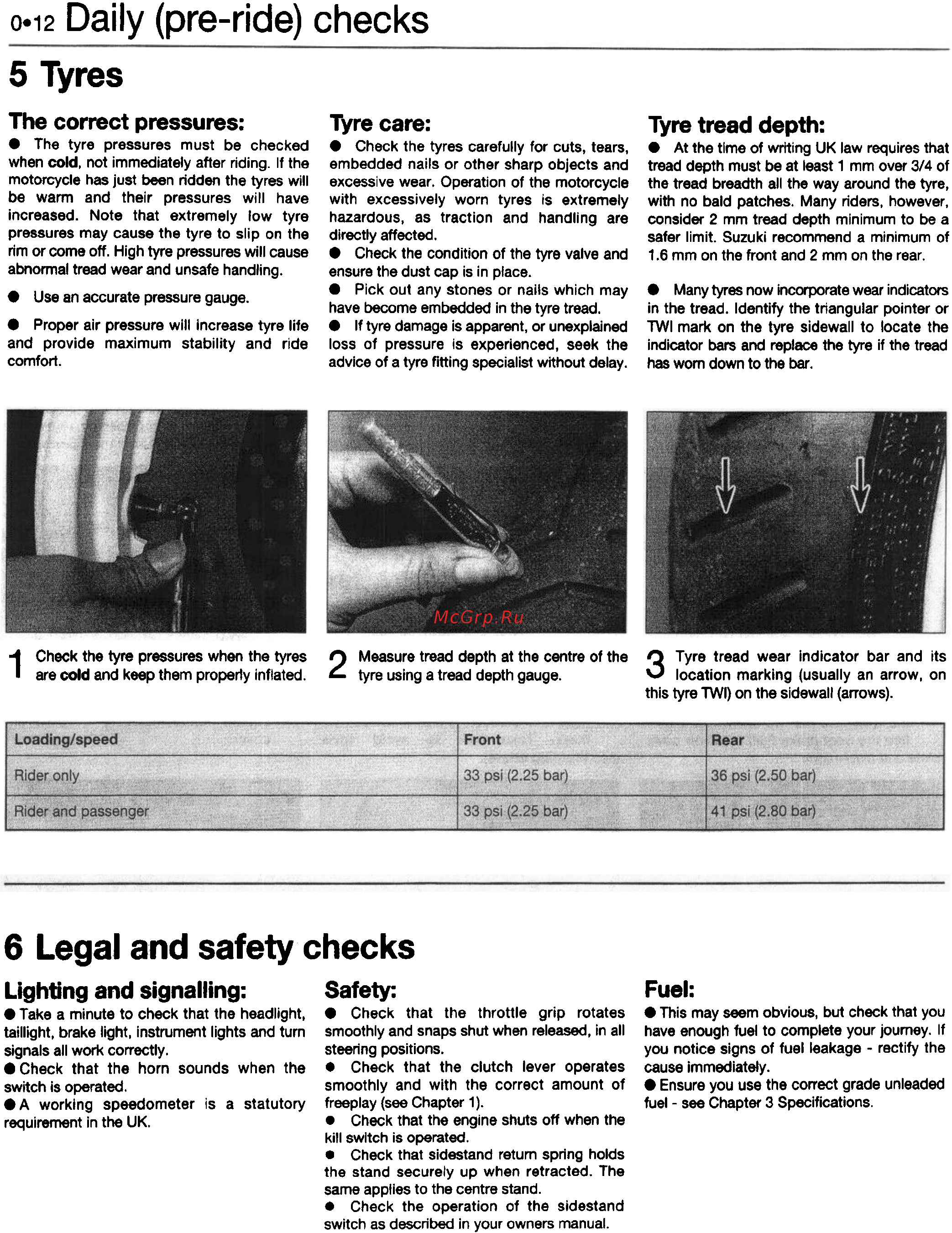

Daily (pre-ride) checks
0-12
5 Tyres
The correct pressures: Tyre care:
. The tyre pressures must be checked. Check the lyres carefully for cuts, tears,
when cold, not immediately after riding. If the embedded nails or other sharp objects and
motorcycle has just been ridden the tyres will excessive wear. Operation of the motorcycle
be warm and their pressures will have with excessively worn lyres is extremely
increased. Note that extremely low tyre hazardous, as traction and handling are
pressures may cause the lyre to slip on the directly affected.
rim or come off. High tyre pressures will cause. Check the condition of the lyre valve and
abnormal tread wear and unsafe handling. ensure the dust cap is in place.
. U t . Pick out any stones or nails which may
S8 an accura epressure gauge. have become embedded in the lyre tread.
. Pro~r air pressure will Incresse tyre life. If tyre damage is apparent, or unexplained
and provide maximum stability and ride loss of pressure is experienced, seek the
comfort. advice of a lyre fitting specialist without delay.
Check the tyre pressures when the tyres
2 Measure tread depth at the centre of the
are cold and keep them property inflated. tyre using a tread depth gauge.
1
6 Legal and safety checks
Lighting and signalling:
. Take a minute to check that the headlight,
taillight, brake light, instrument lights and turn
signals all work correctly.
. Check that the horn sounds when the
switch is operated.
. A working speedometer is a statutory
requirement in the UK.
l'yre tread depth:
. At the time of writing UK law requires that
tread depth must be at least 1 mm over 3/4 of
the tread breadth all the way around the tyre.
with no bald patches. Many riders, however.
consider 2 mm tread depth minimum to be a
safer limit. Suzuki recommend a minimum of
1.6 mm on the front and 2 mm on the rear.
. Many tyres now Incorporate wear Indicators
In the tread. Identify the triangular pointer or
TWI mark on the tyre sidewall to locate the
indicator bin and replace the tyre if the tread
has worn down to the bar.
3 Tyre tread wear Indicator bar and its
location marking (usually an arrow. on
this tyre TW1) on the sidewall (arrows).
Fuel:
. This may seem obvious, but check that you
have enoogh fuel to complete your journey. If
you notice signs of fuel leakage - rectify the
cause immediately.
. Ensure you use the correct grade unleaded
fuel - see Chapter 3 Specifications.
Safety:
. Check that the throttle grip rotates
smoothly and snaps shut when released, In all
steering positions.
. Check that the clutch lever operates
smoothly and with the correct amount of
freeplay (see Chapter 1).
. Check that the engine shuts off when the
kill switch Is operated.
. Check that sldestand return spring holds
the stand securely up when retracted. The
same applies to the centre stand.
. Check the operation of the sidestand
switch as described In your owners manual.
