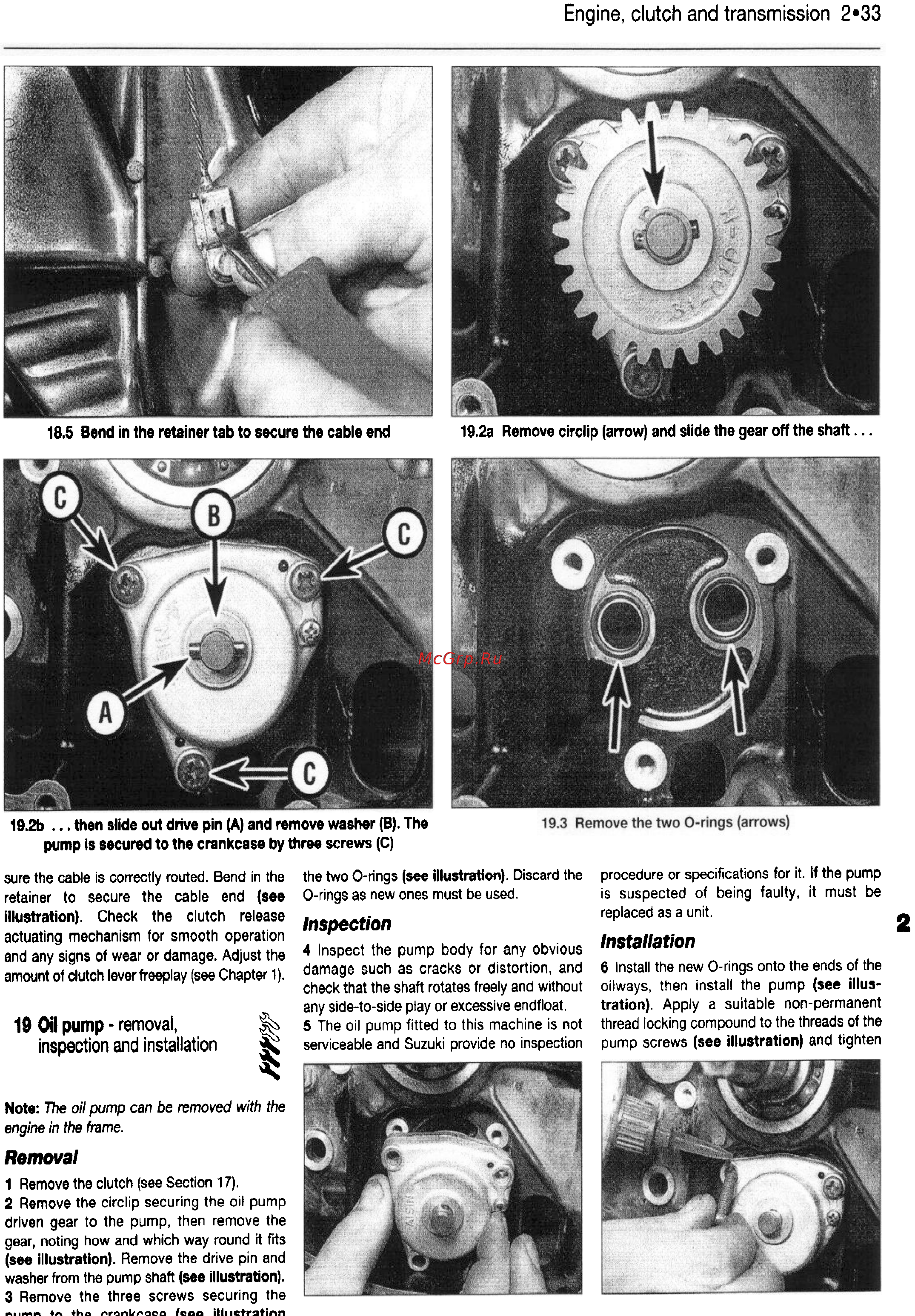

18.5 Bend in the retainer tab to secure the cable end
19.2b ... then slide out drive pin (A) and remove washer (8). The
pump is secured to the crankcase by three screws (C)
sure the cable is correctly routed. Bend in the
retainer to secure the cable end (a..
illustration). Check the clutch release
actuating mechanism for smooth operation
and any signs of wear or damage. Adjust the
amount of clutch lever freeplay (see Chapter 1).
19 Oil pump - removal,
inspection and installation
Note: The ai/ pump can be removed with the
engine in the frame.
Removal
1 Remove the clutch (see Section 17).
2 Remove the clrcllp securing the 011 pump
driven gear to the pump, then remove the
gear, noting how and which way round it fits
(see illustration). Remove the drive pin and
washer from the pump shaft (see Illustration).
3 Remove the three screws securing the
"",m... tl'\ thA ,.rgnlt,.g~~ IQ~~ ilhl~tratlnn
Engine, clutch and transmission 2-33
19.28 Remove circlip (arrow) and slide the gear off the shaft. . .
procedure or specifications for it. If the pump
is suspected of being faulty. it must be
replaced as a unit.
Installation
6 Install the new O-rings onto the ends of the
oilways. then install the pump (see illus-
tration). Apply a suitable non-permanent
thread locking compound to the threads of the
pump screws (see illustration) and tighten
the two O-rings (see illustration). Discard the
O-rings as new ones must be used.
Inspection
4 Inspect the pump body for any obvious
damage such as cracks or distortion, and
check that the shaft rotates freely and without
any slde-to-side play or excessive endfloat.
5 The oil pump fitted to this machine is not
serviceable and Suzuki provide no inspection
2
~
~
~
~
