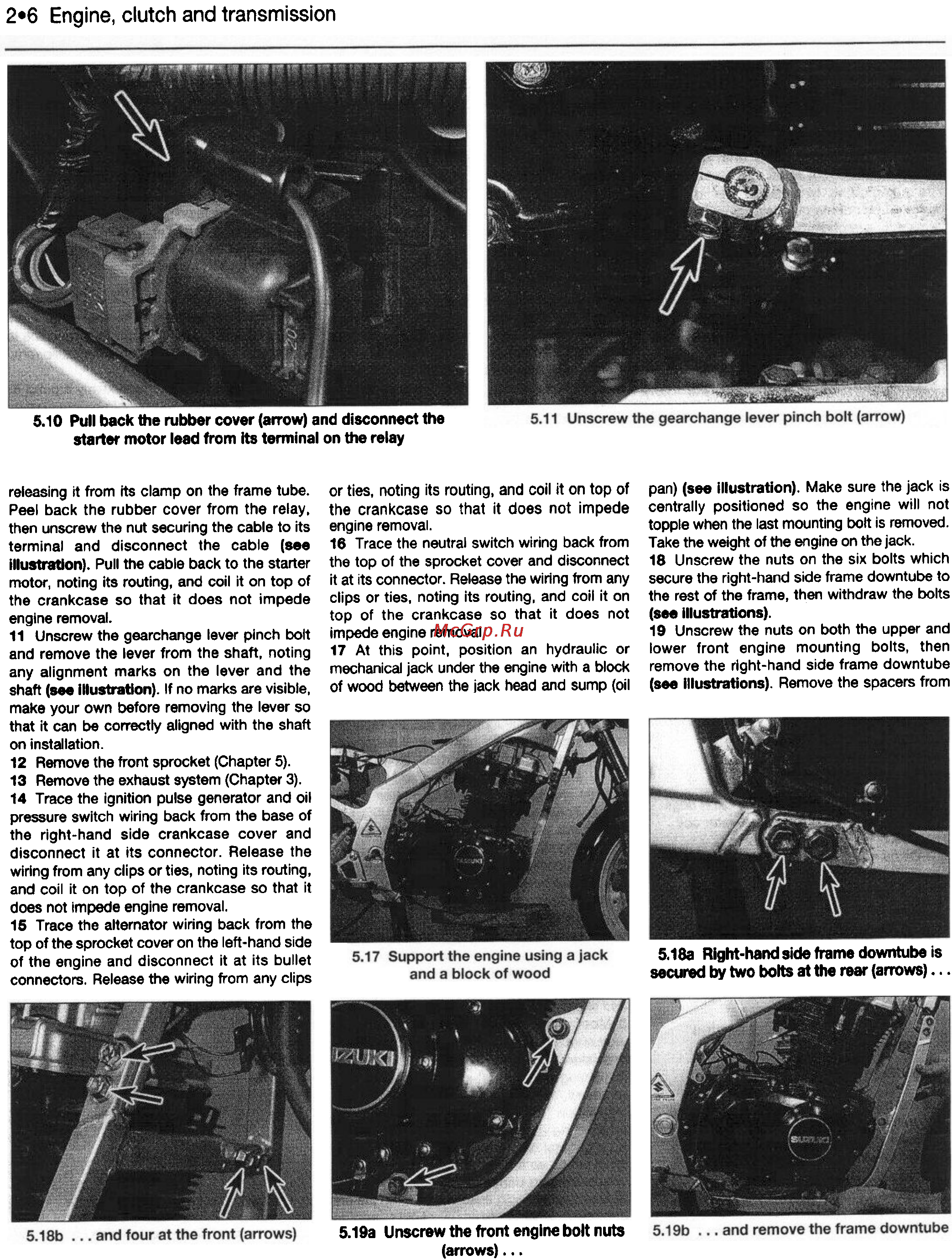

2-6 Engine, clutch and transmission
5.10 Pull back the rubber cover (arrow) and disconnect the
starter motor lead from Its terminal on the relay
releasing it from Its clamp on the frame tube.
Peel back the rubber cover from the relay,
then unscrew the nut securing the cable to Its
terminal and disconnect the cable (see
IlIu8tr8tion). Pull the cable back to the starter
motor, noting its routing, and coil it on top of
the crankcase so that it does not impede
engine removal.
11 Unscrew the gearchange lever pinch bolt
and remove the lever from the shaft, noting
any alignment marks on the lever and the
shaft (see lIustration). If no marks are visible,
make your own before removing the lever so
that it can be correctly aligned with the shaft
on installation.
12 Remove the front sprocket (Chapter 5).
13 Remove the exhaust system (Chapter 3).
14 Trace the ignition pulse generator and oil
pressure switch wiring back from the base of
the right-hand side crankcase cover and
disconnect it at its connector. Release the
wiring from any clips or ties, noting Its routing,
and coil it on top of the crankcase so that it
does not Impede engine removal.
16 Trace the alternator wiring back from the
top of the sprocket cover on the left -hand side
of the engine and disconnect it at its bullet
connectors. Release the wiring from any clips
pan) (S88 Illustration). Make sure the jack is
centrally positioned so the engine will not
topple when the last mounting bolt Is removed.
Take the weight of the engine on the jack.
18 Unscrew the nuts on the six bolts which
secure the right-hand side frame downtube to
the rest of the frame. then withdraw the bolts
(see Illustrations).
19 Unscrew the nuts on both the upper and
lower front engine mounting bolts, then
remove the right-hand side frame downtube
(see Illustrations). Remove the spacers from
or ties, noting its routing, and coil it on top of
the crankcase so that It does not Impede
engine removal.
18 Trace the neutral switch wiring back from
the top of the sprocket cover and disconnect
it at its connector. Release the wiring from any
clips or ties, noting its routing, and coil it on
top of the crankcase so that it does not
impede engine removal.
17 At this point, position an hydraulic or
mechanical jack under the engine with a block
of wood between the jack head and sump (oil
side frame downtube is
5.18a Right-hand
secured by two bolts at the rear (arrows) . . .
5.19a Unscrew the front engine
(arrows) . . .
bolt nuts
