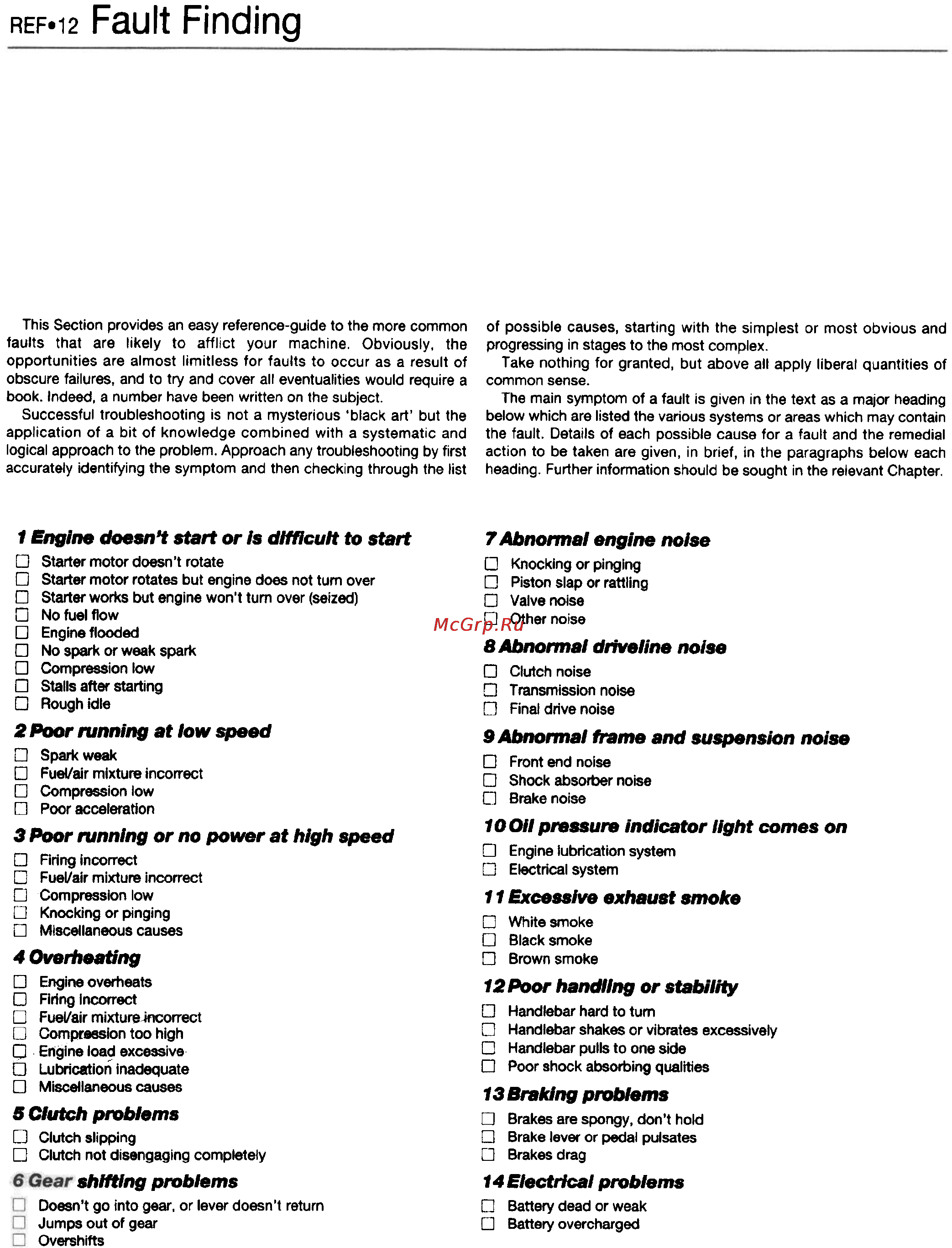

REF.12 Fault Finding
This Section provides an easy reference-guide to the more common
faults that are likely to afflict your machine. Obviously, the
opportunities are almost limitless for faults to occur as a result of
obscure failures, and to try and cover all eventualities would require a
book. Indeed, a number have been written on the subject.
Successful troubleshooting is not a mysterious 'black art' but the
application of a bit of knowledge combined with a systematic and
logical approach to the problem. Approach any troubleshooting by first
accurately identifying the symptom and then checking through the list
1 Engine doesn't start or Is difficult to start
0 Starter motor doesn't rotate
0 Starter motor rotates but engine does not tum over
0 Starter works but engine won't tum over (seized)
0 No fuel flow
0 Engine flooded
0 No spark or weak spark
0 Compression low
0 Stalls after starting
0 Rough idle
2 Poor running at low speed
0 Spark weak
0 Fuel/air mixture incorrect
0 Compression low
0 Poor acceleration
3 Poor running or no power at high speed
0 FIring incorrect
0 FueValr mixture incorrect
0 Compression low
0 Knocking or pinging
0 Miscellaneous causes
4 Overheating
0 Engine overheats
0 FIring Incorrect
0 FueVair mixtureJncorrect
0 ComPfMSion too high
p engine 1089 excessive-
0 Lubrication inadequate
0 Miscellaneous causes
5 Clutch problems
Clutch slipping
Clutch not disengaging completely
shifting problems
Doesn't go into gear, or lever doesn't return
Jumps out of gear
Overshifts
:0
Q
of possible causes, starting with the simplest or most obvious and
progressing in stages to the most complex.
Take nothing for granted, but above all apply liberal quantities of
common sense.
The main symptom of a fault is given in the text as a major heading
below which are listed the various systems or areas which may contain
the fault. Details of each possible cause for a fault and the remedial
action to be taken are given, in brief, in the paragraphs below each
heading. Further information should be sought in the rejevant Chapter.
7 Abnonnal engine noise
0 Knocking or pinglng
0 Piston slap or rattling
0 Valve noise
0 Other noise
8 Abnonnal driveline noise
0 Clutch noise
0 Transmission noise
0 Final drive noise
9 Abnormal frame and suspension noise
0 Front end noise
0 Shock absorber noise
0 Brake noise
10011 pressure indicator light comes on
0 Engine lubrication system
0 Electrical system
11 excessive exhaust smoke
0 White smoke
0 Black smoke
0 Brown smoke
12 Poor handling or stability
0 Handlebar hard to tum
0 Handlebar shakes or vibrates excessively
0 Handlebar pulls to one side
0 Poor shock absorbing qualities
13 Braking problems
0 Brakes are spongy. don't hold
0 Brake lever or pedal pulsates
0 Brakes drag
14 Electrical problems
0 Battery dead or weak
0 Battery overcharged
