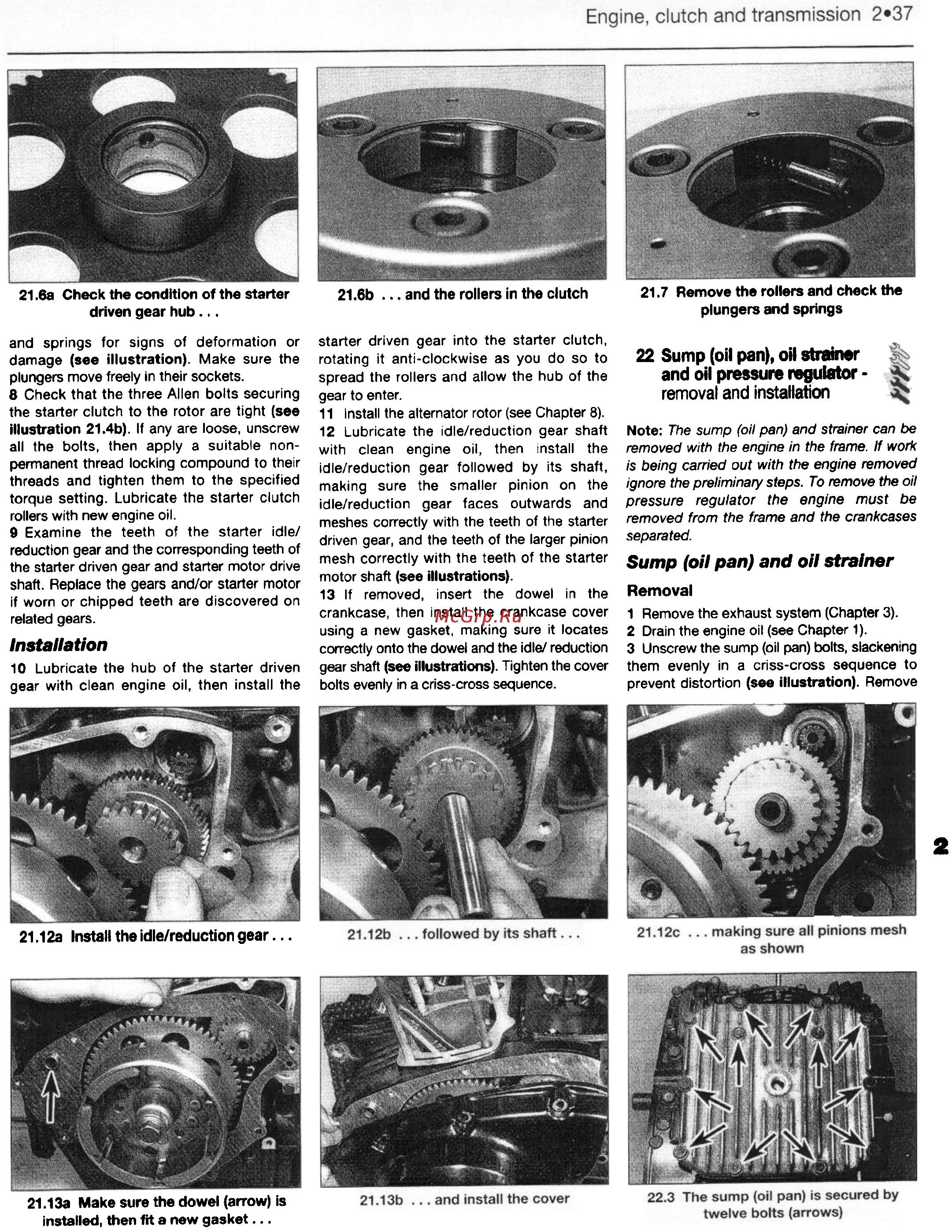

21.68 Check the condition of the starter
driven gear hub. . .
and springs for signs of deformation or
damage (see illustration). Make sure the
plungers move freely in their sockets.
8 Check that the three Allen bolts securing
the starter clutch to the rotor are tight (s..
Illustration 21.4b). If any are loose, unscrew
all the bolts, then apply a suitable non-
permanent thread locking compound to their
threads and tighten them to the specified
torque setting. Lubricate the starter clutch
rollers with new engine oil.
9 Examine the teeth of the starter idle!
reduction gear and the corresponding teeth of
the starter driven gear and starter motor drive
shaft. Replace the gears and/or starter motor
if worn or chipped teeth are discovered on
related gears.
Installation
10 Lubricate the hub of the starter driven
gear with clean engine oil, then install the
21.12a Install the
idle/reduction
21.13a Make sure the dowel (arrow) is
installed, then fit a new gasket. . .
21.7 Remove the rollers and check the
plungers and springs
21.6b ... and the rollers in the clutch
starter driven gear into the starter clutch,
rotating it anti-clockwise as you do so to
spread the rollers and allow the hub of the
gear to enter.
11 Install the alternator rotor (see Chapter 8).
12 Lubricate the idle/reduction gear shaft
with clean engine oil, then install the
idle/reduction gear followed by its shaft,
making sure the smaller pinion on the
idle/reduction gear faces outwards and
meshes correctly with the teeth of the starter
driven gear, and the teeth of the larger pinion
mesh correctly with the teeth of the starter
motor shaft (see illustrations).
13 If removed, insert the dowel in the
crankcase, then install the crankcase cover
using a new gasket, making sure it locates
correctly onto the dowel and the idle/ reduction
gear shaft (see illustrations). Tighten the cover
bolts evenly in a criss-cross sequence.
22 Sump (oil pan), oil strainer
and oil pressure regulator -
removal and installation
Not.: The sump (011 pan) and sttainer can be
removed with the engine in the frame. "work
is being carried out with the engine removed
ignore the preliminary steps. To remo~ the oil
pressure regulator the engine must be
removed from the frame and the crankcases
separated.
Sump (oil pan) and oil straIner
Removal
1 Remove the exhaust system (Chapter 3).
2 Drain the engine oil (see Chapter 1).
3 Unscrew the sump (oil pan) bolts. slackening
them evenly in a criss-cross sequence to
prevent distortion (see illustration). Remove
2
gear.. .
