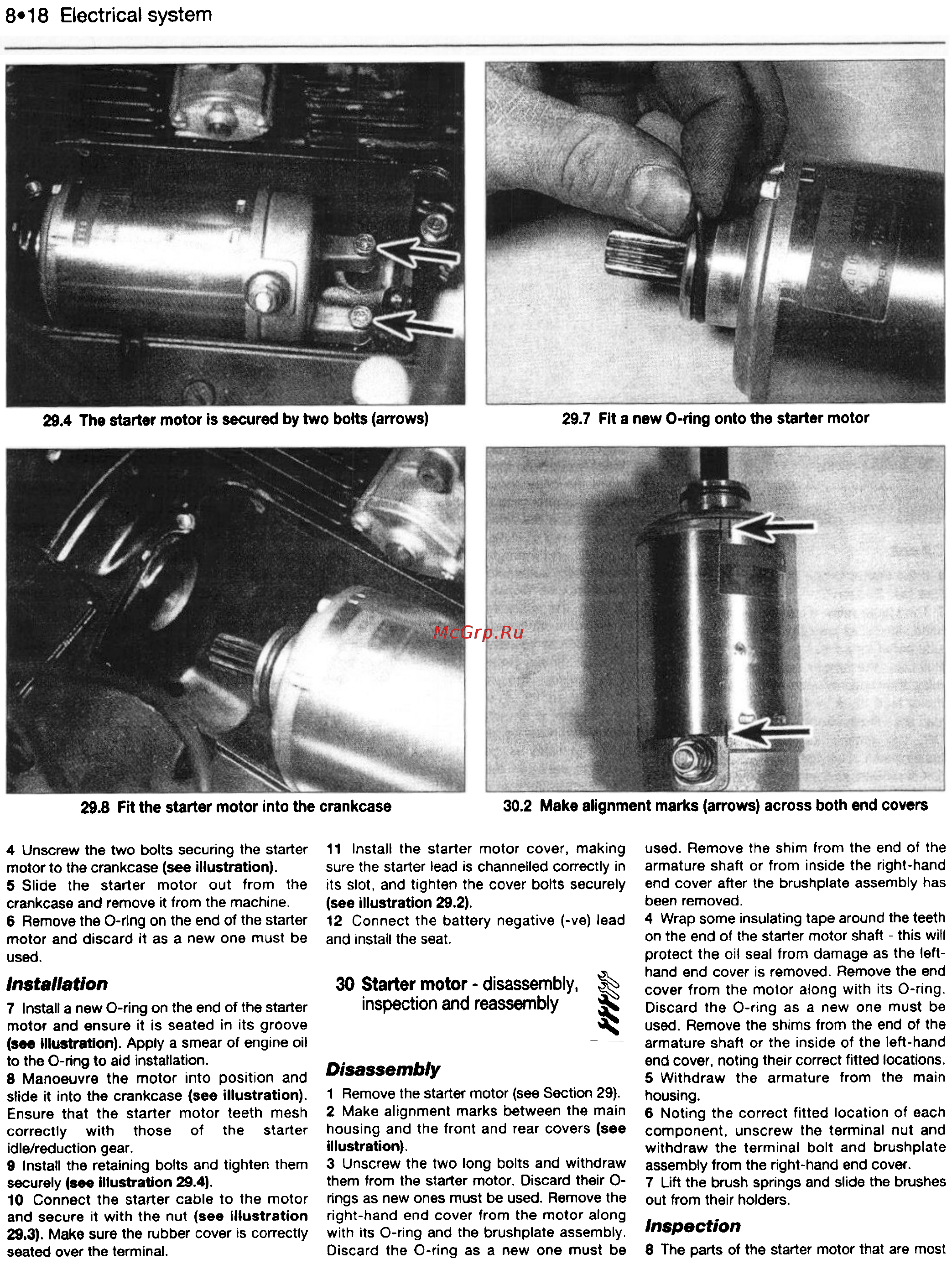

8-18 Electrical system
29.4 The starter motor is secured by two bolts (arrows)
29.8 FIt the starter motor into the crankcase
4 Unscrew the two bolts securing the starter
motor to the crankcase (... Hlustratlon).
5 Slide the starter motor out from the
crankcase and r.nove it from the machine.
e Remove the O-ring on the end of the starter
motor and discard it as a new one must be
used.
Installation
7 Install a new Coring on the end of the starter
motor and ensure it is seated in its groove
(see Ibtretion). Apply a smear of engine oil
to the Coring to aid installation.
8 Manoeuvre the motor into position and
slide it Into the crankcase (see ilustration).
Ensure that the starter motor teeth mesh
correctly with those of the starter
Ide/reduction gear.
9 Install the retaining bolts and tighten them
securely (see Illustration 28.4).
10 Connect the starter cable to the motor
and secure it with the nut (see illustration
29.3). Make sure the rubber cover is correctly
seated over the terminal.
8.7 fit. new O-ring onto the starter motor
30.2 Make alignment marks (arrows) across both end COVer8
used. Remove the shim from the end of the
armature shaft or from inside the right-hand
end cover after the brusI'IJ)I8te assembly has
been rwnoved.
4 Wrap some Insulating tape around the teeth
on the end of the startet motor shaft. this will
protect the oil seal from damage as the left-
h81d end cover is removed. Remove the end
cover from the motor along with its D-ring.
Discard the D-rlng as a new one must be
used. Remove the shims from the end of the
armature shaft or the inside of the left-hand
end cover, noting their correct fitted locations.
5 Withdraw the armature from the main
housing.
S Noting the correct fitted location of each
component, unscrew the terminal nut and
withdraw the terminal bolt and brushplate
assembly from the right-h81d end covw.
7 Lift the brush springs and slide the brushes
out from their holders.
Inspection
8 The parts of the starter motor that are most
11 Install the starter motor cover. making
sure the starter lead is channelled correctly In
its slot. and tighten the cover bolts securely
(see iMU8tr8tion 8.2).
12 Connect the battery negative (-ve) lead
and install the seat.
~'j
~
~
~
30 Starter motor - disassembly I
inspection and reassembly
DiSB88embly
1 Remove the starter motor (see Section 29).
2 Make alignment marks between the main
housing and the front and rear covers (8M
IIlustr8tlon).
3 Unscrew the two long bolts and withdraw
them from the start.. motCX'. DiSC8d their 0-
rings as new ~ must be used. Remove the
right-hand end cover from the motor along
with its O-ring and the brulhplate assembly.
Discard the O-ring as 8 new one must be
