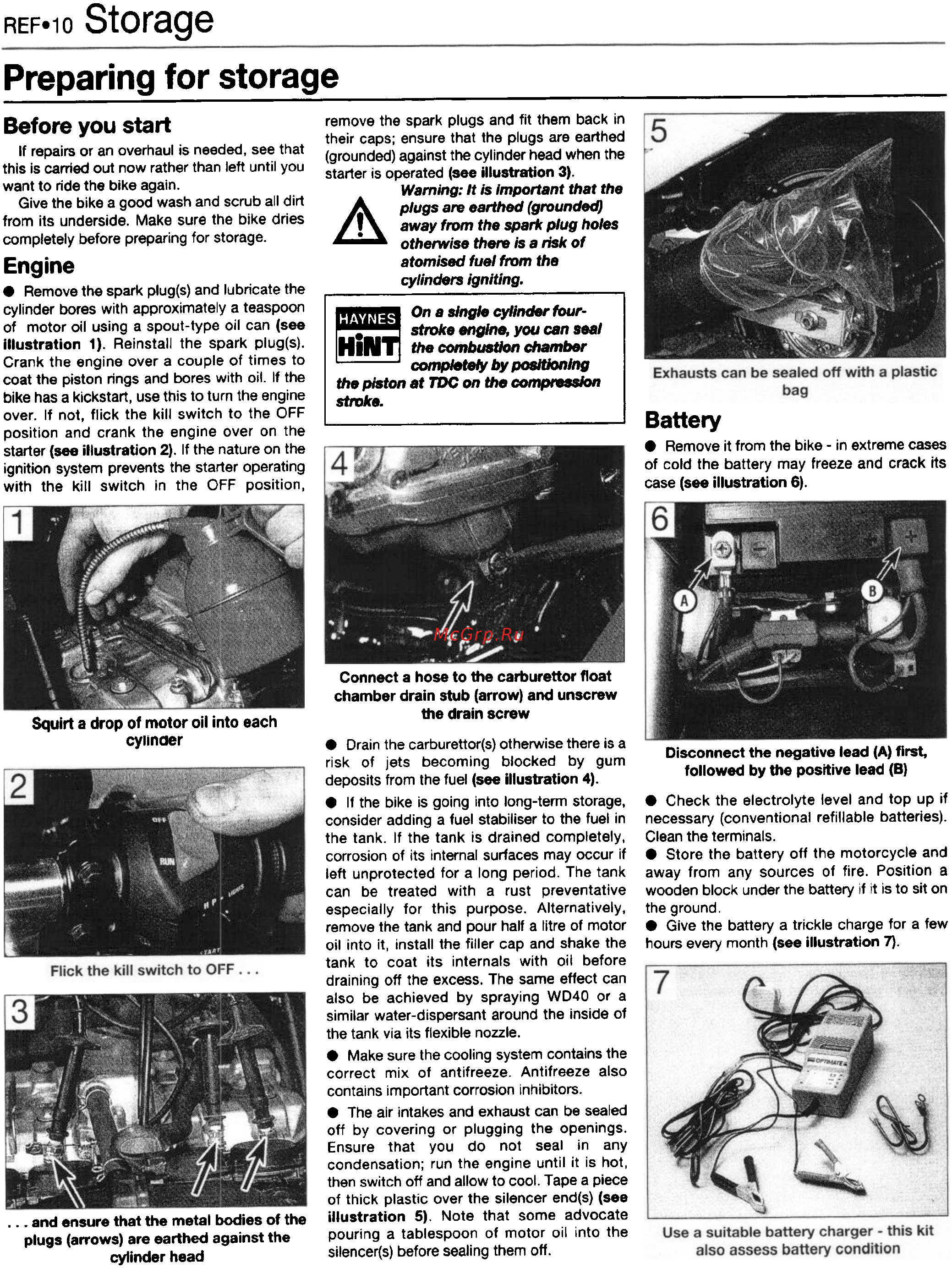

REF.10 Storage
Preparing for storage
remove the spark plugs and fit them back in
their caps; ensure that the plugs are earthed
(grounded) against the cylinder head when the
starter is operated (see illustration 3).
Warning: It is important that the
/:\ plugs are earthed (grounded)
ili away from the spark plug holes
otherwise there is a risk of
atomised fuel from the
cylinders igniting.
Before you start
If repairs or an overhaul is needed, see that
this is carried out now rather than left until you
want to ride the bike again.
Give the bike a good wash and scrub all dirt
from its underside. Make sure the bike dries
completely before preparing for storage.
Engine
. Remove the spark plug(s) and lubricate the
cylinder bores with approximately a teaspoon
of motor oil using a spout-type oil can (see
Illustration 1). Reinstall the spark plug(s).
Crank the engine over a couple of times to
coat the piston rings and bores with oil. If the
bike has a kickstart. use this to tum the engine
over. If not. flick the kill switch to the OFF
position and crank the engine over on the
starter (see illustration 2). If the nature on the
ignition system prevents the starter operating
with the kill switch in the OFF position,
Squirt a drop of motor oil into each
cylinder
. . . and ensure that the metal bodies of the
plugs (arrows) are earthed against the
cylinder head
=On a single cylinder four-
. stroke engine, you can seal
HIN the combustion chamber
completely by positioning
the piston at roc on the compression
stroke.
Battery
. Remove it from the bike - in extreme cases
of cold the battery may freeze and crack its
case (see Illustration 6).
Connect a hose to the carburettor float
chamber drain stub (arrow) and unscrew
the drain screw
. Drain the carburettor(s) otherwise there is a
risk of jets becoming blocked by gum
deposits from the fuel (see ilklsb'8tlon 4).
. If the bike is going into long-term storage,
consider adding a fuel stabiliser to the fuel in
the tank. If the tank Is drained completely,
corrosion of its internal surfaces may occur if
left unprotected for a long period. The tank
can be treated with a rust preventative
especially for this purpose. Alternatively,
remove the tank and pour half a litre of motor
011 into it, install the filler cap and shake the
tank to coat its intemals with oil before
draining off the excess. The same effect can
also be achieved by spraying WD40 or a
similar water-dispersant around the inside of
the tank via its flexible nozzle.
. Make sure the cooling system contains the
correct mix of antifreeze. Antifreeze also
contains important corrosion inhibitors.
. The air Intakes and exhaust can be sealed
off by covering or plugging the openings.
Ensure that you do not seal in any
condensation; run the engine until it is hot.
then switch off and allow to cool. Tape a piece
of thick plastic over the silencer end(s) (see
illustration 5). Note that some advocate
pouring a tablespoon of motor oil into the
silencer(s) before sealing them off.
Disconnect the negative lead (A) first,
followed by the positive lead (8)
. Check the electrolyte level and top up if
necessary (conventional refillable batteries).
Clean the terminals.
. Store the battery off the motorcycle and
away from any sources of fire. Position a
wooden block under the battery if it is to sit on
the ground.
. Give the battery a trickle charge for a few
hours every month (see illustration 7).
