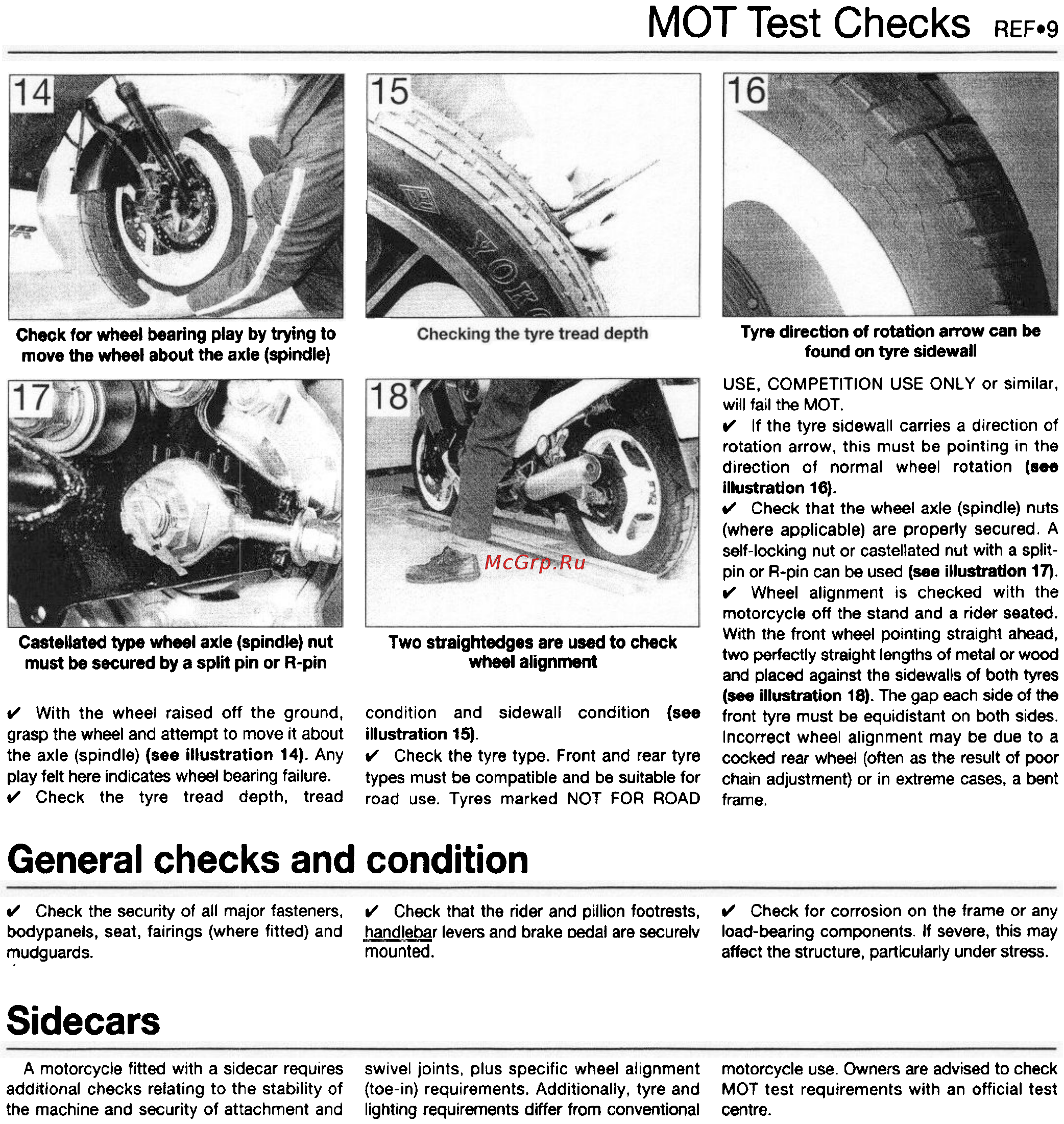

Check for wheel bearing play by trying to
move the wheel about the axle (spindle)
Castellated type wheel axle (spindle) nut
must be secured by a split pin or A-pin
t' With the wheel raised off the ground,
grasp the wheel and attempt to move it about
the axle (spindle) (see illustration 14). Any
play felt here indicates wheel bearing failure.
t' Check the tyre tread depth, tread
General checks and condition
II' Check the security of all major fasteners.
bodypanels. seat, fairings (where fitted) and
~udguards.
Sidecars
A motorcycle fitted with a sidecar requires
additional checks relating to the stability of
the machine and security of attachment and
MOT Test Checks REF-9
Tyre direction of rotation arrow can be
found on tyre sidewall
USE, COMPETITION USE ONLY or similar,
will fail the MOT.
., If the tyre sidewall carries a direction of
rotation arrow, this must be pointing In the
direction of normal wheel rotation (...
illustration 16).
., Check that the wheel axle (spindle) nuts
(where applicable) are properly secured. A
self-locking nut or castellated nut with a split-
pin or A-pin can be used (see Illustration 17).
., Wheel alignment is checked with the
motorcycle off the stand and a rider seated.
With the front wheel pointing straight ahead,
two perfectly straight lengths of metal or wood
and placed against the sidewalls of both tyres
(see ilklSb'ation 18). The gap each side of the
front tyre must be equidistant on both sides.
Incorrect wheel alignment may be due to a
cocked rear wheel (often as the result of poor
chain adjustment) or in extreme cases, a bent
frame.
Two straightedges are used to check
wheel alignment
condition and sidewall condition (see
illustration 15).
'" Check the tyre type. Front and rear tyre
types must be compatible and be suitable for
road use. Tyres marked NOT FOR ROAD
81' Check for corrosion on the frame or any
load-bearing components. If severe, this may
affect the structure, particularly under stress.
V Check that the rider and pillion footrests,
handlebar leyers and brake DedaJ are securely
mounted.
swivel joints, plus specific wheel alignment
(toe-in) requirements. Additionally, tyre and
lighting requirements differ from conventional
motorcycle use. Owners are advised to check
MOT test requirements with an official test
centre.
