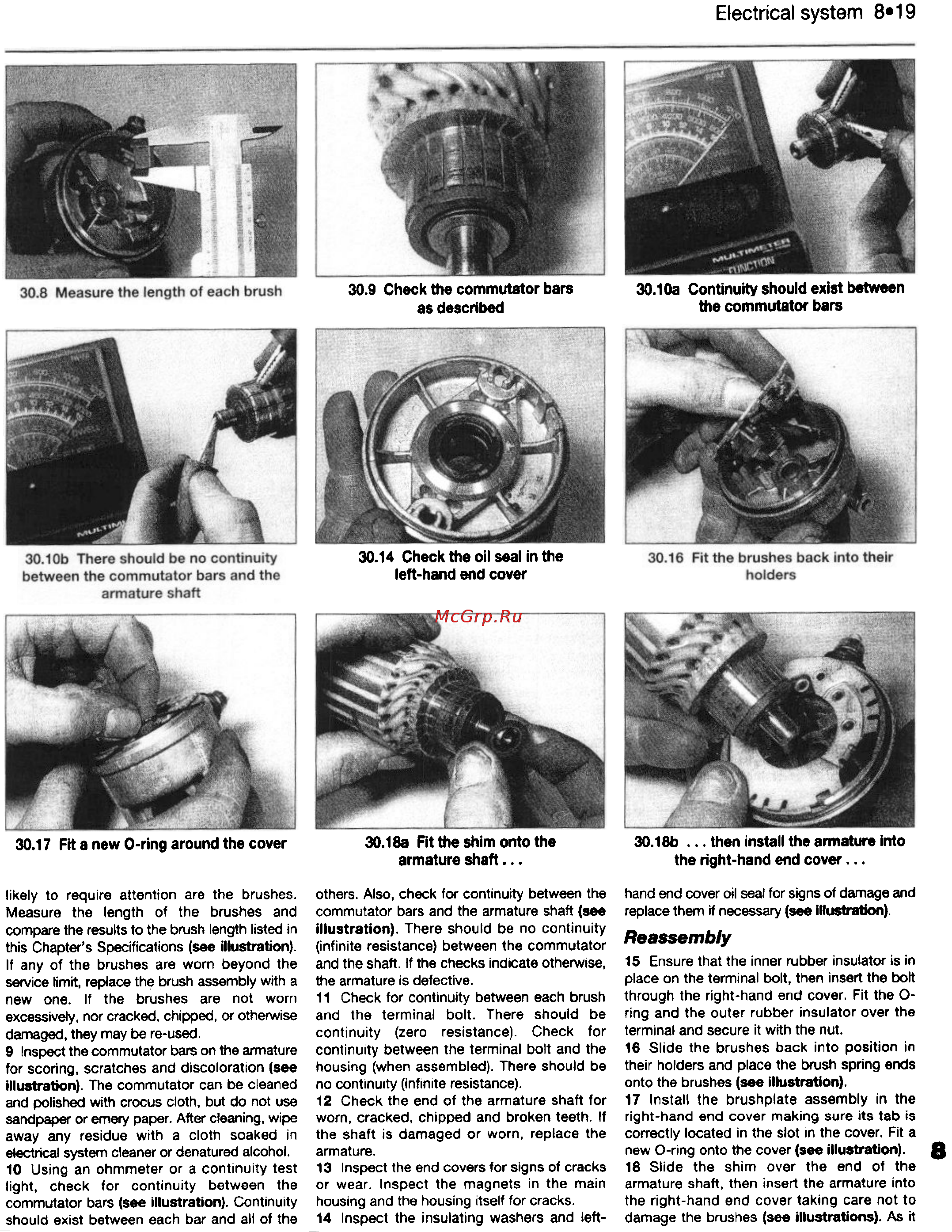

Suzuki GS500E (1989-1997) [176/221] Electrical system 8 19
![Suzuki GS500E (1989-1997) [176/221] Electrical system 8 19](/views2/1121322/page176/bgb0.png)
.'M),17 Fit 8 new O-ring around the cover
likely to require attention are the brushes.
Measure the length of the brushes and
~ the results to the 00JSh *1gtt1 Wsted in
this Chaptel"S Specifications (-. ".;kJt,).
If any of the brushes are worn beyond the
service .,., ~ ~ 00JSh 8SS8rtiy with a
new one. If the brushes are not worn
excessively, nor cracked, chipped, or otherwise
damaged, they may be re-l8ed.
9 Inspect the comrrAJtattK bars 00 the 8mature
for scoring, scratches and discoloration (see
""-""-.). The ~or C81 be cleaned
wid poIshed with atICU8 cloth, txIt do ncx ~
sandpaper or emery paper. After cleaning, wipe
away any residue with a cloth soaked In
electrical syst~ cteener or ~ 8IcdX)j.
10 Using an ohmmeter or a continuity test
light, check for continuity between the
commutator bers c-- 11kI8tr8tIon). Continuity
should exist between each bar and all of the
Electrical system 8-19
30.108 Continuity should exist bet.ve6li
30.9 Check the commutator bars
as described
the commutator bars
30.14 Check tf1e oil seal in tf1e
left-hand end cover
30.18b ... U1en install the armatwe into
the right-hand end cover. . .
30.188 Fit the shim onto the
armature shaft . . .
hand end cover ~I seal frx signs of damage and
replace them if necessary (see 1II&8tr8tion).
RNaembly
15 Ensure that the inner rubber insulator is in
place on the t~nal bolt, then I~ the bolt
through the right-hand end cover. Fit the D-
ring and the outer rubber insulator over the
temllnal and secure it with the nut.
16 Slide the brushes back into position in
their holders and place the brush spring ends
onto the ~ (... Ibtr8tion).
17 Install the brush plate 88S&n1b1y in the
right-hand end cover making sure its tab is
correctly located in the slot in the cover. At a
new O-ring onto the cover (... iIU5 -.t.
18 Slide the shim over the end of the
armature shaft, then insert the armature into
the right-hand end cover taking care not to
damage the brushes (I" illustrationa). As it
others. Also, check for continuity between the
commutator bars and the armature shaft (see
illustr8tion). There should be no continuity
(infinite resistance) between the commutator
and the shaft. If the checks indicate otherwise,
the armature is defective.
11 Check for continuity between each brush
and the terminal bolt. There should be
continuity (zero resistance). Check for
continuity between the terminal bolt and the
housing (when assembled). There should be
no continuity ~nfinite resistance).
12 Check the end of the armeture shaft for
worn, cracked. chipped and broken teeth. If
the shaft is damaged or worn, replace the
armature.
13 Inspect the end covers for signs of cracks
or wear. Inspect the magnets in the main
housing IW1d the housing itself for cras.
14 Inspect the insulating washers and left-
8
