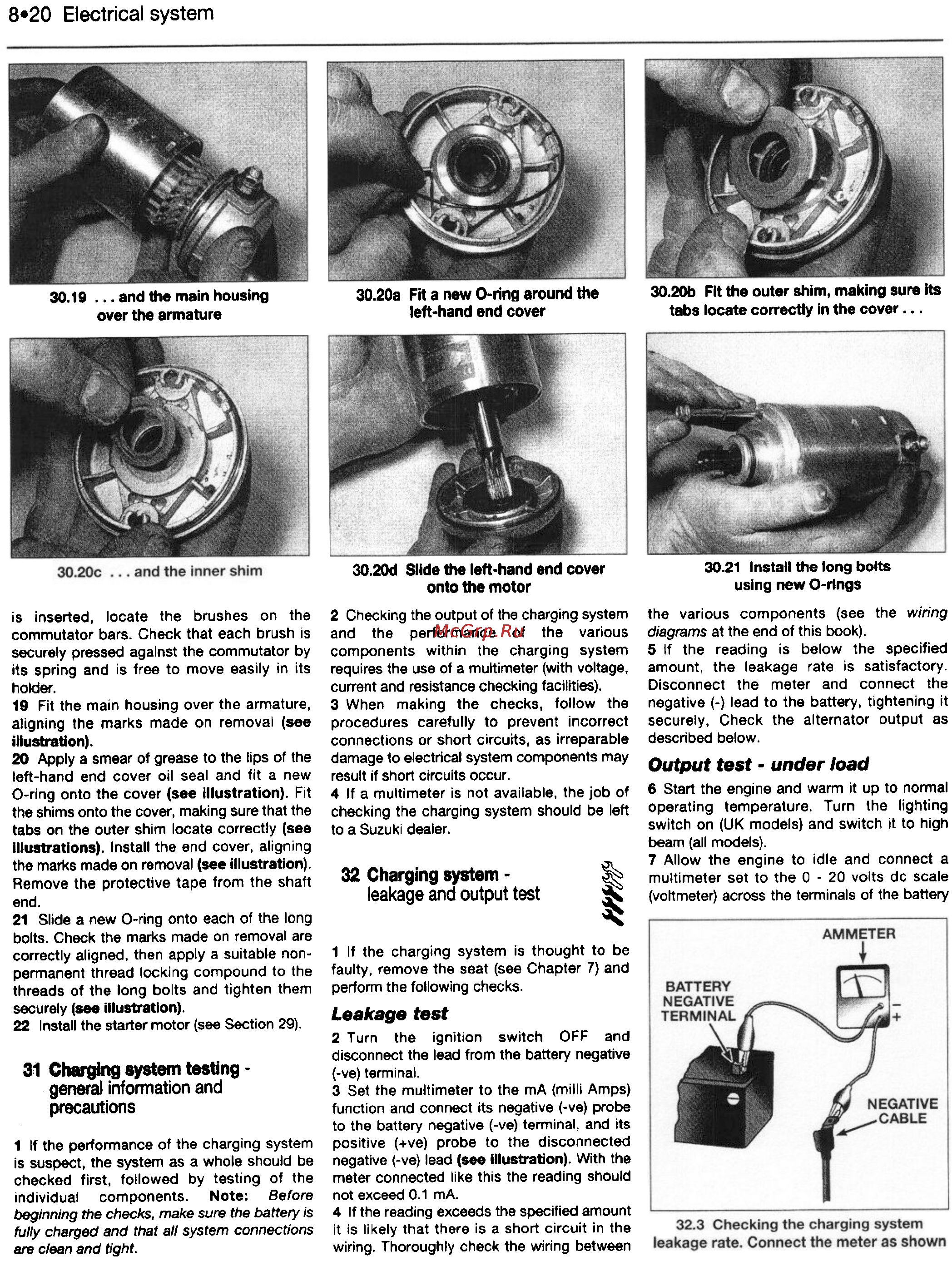

8-20 Electrical system
30.19 ... and the main housing
over the armature
is inserted, locate the brushes on the
commutator bars. Check that each brush Is
securely pressed against the commutator by
its spring and is free to move easily in its
holder.
19 Fit the main housing over the armature,
aligning the marks made on removal (s..
illustration).
20 Apply a smear of grease to the lips of the
left-hand end cover oil seal and fit a new
O-ring onto the cover (see illustration). Fit
the shims onto the cov«. making sure that the
tabs on the outer shim locate correctly (see
illustrations). Install the end cover, aligning
the marks made on removal (see Illustration).
Remove the protective tape from the shaft
end.
21 Slide a new O-ring onto each of the long
bolts. Check the marks made on removal are
correctly aligned. then apply a suitable non-
permanent thread locking compound to the
threads of the long bolts and tighten them
securely (see illustration).
22 Install the starter motor (see Section 29).
31 Charging system testing -
general infomlation and
precautions
1 If the perfonT1ance of the charging system
is suspect, the system as a whole should be
checked first, followed by testing of the
individual components. Note: Before
beginning the checks, make sure the battery is
fully charged and that all system connections
are clean and tight.
3O.20b Fit the outer shim, making sure its
tabs locate correctly in the cover. . .
30.208 Fit a new O-ring around the
left-hand end cover
30.21 Install the long bolts
using new O-rings
the various components (see the wiring
diagrams at the end of this book).
5 If the reading is below the specified
amount, the leakage rate Is satisfactory.
Disconnect the meter and connect the
negative (-) lead to the battery, tightening it
securely, Check the alternator output as
described below.
Output test - under load
6 Start the engine and warm it up to normal
operating temperature. Turn the lighting
switch on (UK models) and switch it to high
beam (all models).
7 Allow the engine to Idle and connect a
multimeter set to the 0 - 20 volts dc scale
(voftmeter) across the terminals of the battery
3O.2Od Slide the left-hand end cover
onto the motor
2 Checking the output of the charging system
and the performance of the various
components within the charging system
requires the use of a multimeter (with voltage.
current and resistance checking facilities).
3 When making the checks. follow the
procedures carefully to prevent incorrect
connections or short circuits. as irreparable
damage to electrical system components may
result if short circuits occur.
4 If a multi meter is not available. the job of
checking the charging system should be left
to a Suzuki dealer.
~
§
~
32 Charging system -
leakage and output test
1 If the charging system is thought to be
faulty, remove the seat (see Chapter 7) and
perform the following checks.
Leakage test
2 Turn the ignition switch OFF and
disconnect the lead from the battery negative
(-ve) terminal.
3 Set the multimeter to the mA (milli Amps)
function and connect its negative (-ve) probe
to the battery negative (-ve) terminal, and its
positive (+ve) probe to the disconnected
negative (-ve) lead (see Illustration). With the
meter connected like this the reading should
not exceed 0.1 mA.
4 If the reading exceeds the specified amount
it is likely that there is a short circuit in the
wiring. Thoroughly check the wiring between
