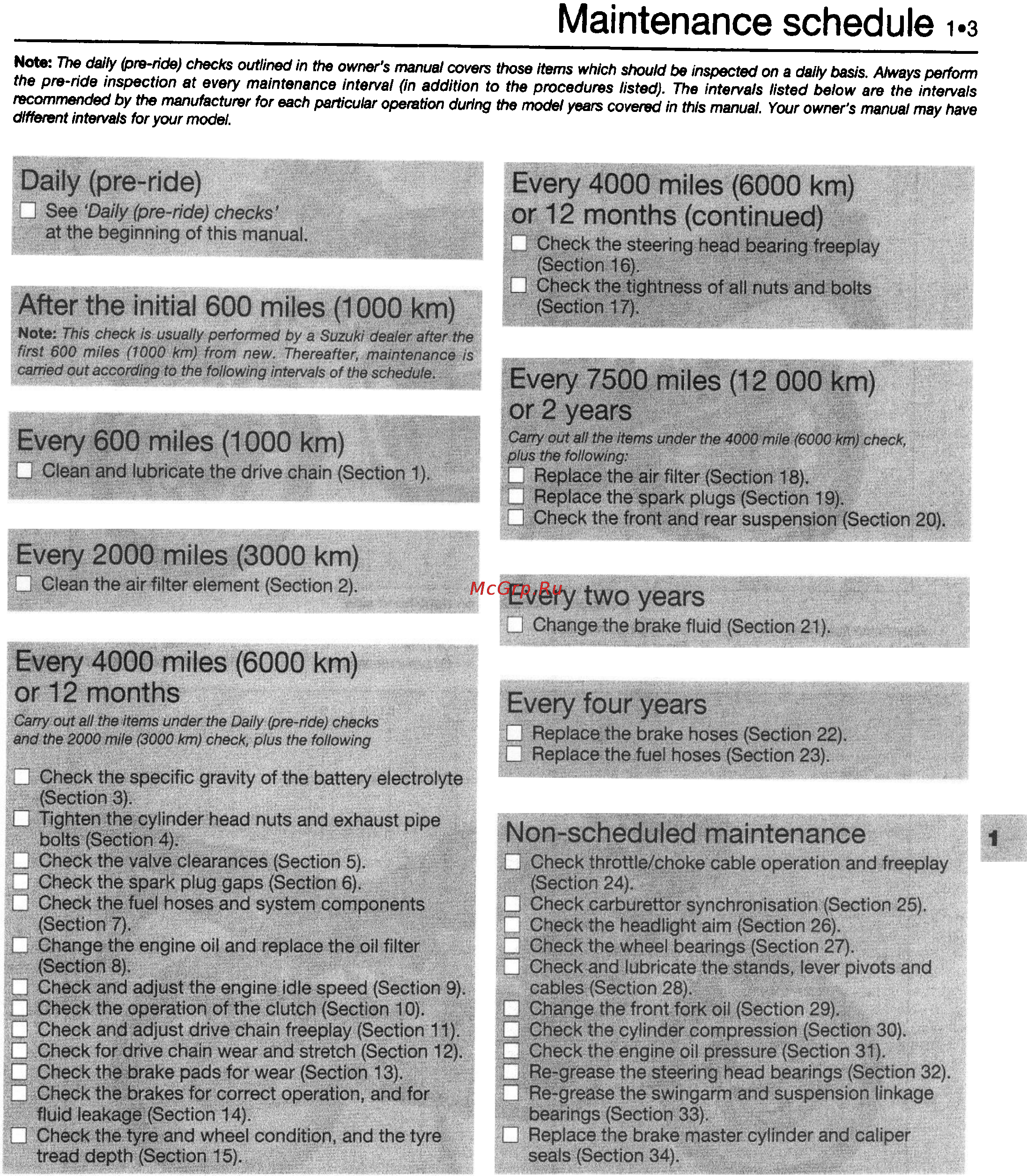

Suzuki GS500E (1989-1997) [16/221] Maintenance schedule
![Suzuki GS500E (1989-1997) [16/221] Maintenance schedule](/views2/1121322/page16/bg10.png)
1-3
Note: 77Ie dally (pre-ride) checks outlined in the owner's menua/ co~ those items which should be inspected on a daily basis. Always perfonn
the pre-ride inspection at every maintenance interval (in addition to the procedures listed). 77Je Intervals listed below are the intervals
IeCOmmended by the manufacturer for each patticular operation during the model yeatS covered In this manual. Your owner's manual may have
d/fferent intervals for your model.
Maintenance schedule
