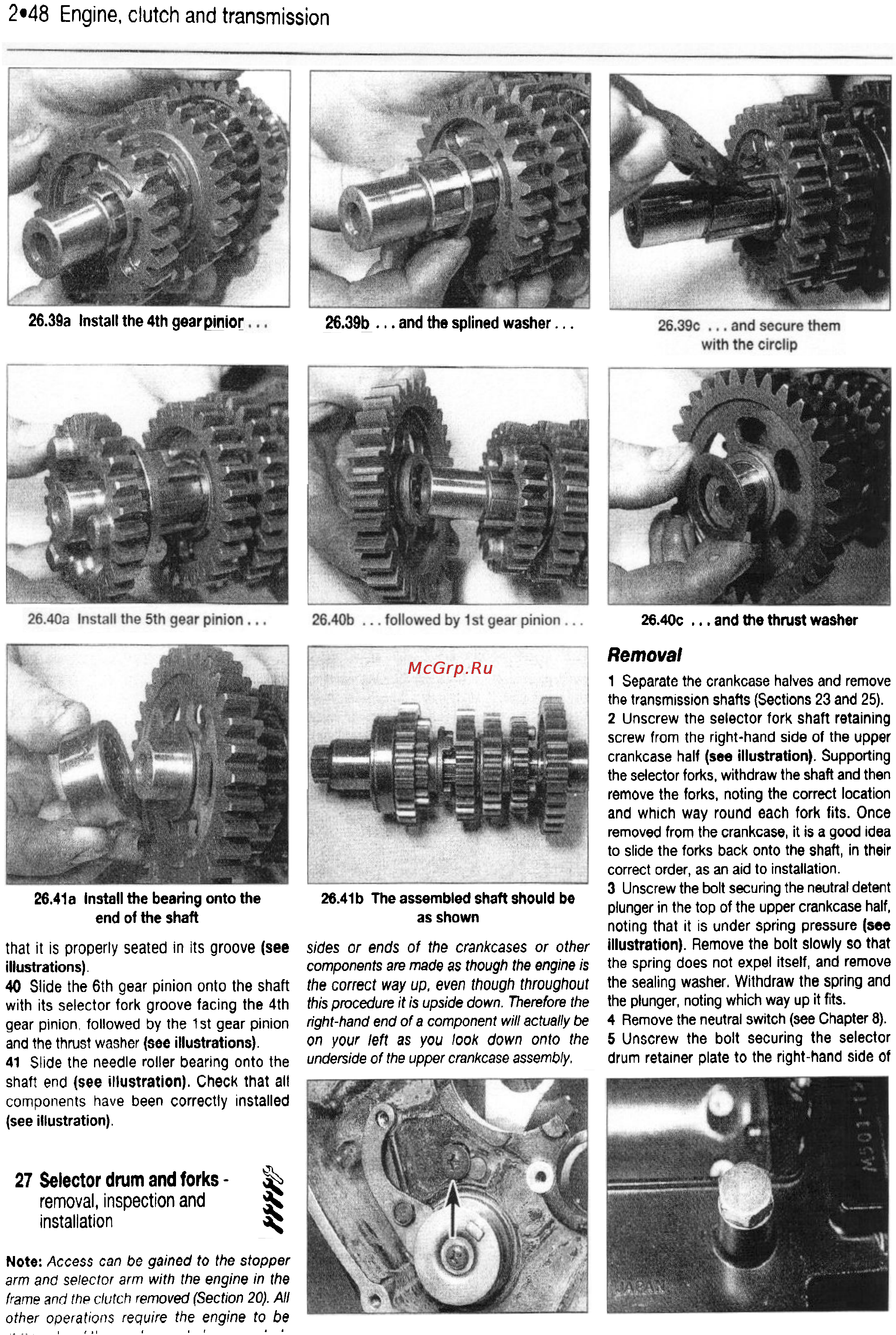

2.48 Engine. clutch and transmission
26.393 Install the 4th gear
pinion
26.418 Install the bearing onto the
end of the shaft
that it is properly seated in its groove (see
IHustrations).
40 Slide the 6th gear pinion onto the shaft
with its selector fork groove facing the 4th
gear pinion, followed by the 1st gear pinion
and the thrust washer (see ilu8tr8tiona).
41 Slide the needle roller bearing onto the
shaft end (s" illustration). Check that all
components have been correctly installed
(see iRustratlon).
27 Selector drum and forks -
removal, inspection and
installation
Note: Access can be ge/ned to the stopper
arm and selector arm with the engine In the
frame and the clutch removed (Section 20). All
other operations require the engine to be
.. - . - . ... -., .. . .
26.39b. . . and the splined washer. . .
26.4Oc ... and u,e throst washer
Removal
1 Separate the crankcase halves and remove
the transmission shafts (Sections 23 and 25).
2 Unscrew the selector fork shaft retaining
screw from the right-hand side of the upper
crankcase half (see Illustration). Supporting
the selector forks, withdraw the shaft and then
remove the forks, noting the correct location
and which way round each fork fits. Once
reI'noYed from the ~kcase, it is a good idea
to slide the forks back onto the shaft, In tt1eir
correct order I as an aid to Installation.
3 Unscrew the bolt securing the neutral detent
plunger in the top of the upper crankcase half.
noting that it is under spring pressure (888
Illustration). Remove the bolt slowly so that
the spring does not expel Itself I and remove
the sealing washer. WIthdraw the spring and
the plunger. notW)Q wtjch way up it fits.
4 Remove the neutral switch (see Chapter 8).
5 Unscrew the bolt securing the selector
drum retainer plate to the right-hand side of
28.41 b The assembled shaft should be
as shown
sides or ends of the crankcases or other
components Sf9 made as though the engine is
the ~t way up. e..en though throughout
this procec*H8 it is upside 00wn. Th8f&b8 the
right-hand end of 8 component will 8Ctu8Ity be
on your /eft as you look down onto the
~ of the upper CfBnkcase assemI>Iy.
