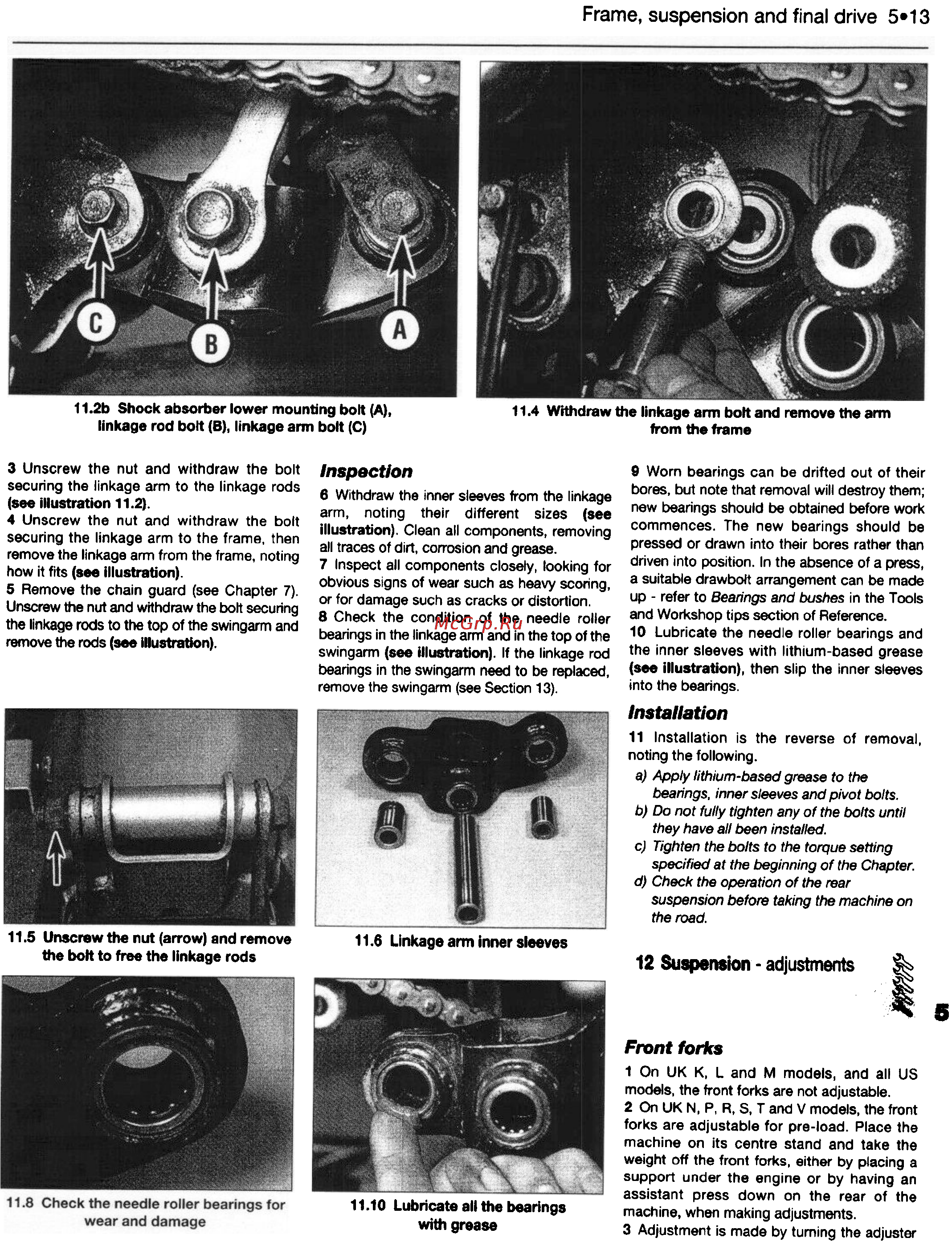

11 2b Shock absorber lower mounting bolt (A), 11.4 Withdraw the linkage arm bolt and remove the arm. linkage rod bolt (B), linkage arm bolt (C) from the frame
3 Unscrew the nut and withdraw the bolt Inspection
securing the linkage arm to the linkage rods 6 Withdraw the inner sleeves from the linkage
(see Illustration 11.2). arm, noting their different sizes (see
4 Unscrew the nut and withdraw the bolt illustration). Clean all components, removing
securing the linkage arm to the frame, then all traces of dirt, corrosion and grease.
remove the linkage arm from the frame, noting 7 Inspect all components closely, looking for
how It fits (see Illustration). obvious signs of wear such as heavy scoring,
5 Remove the chain guard (see Chapter .7). or for damage such as cracks or distortion.
Unscrew the nut and withdraw the bolt secUrIng 8 Check the condition of the needle roller
the linkage rods to the top of the swingarm and bearings in the linkage arm and in the top of the
remove the rods (see Wustration). swingarm (see Illustration). If the linkage rod
bearings in the swingarm need to be replaced,
remove the swingarm (see Section 13).
11.5 Unscrew the nut (arrow) and remove
the bolt to free the linkage rods
Frame, suspension and final drive 5-13
9 Worn bearings can be drifted out of their
bores, but note that removal will destroy them;
new bearings should be obtained before work
commences. The new bearings should be
pressed or drawn into their bores rather than
driven into position. In the absence of a press,
a suitable drawbolt arrangement can be made
up - refer to Beslings and bushes in the Tools
and Workshop tips section of Reference.
10 Lubricate the needle roller bearings and
the inner sleeves with lithium-based grease
(see illustration), then slip the inner sleeves
into the bearings.
Installation
11 Installation is the reverse of removal,
noting the following.
s) Apply lithium-based grease to the
beerlngs, inner sleeves and pivot bolts.
b) Do not fully tighten any of the bolts until
they have 8/1 been installed.
c) Tighten the bolts to the torque setting
specified at the beginning of the Chapter.
d) Check the opetatlon of the rear
suspension before taking the machine on
the road.
11.6 Linkage arm inner sleeves
12 Suspension - adjustments
~
~
5
Front forb
1 On UK K. Land M models, and all US
models, the front forks are not adjustable.
2 On UK N. P. A, S, T and V models, the front
forks are adjustable for pre-load. Place the
machine on its centre stand and take the
weight off the front forks, either by placing a
support under the engine or by having an
assistant press down on the rear of the
machine, when making adjustments.
3 Adjustment is made by turning the adjuster
11.10 Lubricate all the bearings
with grease
