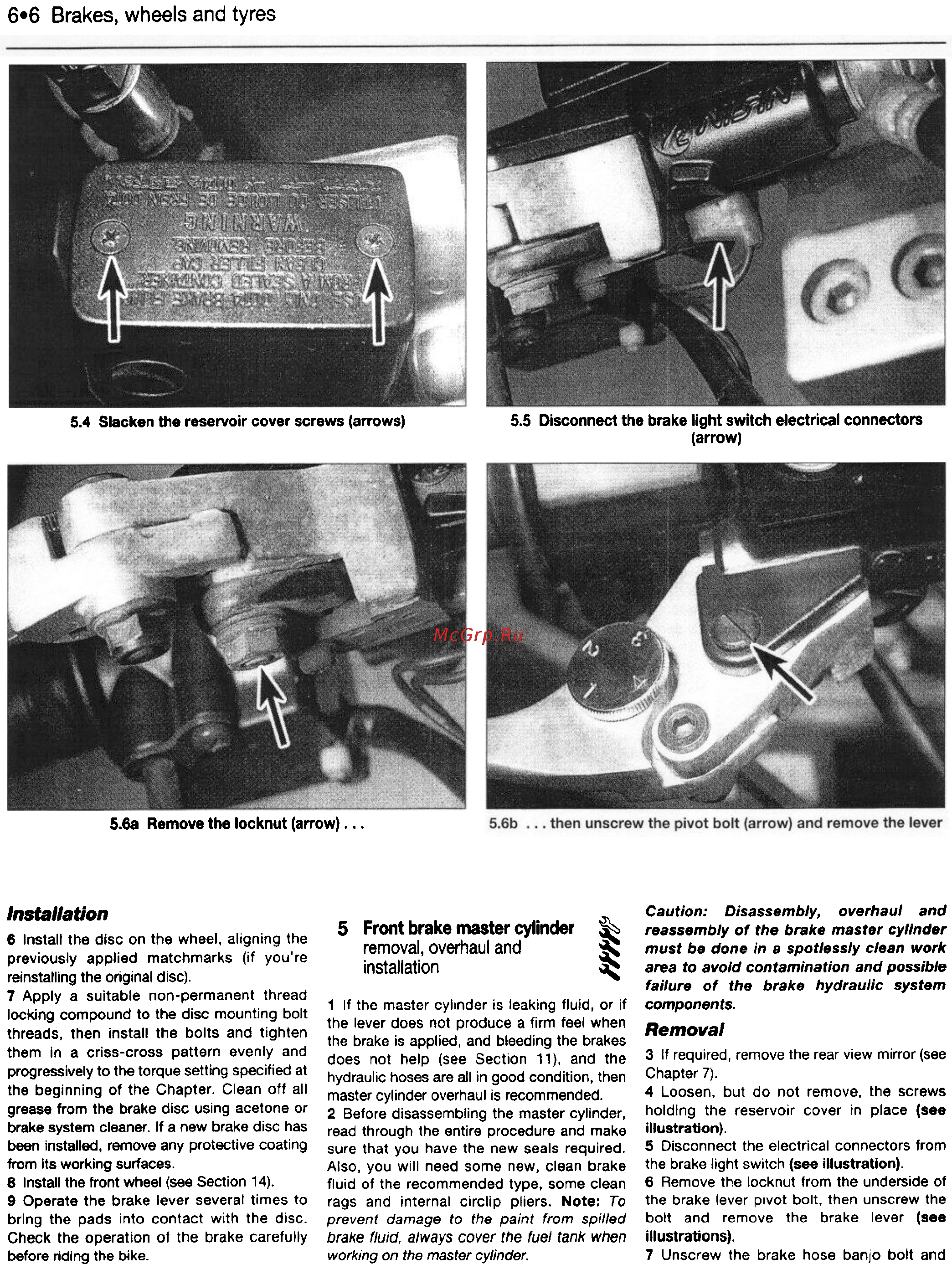

6-6 Brakes, wheels and tyres
5.4 Slacken the reservoir cover screws (arrows)
5.68 Remove the locknut (arrow) . . .
Installation
6 Install the disc on the wheel, aligning the
previously applied matchmarks (if you're
reinstalling the original disc).
7 Apply a suitable non-permanent thread
locking compound to the disc mounting bolt
threads, then install the bolts and tighten
them in a criss-cross pattern evenly and
progressively to the torque setting specified at
the beginning of the Chapter. Clean off all
grease from the brake disc using acetone or
brake system cleaner. If a new brake disc has
been Installed, remove any protective coating
from Its working surfaces.
8 Install the front wheel (see Section 14).
9 Operate the brake lever several times to
bring the pads into contact with the disc.
Check the operation of the brake carefully
before riding the bike.
5.5 Disconnect the brake light switch electrical connectors
(arrow)
Caution: Disassembly, overhaul and
reassembly of the brake master cylinder
must be done in a spotlessly clean work
area to avoid contamination and possible
failure of the brake hydraulic system
components.
~
§
~
Front brake master cylinder
removal, overhaul and
installation
5
1 If the master cylinder is leaking fluid, or if
the lever does not produce a firm feel when
the brake is applied, and bleeding the brakes
does not help (see Section 11), and the
hydraulic hoses are all in good condition, then
master cylinder overhaul is recommended.
2 Before disassembling the master cylinder,
read through the entire procedure and make
sure that you have the new seals required.
Also, you will need some new, clean brake
fluid of the recommended type, some clean
rags and internal circlip pliers. Note: To
prevent damage to the paint from spilled
brake fluid, always cover the fuel tank when
working on the master cylinder.
Removal
3 If required, remove the rear view mirror (see
Chapter 7).
4 Loosen, but do not remove, the screws
holding the reservoir cover in place (see
Ulustration).
5 Disconnect the electrical connectors from
the brake light switch (see illustration).
6 Remove the locknut from the underside of
the brake lever pivot bolt, then unscrew the
bolt and remove the brake lever (s..
illustrations).
7 Unscrew the brake hose banjo bolt and
