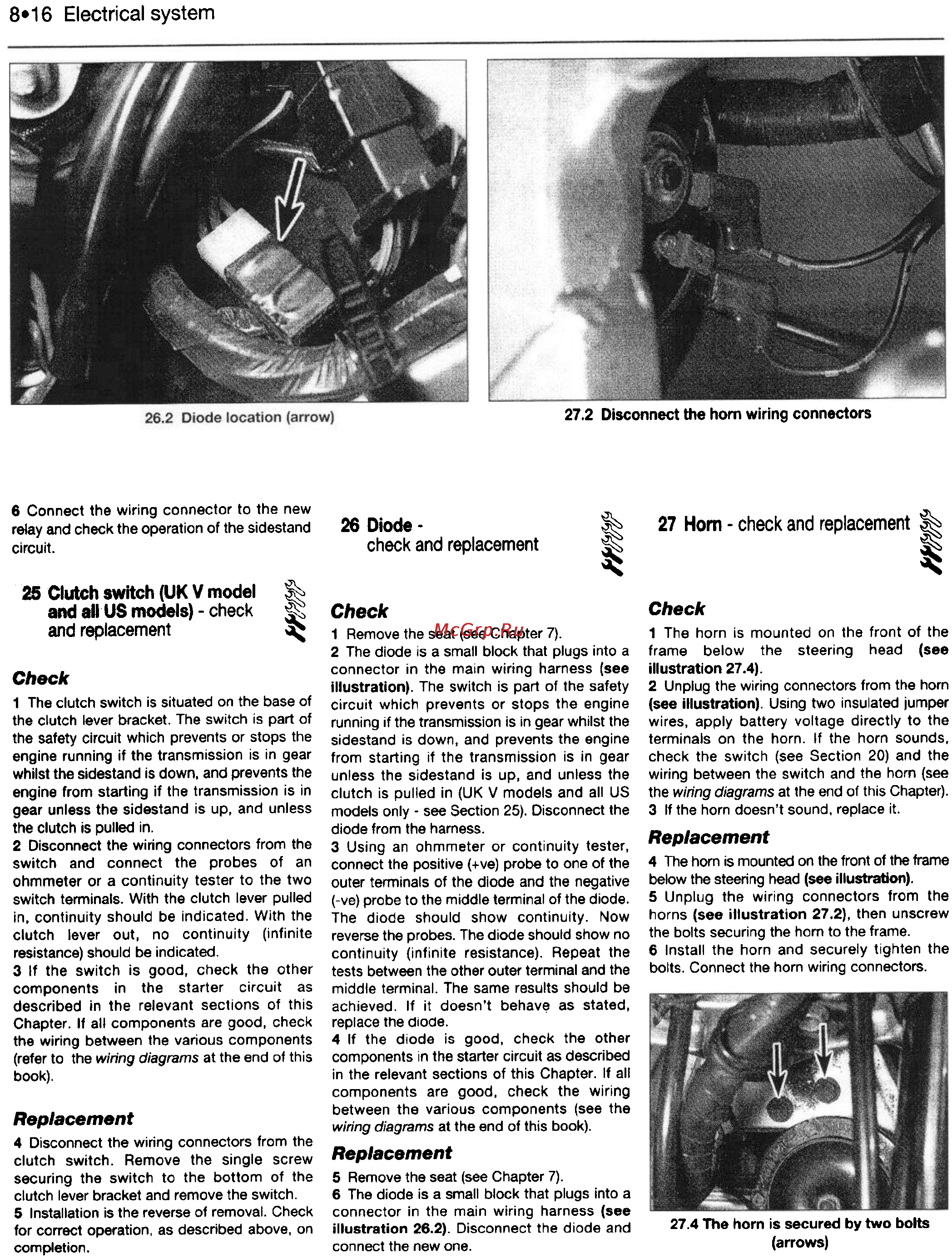

8-16 Electrical system
8 Connect the wiring connector to the new
relay and check the operation of the sldestand
circuit.
25 Clutch switch (UK V model ~
and all US models) - check ~
and replacement ~
Check
1 The clutch switch is situated on the base of
the clutch lever bracket. The switch is part of
the safety circui1 which prevents or stops the
engine running if the transmission is in gear
whilst the sidestand is down, and prevents the
engine from starting if the transmission is in
gear unless the sidestand is up, and unless
the clutch is pulled in.
2 Disconnect the wiring connectors from the
switch and connect the probes of an
ohmmeter or a continuity tester to the two
switch terminals. With the clutch lever pulled
in, continuity should be indicated. With the
clutch lever out, no continuity (infinite
resistance) should be indicated.
3 If the switch is good, check the other
components in the starter circuit as
described in the relevant sections of this
Chapter. If all components are good, check
the wiring between the various components
(refer to the wiring dlagtams at the end of this
book).
Replacement
4 Disconnect the wiring connectors from the
clutch switch. Remove the single screw
securing the switch to the bottom of the
clutch lever bracket and remove the switch.
5 Installation Is the reverse of removal. Check
for correct operation, as described above, on
completion.
27.2 Disconnect the horn wiring connectors
~
~
~
~
~
~
27 Horn - check and replacement
26 Diode-
check and replacement
Check
1 The horn is mounted on the front of the
frame below the steering head (see
illustration 27.4).
2 Unplug the wiring connectors from the hom
(see illustration). Using two insulated jumper
wires, apply battery voltage directly to the
terminals on the homo If the hom sounds.
check the switch (see Section 20) and the
wiring between the switch and the horn (see
the wiring diagrams at the end of this Chapter).
3 If the horn doesn't sound, replace it.
Replacement
4 The horn is mounted on the front of the frame
below the steering head (see 1IkIStration).
5 Unplug the wiring connectors from the
homs (see Illustration 27.2), then unscrew
the bolts securing the horn to the frame.
6 Install the horn and securely tighten the
bolts. Connect the hom wiring connectors.
Check
1 Remove the seat (see Chapter 7).
2 The diode is a small block that plugs into a
connector in the main wiring harness (see
Illustration). The switch is part of the safety
circuit which prevents or stops the engine
running if the transmission is in gear whilst the
sidestand is down, and prevents the engine
from starting if the transmission is in gear
unless the sidestand is up, and unless the
clutch is pulled in (UK V models and all US
models only - see Section 25). Disconnect the
diode from the harness.
3 Using an ohmmeter or continuity tester,
connect the positive (+ve) probe to one of the
outer terminals of the diode and the negative
(-ve) probe to the middle terminal of the diode.
The diode should show continuity. Now
reverse the probes. The diode should show no
continuity (Infinite resistance). Repeat the
tests between the other outer terminal and the
middle terminal. The same results should be
achieved. If it doesn't behav~ as stated,
replace the diode.
4 If the diode is good, check the other
components in the starter circuit as described
in the relevant sections of this Chapter. If all
components are good, check the wiring
between the various components (see the
wiring diagrams at the end of this book).
Replacement
5 Remove the seat (see Chapter 7).
6 The diode is a small block that plugs into a
connector in the main wiring harness (8ee
illustration 26.2). Disconnect the diode and
connect the new one.
27.4 The horn is secured by two bolts
(arrows)
