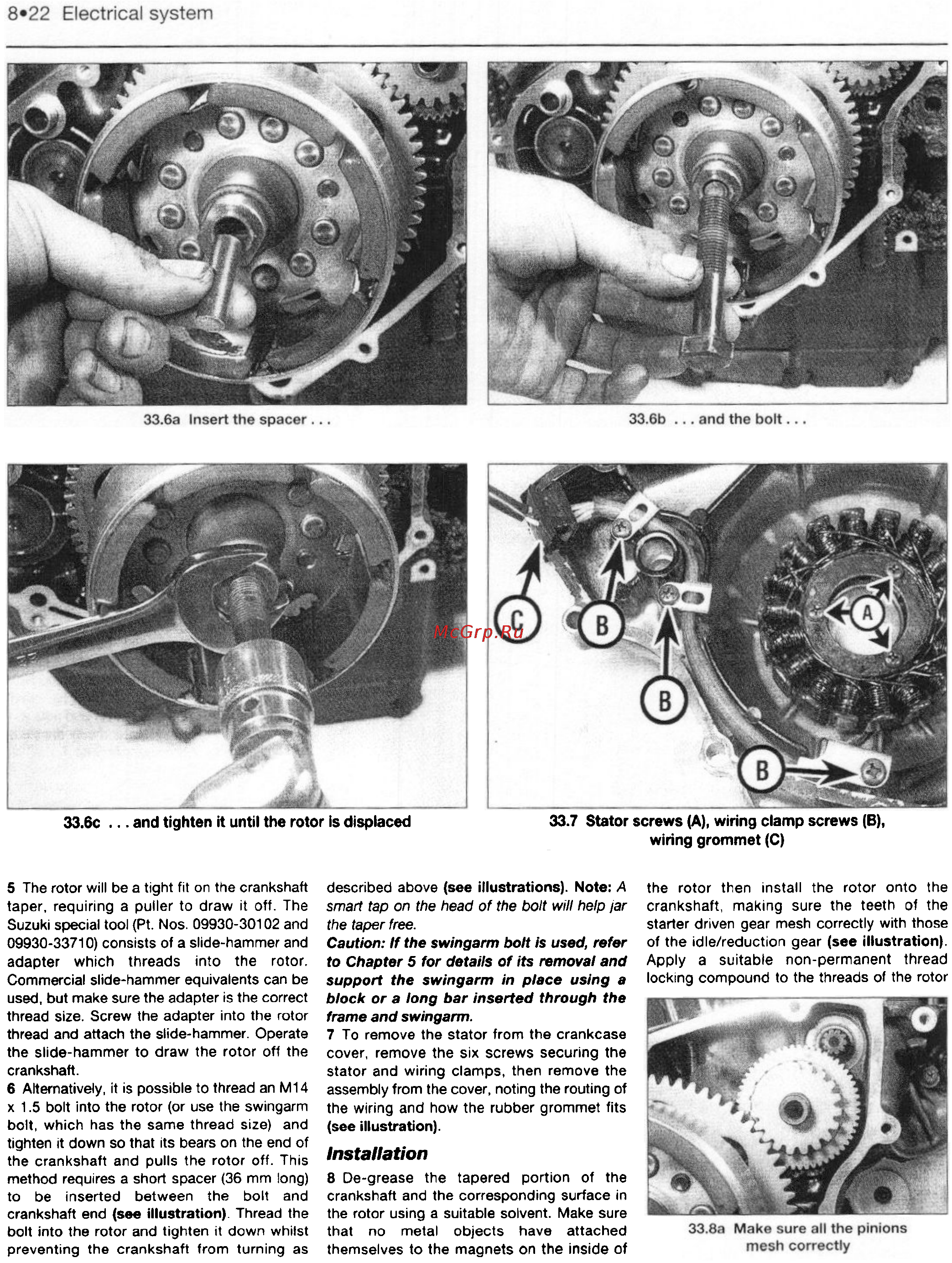

33.8c ... and tighten it until the rotor Is displaced
5 The rotor will be a tight fit on the crriahaft
taper, requiring a puller to draw it off. The
SuM! special tool (Pt. Nos. 09930-30102 and
09930-33710) consists of a slide-ham"*, and
adapter which threads into the rotor.
Coown.aaJ alkje-hammer equivalents C81 be
used, but make sure the adapter is the correct
thread size. Screw the adapter Into the rotor
ttw'ead ~ attach the slide-hammer. ~e
the slide-hammer to draw the rotor off the
crankshaft.
S Alternatively, It is possible to ttnad an M14
x 1.5 bolt into the rotor (or use the swlngarm
bolt, which has the same thread size) and
tight., it down so that its bears on the n of
the crankshaft and pulis the rotor off. This
method requires a short spacer (36 mm long)
to be inserted between the bolt and
crankshaft end (see illustration). Thread the
bolt into the rotor and tighten it down whilst
preventing the crankshaft from turning as
33.7 Stator screws (AI. wiring clamp screws {BI,
wiring grommet {CI
the rotor then install the rotor onto the
crankshaft. making sure the teeth of the
starter driven gear mesh correctly with those
of the idle/reduction gear (8M illustr8t1on).
Apply a suitable non-permanent thread
locking compound to the threads of the rotor
described above (see illustrations). Note: A
smart tap on the head of the bolt will help jar
the taper free.
Caution: « the swingarm bolt Is used, refer
to Chapter 5 for details of Its removal and
support the swingarm in place using a
block or a long bar Inserted through the
frame and swlngarm.
7 To remove the stator from the crankcase
cover, remove the six screws securing the
stator and wiring clamps, then remove the
assembly from the cover. noting the routing of
the wiring and how the rubber grommet fits
(see illustration).
Installation
8 De-grease the tapered portion of the
crankshaft and the corresponding surface in
the rotor using a suitable solvent. Make sure
that no metal objects have attached
themselves to the magnets on the Inside of
