1.3 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
•
If you have received the wrong model or the drive does not function properly, contact your supplier.
u
Nameplate
MADE IN JAPAN
PRG : 1010
IND.CONT.EQ.
7J48 B
CIMR-UU4A0011AUA
:
: AC3PH 380-500V 50/60Hz 8.7A/10A
: AC3PH 0-475V 0-400Hz 9.6A/11A
: 20 kg
: 6W3050-2-100
: J0065F575310100
: E131457 IP00
PASS
MODEL
REV : A
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
YASKAWA ELECTRIC CORPORATION
2-1 Kurosaki-shiroishi, Yahatanishi-Ku, Kitakyushu 806-0004 Japan
F
E
D
B
A
C
:
C/C
G
H
I
A – Normal Duty amps / Heavy Duty
amps
B – Software version
C
–
Address
<1>
D – Enclosure type
E – Serial number
F – Lot number
G – Output specifications
H – Input specifications
I – AC drive model
Refer to Figure 1.2 for details.

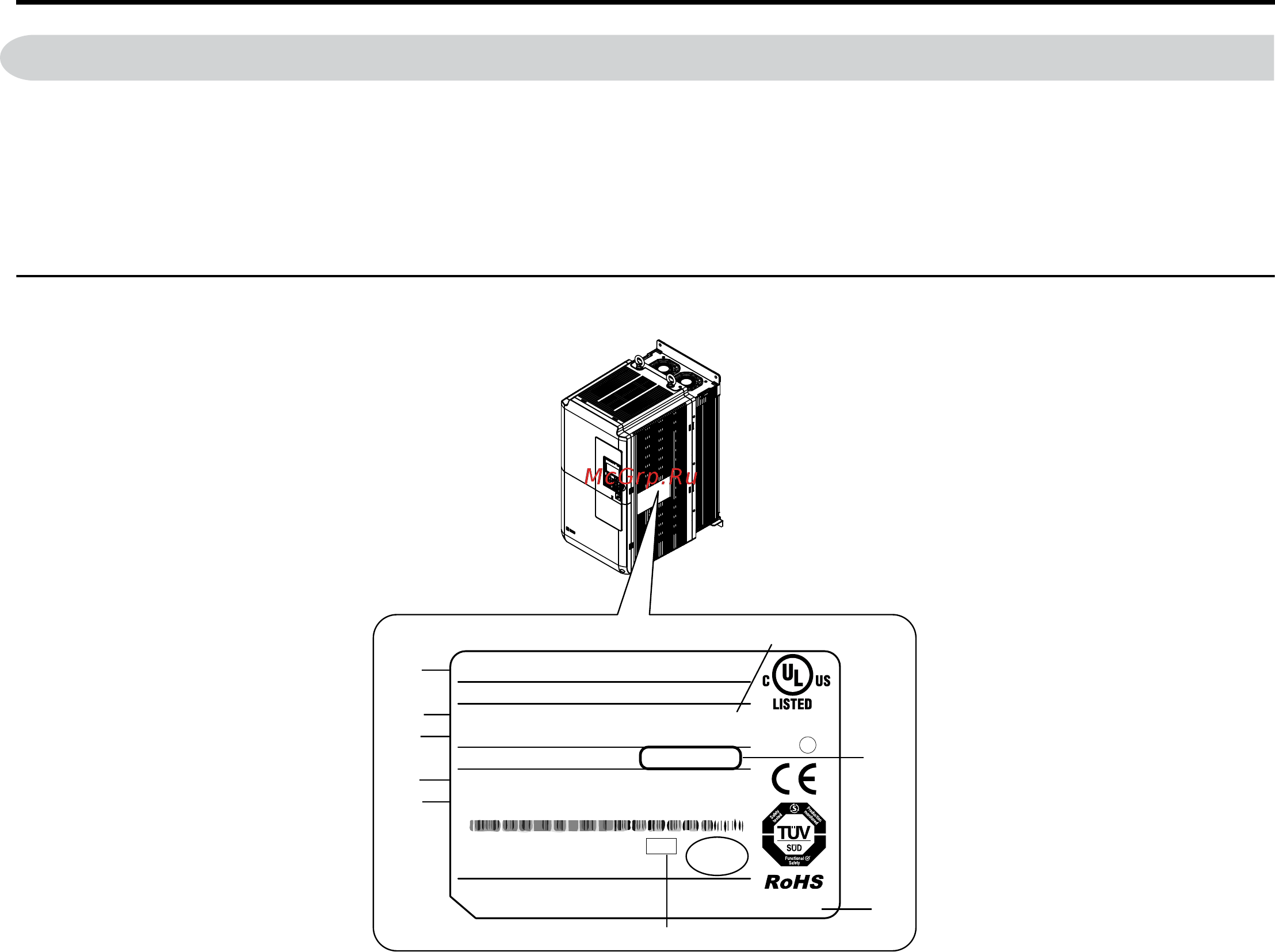

Figure 1.1 Nameplate Information Example
<1> The address of the head office of Yaskawa Electric Corporation (responsible for product liability) is shown on the nameplate.
