Terminal Configuration

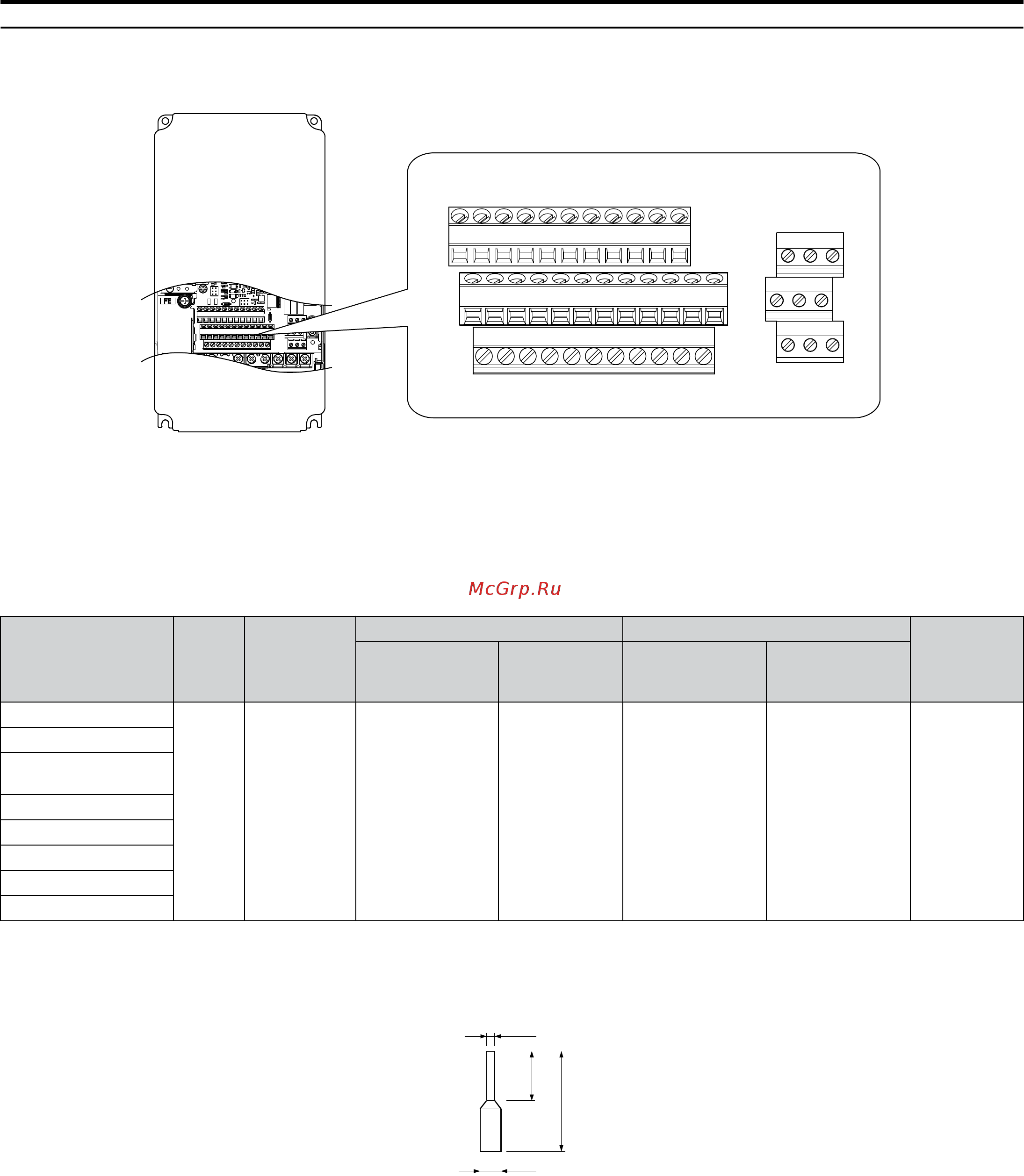

The control circuit terminals are arranged as shown in Figure 3.27.
MA MB MC
M1 M2 M5
M3 M4 M6
E(G)
HC H1 H2 DM+ DM- IG R+ R- S+ S-
S1 S2 S3 S4 S5 S6 S7 S8 SN SC SP
V+ AC V- A1 A2 A3 FM AM AC MP RP AC
Figure 3.27 Control Circuit Terminal Arrangement
n
Wire Size and Torque Specifications
Select
appropriate
wire
type and gauges from Table 3.9. For simpler and more reliable wiring, use crimp ferrules on the wire
ends. Refer to Table 3.10 for ferrule terminal types and sizes.
Table 3.9 Wire Gauges
Terminal
Screw
Size
Tightening
Torque
N•m
(lb. in)
Bare Wire Terminal Ferrule-Type Terminal
Wire Type
Recomm.
wire size
mm
2
(AWG)
Applicable
wire size
mm
2
(AWG)
Recomm.
wire size
mm
2
(AWG)
Applicable
wire size
mm
2
(AWG)
S1-S8, SC, SN, SP
M3
0.5 to 0.6
(4.4 to 5.3)
0.75 (18)
Stranded wire:
0.2 to 1.0
(24 to 16)
Solid wire:
0.2 to 1.5
(24 to 16)
0.5 (20)
0.25 to 0.5
(24 to 20)
Shielded wire,
etc.
H1, H2, HC
RP, V+, V-, A1, A2, A3,
AC, 24 V
MA, MB, MC
M1-M6
MP, FM, AM, AC
DM+, DM-
R+, R-, S+, S-, IG
n
Ferrule-Type Wire Terminals
Yaskawa recommends using CRIMPFOX 6, a crimping tool manufactured by PHOENIX CONTACT, to prepare wire ends
with insulated sleeves before connecting to the drive. See Table 3.10 for dimensions.
d1
d2
8 mm
L
Figure 3.28 Ferrule Dimensions
3.9 Control Circuit Wiring
90
YASKAWA ELECTRIC SIEP C710636 04C U1000 Industrial MATRIX Drive Technical Manual
