Planet SGSW-24240 [212/328] User s manual of wgsw 24040 wgsw 24040r sgsw 24040 sgsw 24040r

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

212

4.17 Power over Ethernet (SGSW-24040P / SGSW-24040P4)

Providing up to 24 PoE, in-line power interface, the SGSW-24040P / SGSW-24040P PoE Switch can easily build a power

central-controlled IP phone system, IP Camera system, AP group for the enterprise. For instance, 24 camera / AP can be easily

installed around the corner in the company for surveillance demands or build a wireless roaming environment in the office.

Without the power-socket limitation, the PoE Switch makes the installation of cameras or WLAN AP more easily and efficiently.

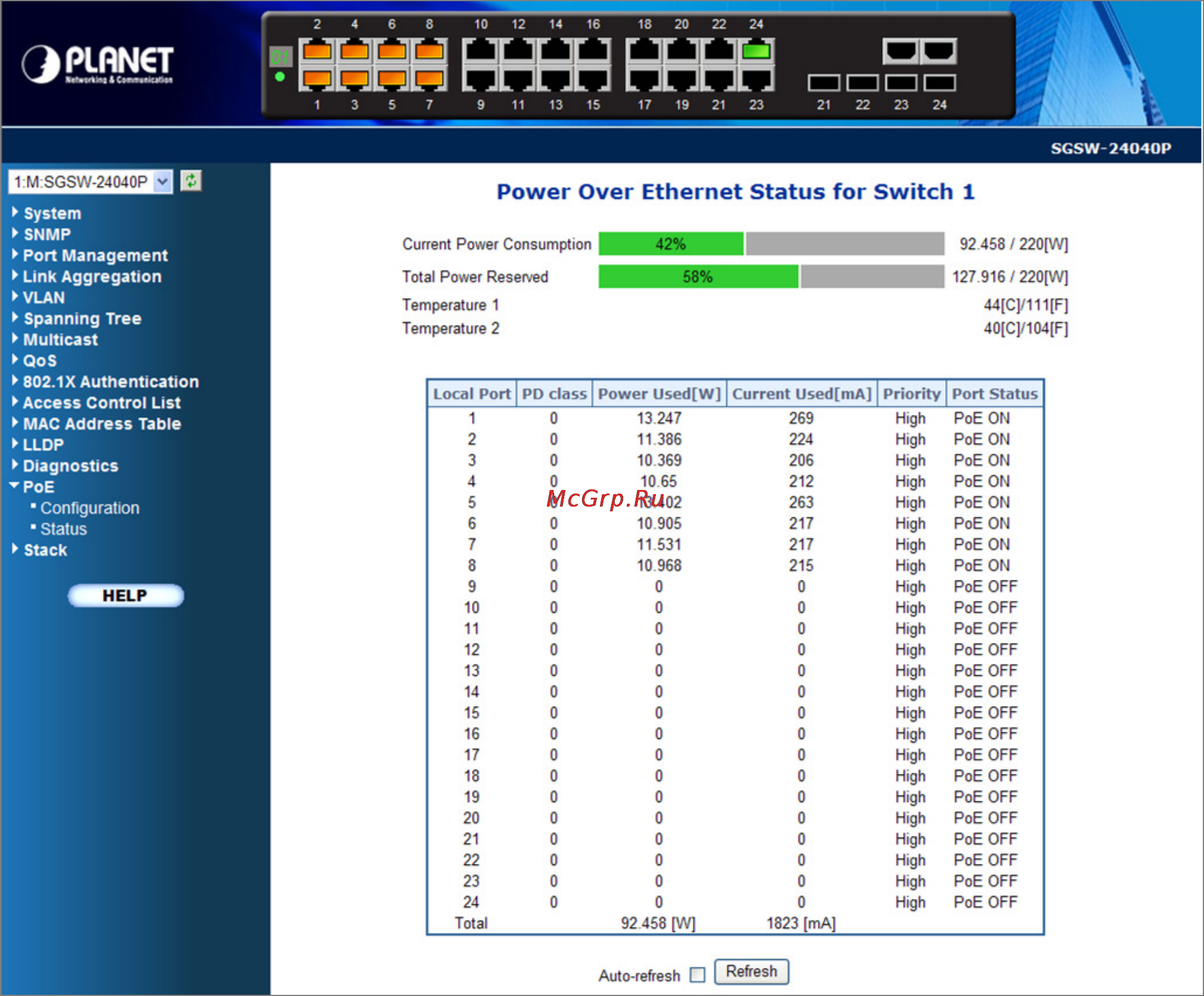

Figure 4-17-1 Power over Ethernet Status
