Planet SGSW-24240 [66/328] Configuration upload

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

4.2.8 Configuration Upload

This function allows backup and reload the current configuration of the Managed Switch to the local management station. The

screen in Figure 4-2-13 appears.

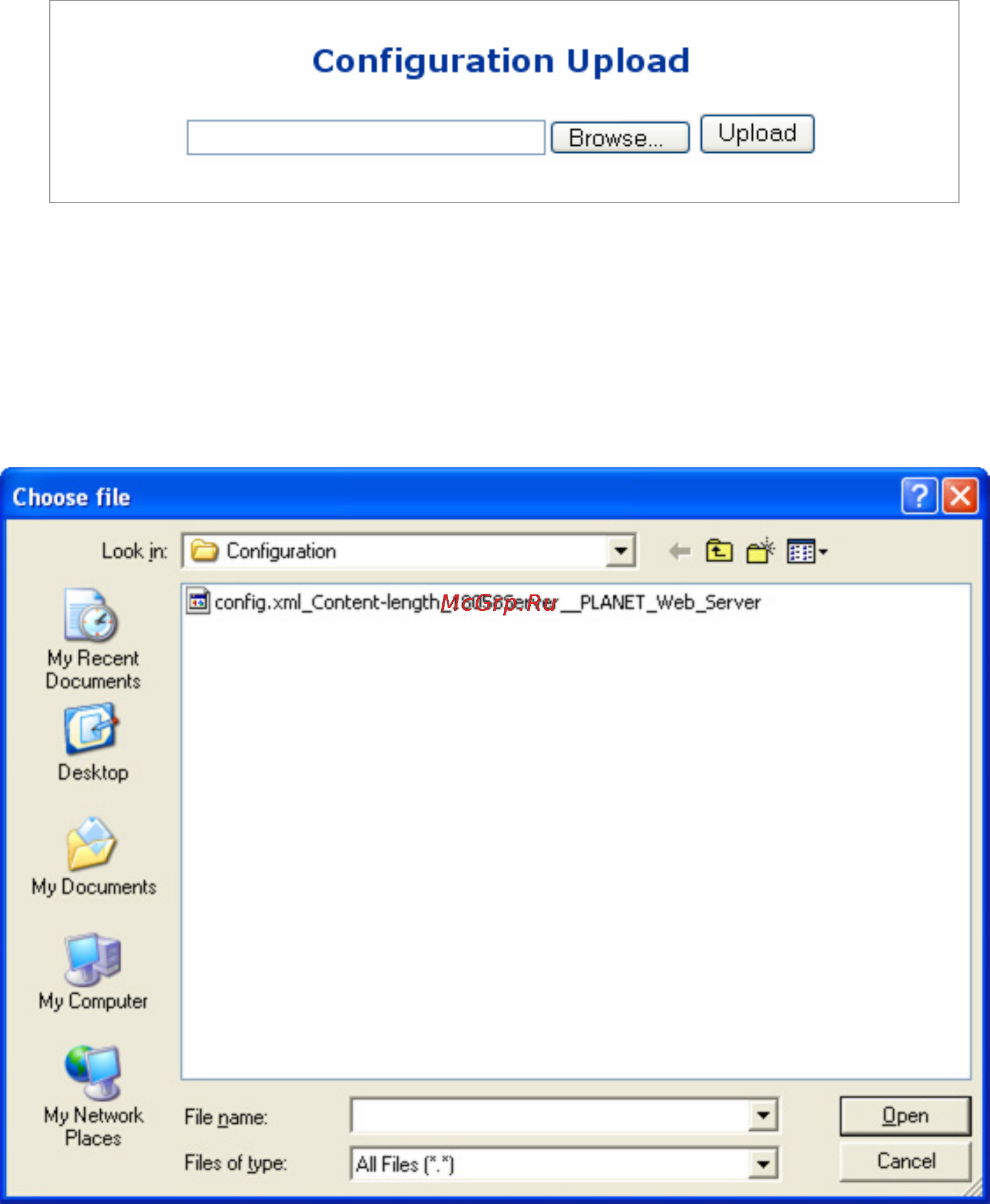

Figure 4-2-13 Configuration Upload page screenshot

 Configuration Upload

1. Click the “Browse” button of the main page, the system would pop up the file selection menu to choose saved

configuration.

Figure 4-2-14 Windows file selection menu popup

2. Select on the configuration file then click “Upload”, the bottom of the browser shows the upload status.

3. After down, the main screen appears “Transfer Completed”.
