4.2.1 System Information
The System Info page provides information for the current device information. System Info page helps a switch administrator to
identify the hardware MAC address, software version and system uptime. The screen in Figure 4-2-1 appears.

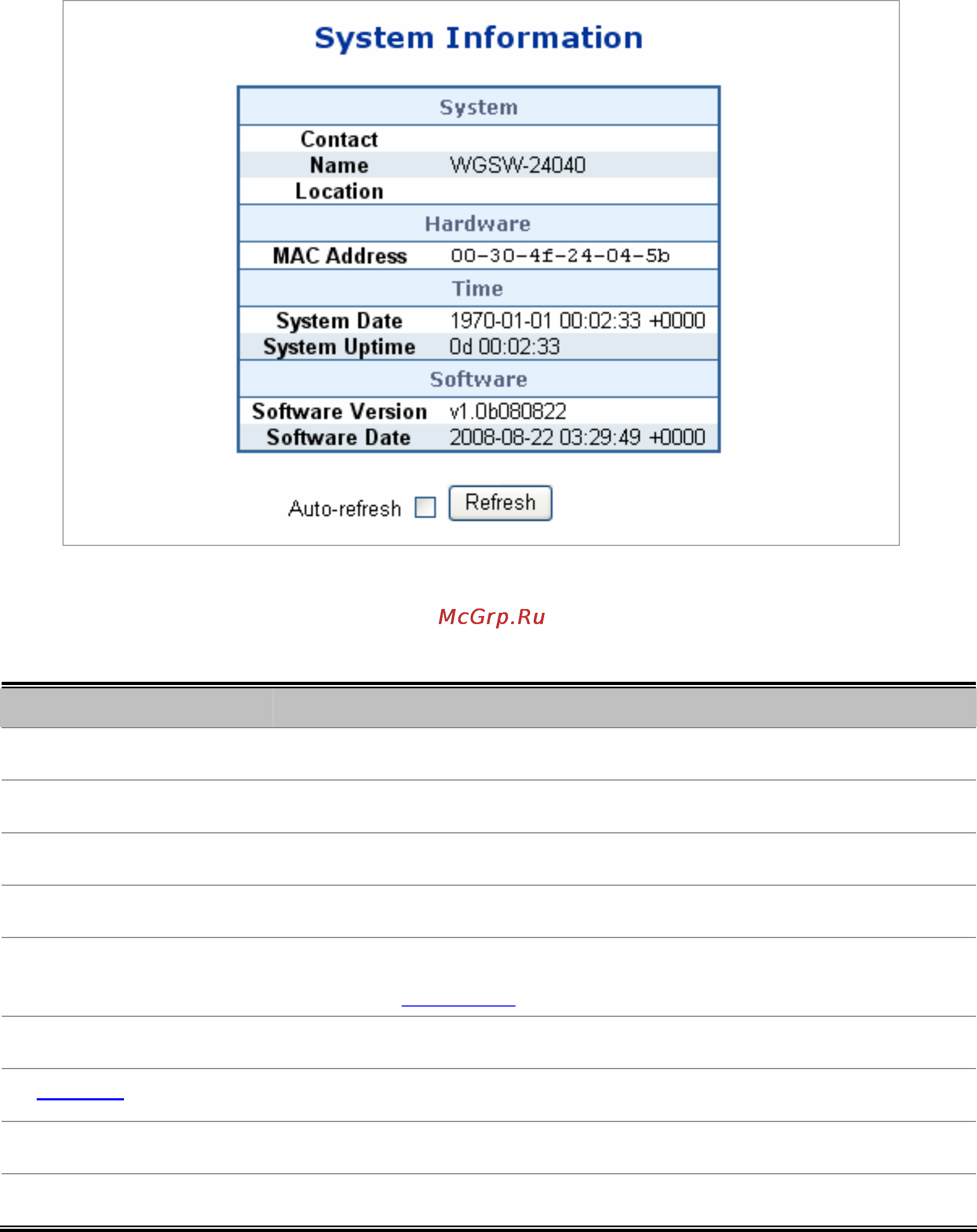

Figure 4-2-1 System Information page screenshot
The page includes the following fields:
Object Description
• Contact
The system contact configured in SNMP \ System Information \ System Contact.
• Name
The system name configured in SNMP \ System Information \ System Name.
• Location
The system location configured in SNMP \ System Information \ System Location
• MAC Address
The MAC Address of this switch.
• System Date
The current (GMT) system time and date. The system time is obtained through
the configured
SNTP Server, if any.
• System Uptime
The period of time the device has been operational.
• Switch ID
The switch ID. (SGSW-Series Only)
• Software Version
The software version of the switch.
• Software Date
The date when the switch software was produced.
Buttons
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
