User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

223

terminal-emulation program for connecting to the terminal serial port. A workstation attachment under UNIX can use an emulator

such as TIP

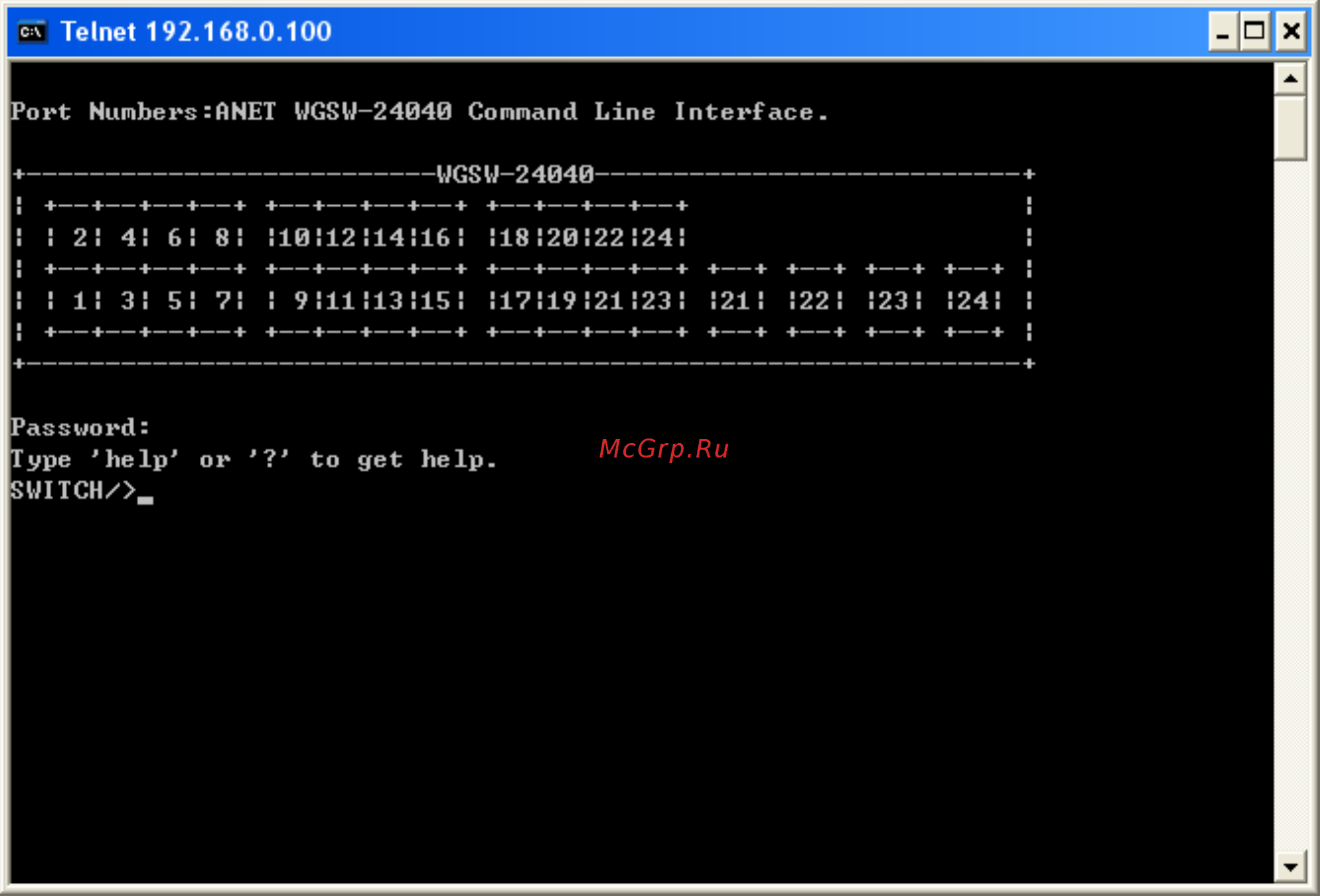

5.2 Telnet login

The Managed Switch also supports telnet for remote management. The switch asks for user name and password for remote
