User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

■ 7-Segment LED Display

Stack ID (1~9, A~F, 0): To indicate the Switch ID of each SGSW Managed Switch. Switch IDs are used to uniquely identify

the Managed Switches within a stack. The Switch ID of each Managed Switch is shown on the display on the front of the

Managed Switch and is used widely in the web pages as well as in the CLI commands of the Stack group.

Stack ID 1 2 3 4 5 6 7 8 9 A. B. C. D. E. F. 0

Switch ID 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

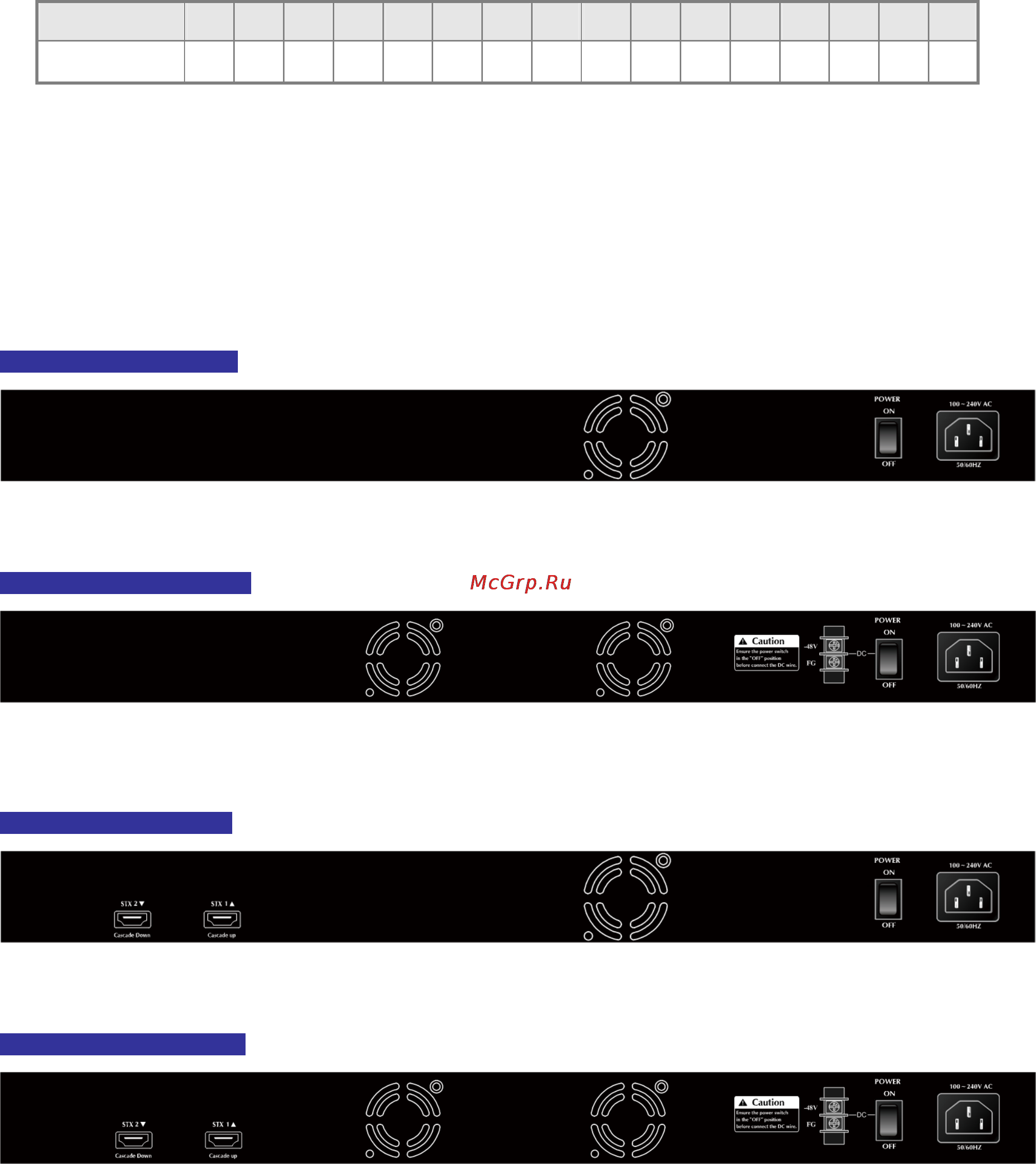

2.1.3 Switch Rear Panel

The rear panel of the Managed Switch indicates an AC inlet power socket, which accept input power from 100 to 240V AC,

50-60Hz. Figure 2-5 to Figure 2-8 shows the rear panel of these Managed Switches

WGSW-24040 Rear Panel

Figure 2-9 Rear panel of WGSW-24040

WGSW-24040R Rear Panel

Figure 2-10 Rear panel of WGSW-24040R

SGSW-24040 Rear Panel

Figure 2-11 Rear panel of SGSW-24040

SGSW-24040R Rear Panel

Figure 2-12 Rear panel of SGSW-24040R
