![Planet SGSW-24240 [183/328] Acl ports configuration](/views2/1070828/page183/bgb7.png)
User’s Manual of WGSW-24040 / WGSW-24040R
SGSW-24040 / SGSW-24040R
183
4.11.5 ACL Ports Configuration
Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames received on a port unless the
frame matches a specific ACE. The settings relate to the currently selected stack unit, as reflected by the page header.
The ACL Ports Configuration screen in Figure 4-11-14 appears.

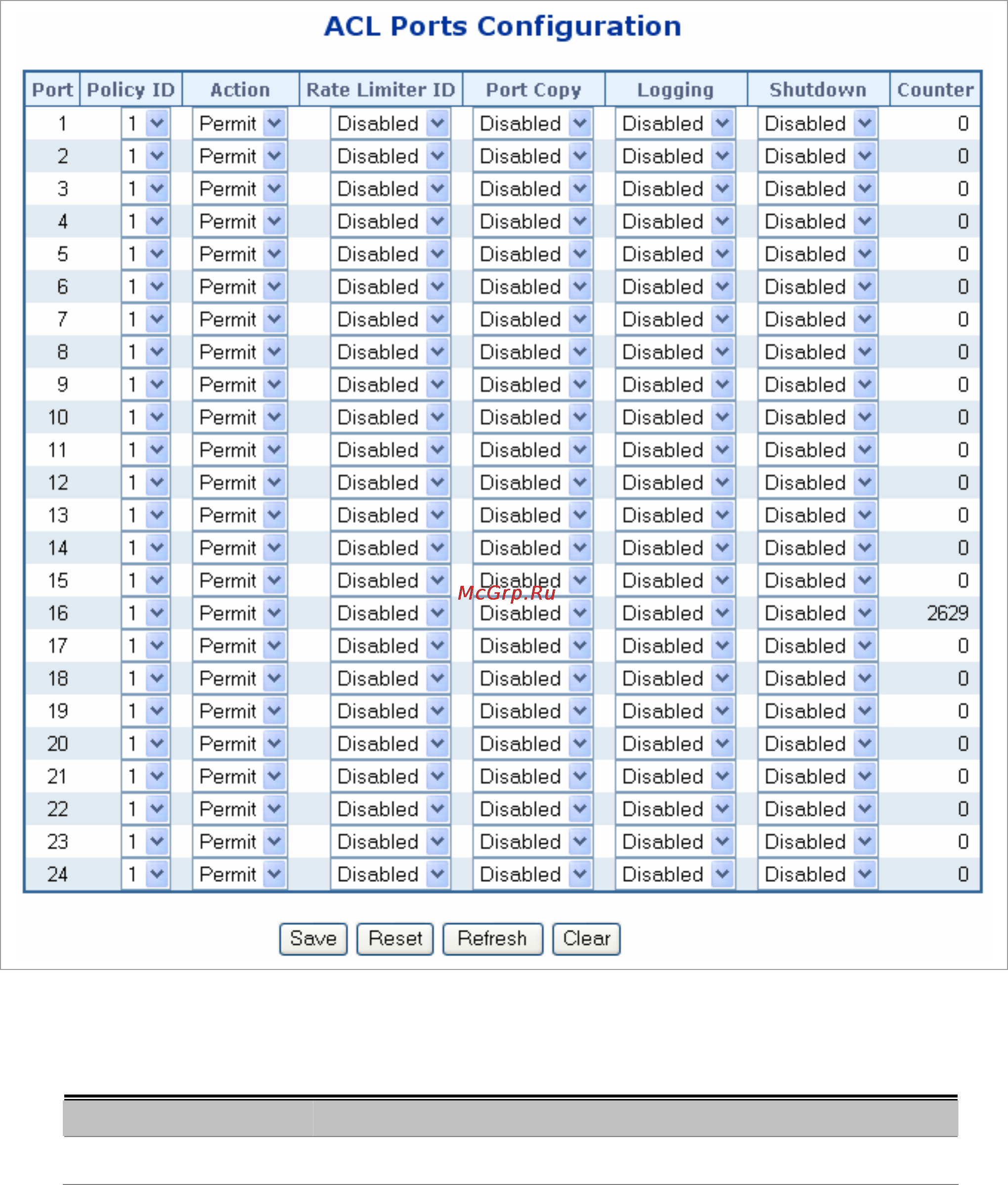

Figure 4-11-14 ACL Ports Configuration page screenshot
The page includes the following fields:
Object Description
• Port
The logical port for the settings contained in the same row.
