User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

131

4.8.4.3 Set up ToS Precedence Mapping

Set up the traffic class mapping to the precedence part of ToS (3 bits) when receiving IPv4/IPv6 packets. The screen in Figure

4-8-10 appears.

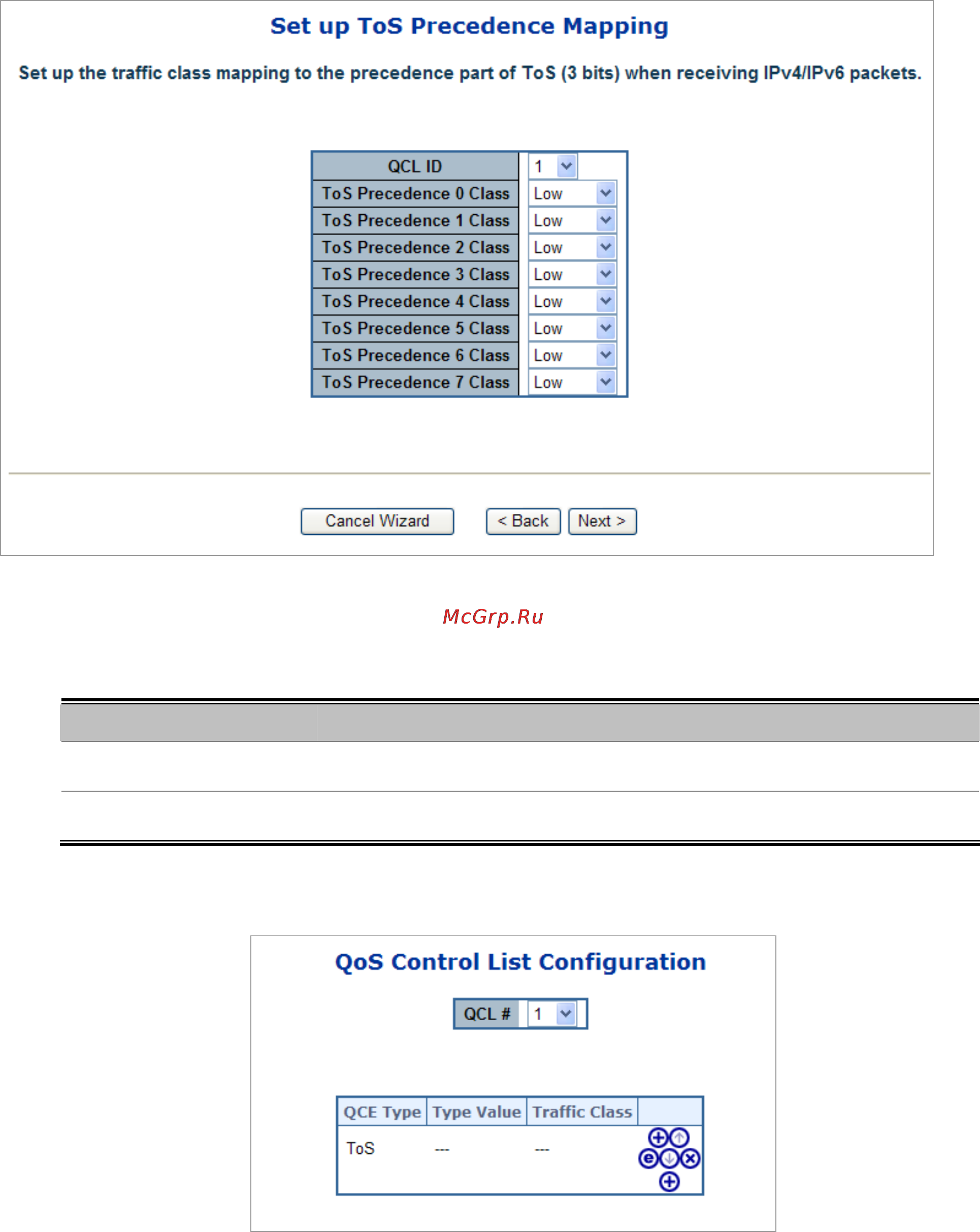

Figure 4-8-10 Set up ToS Precedence Mapping page screenshot

The page includes the folling fileds:

Object Description

• QCL ID

Select the QCL ID to which this QCE applies.

• ToS Precedence Class

Select a traffic class of Low, Normal, Medium, or High to apply to the QCE.

The QCL configuration wizard is finished, and the new configuration is ready for use.
