Planet SGSW-24240 [201/328] User s manual of wgsw 24040 wgsw 24040r sgsw 24040 sgsw 24040r

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

201

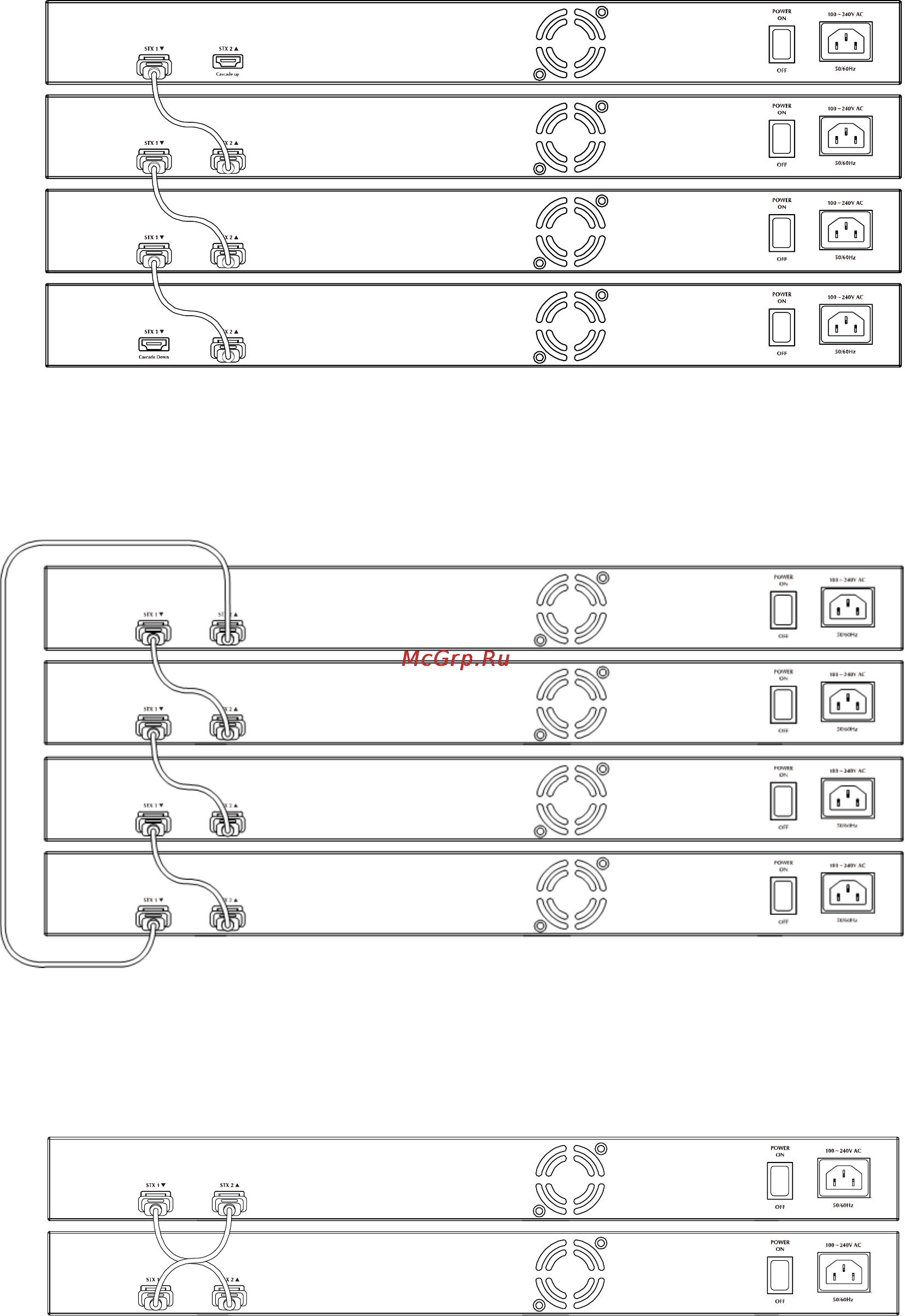

 Chain Stack: A chain of switches, that is, no redundant forwarding paths.

Figure 4-16-1 Chain Stack topology

 Ring Stack: A ring of switches, thereby providing redundant forwarding paths.

Figure 4-16-2 Ring Stack topology

 Back-to-Back Stack : Two switches interconnected on both stacking ports.

Figure 4-16-3 Back to back Stack topology
