User’s Manual of WGSW-24040 / WGSW-24040R
SGSW-24040 / SGSW-24040R
162

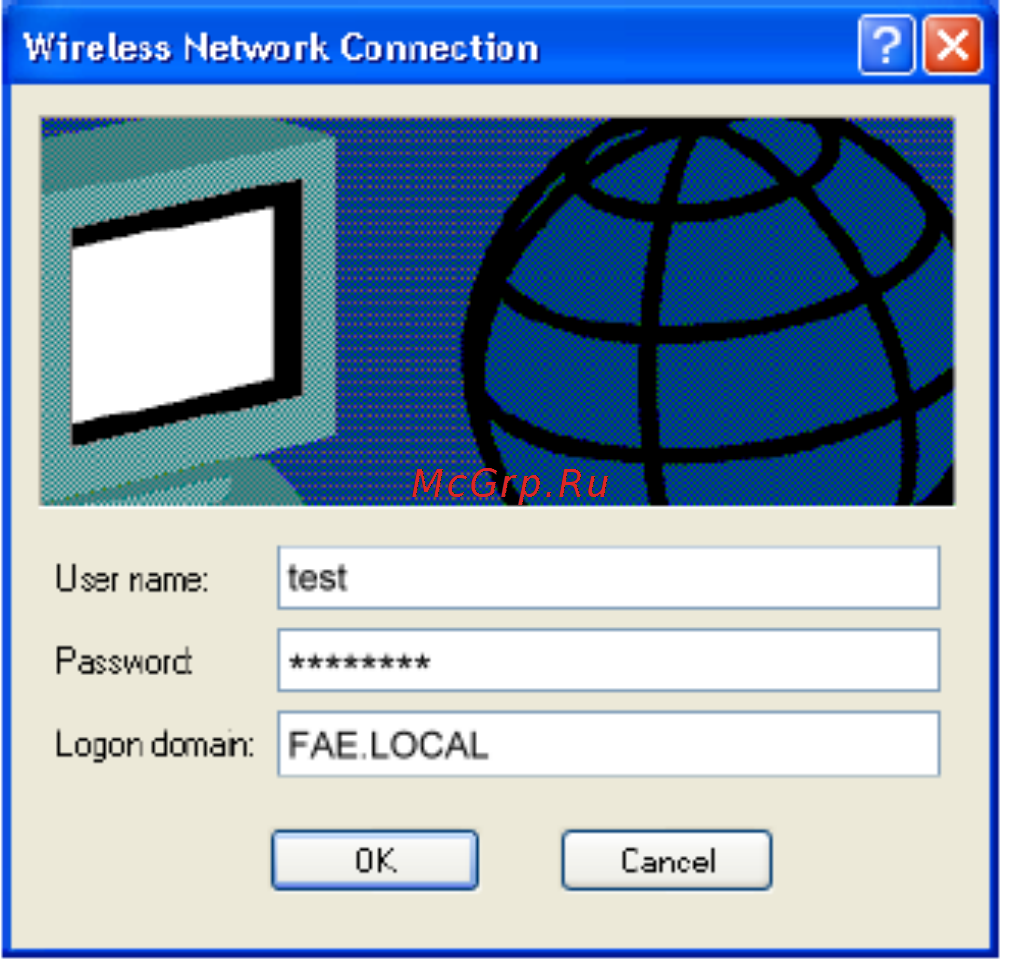

9. Enter the user name, password and the logon domain that your account belongs.
10. Click “OK” to complete the validation process.
Figure 4-10-14
