Planet SGSW-24240 [159/328] User s manual of wgsw 24040 wgsw 24040r sgsw 24040 sgsw 24040r

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

159

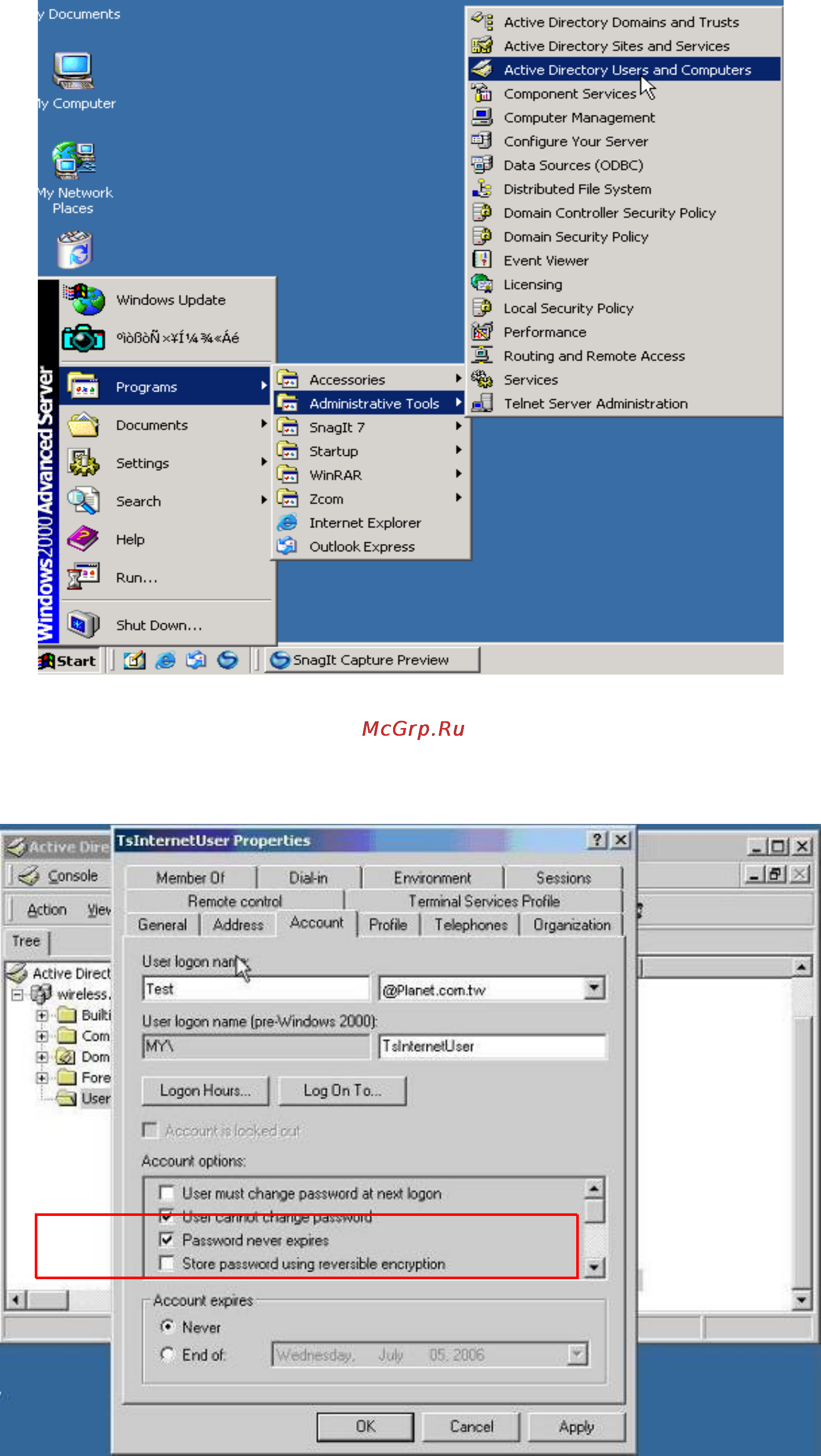

Figure 4-10-9 Windows Server RADIUS Server setting path

5. Enter ” Active Directory Users and Computers”, create legal user data, the next, right-click a user what you created to

enter properties, and what to be noticed:

Figure 4-10-10 TsInternetUser Properties screen
