User’s Manual of WGSW-24040 / WGSW-24040R
SGSW-24040 / SGSW-24040R
65

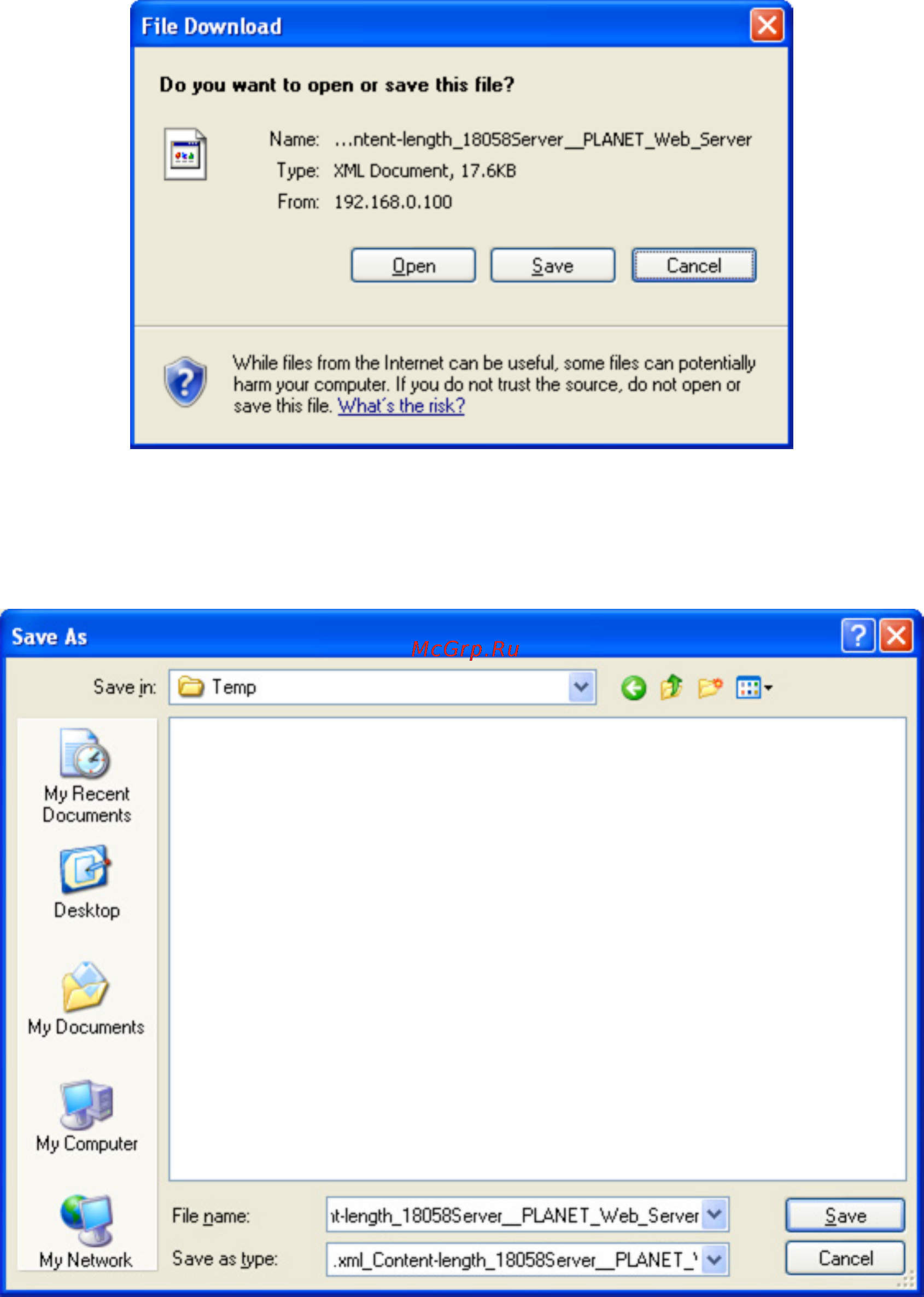

Figure 4-2-11 File Download screen
2. Chose the file save path in management workstation.
Figure 4-2-12 File save screen
