4.5.3 LACP System Status

This page provides a status overview for all LACP instances. The LACP Status page display the current LACP aggregation

Groups and LACP Port status . The LACP System Status screen in Figure 4-5-5 appears.

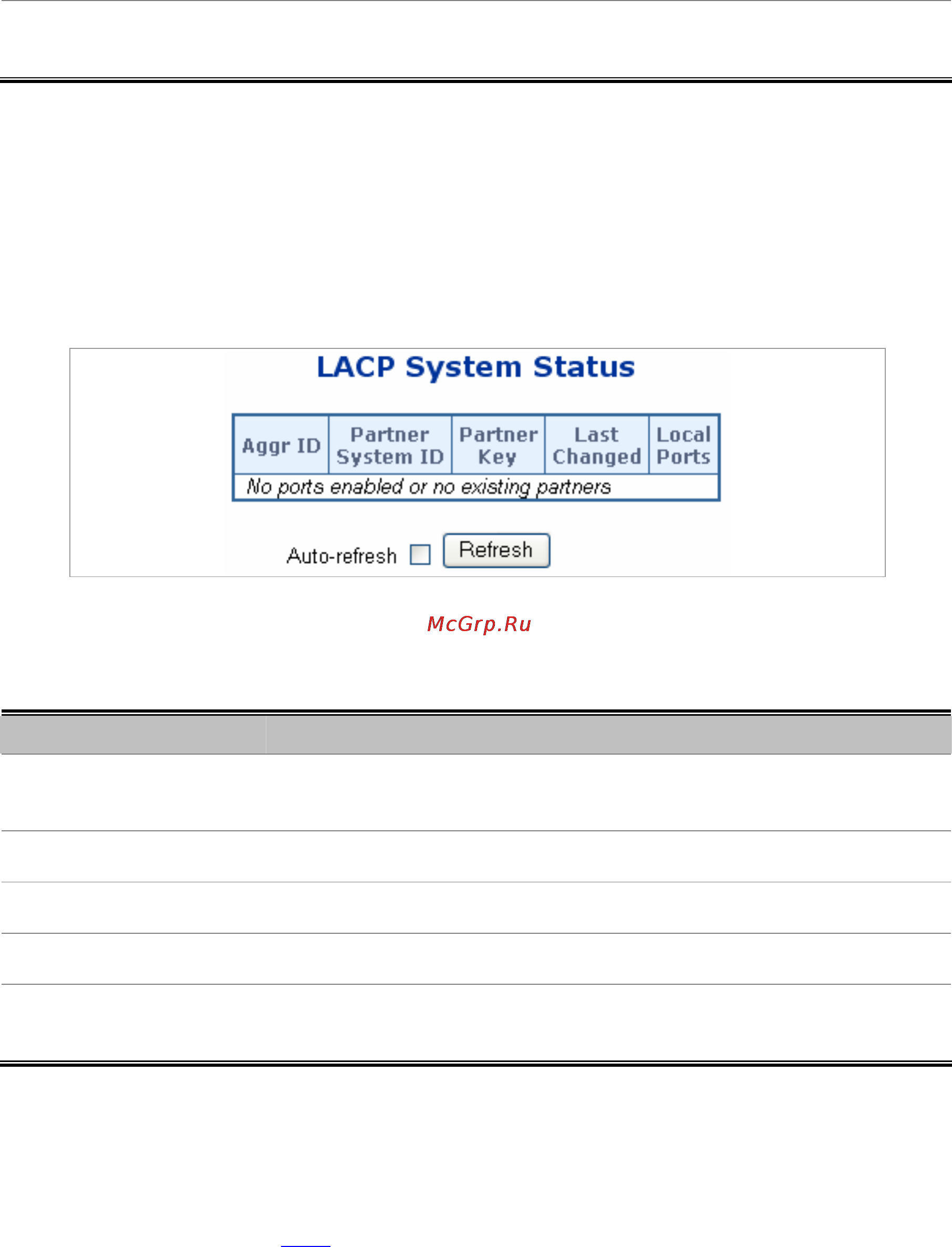

Figure 4-5-5 LACP System Status page screenshot

The page includes the following fields:

Object Description

• Aggr ID

The Aggregation ID associated with this aggregation instance.

For LLAG the id is shown as 'isid:aggr-id' and for GLAGs as 'aggr-id'

• Partner System ID

The system ID (MAC address) of the aggregation partner.

• Partner Key

The Key that the partner has assigned to this aggregation ID.

• Last changed

The time since this aggregation changed.

• Local Ports

Shows which ports are a part of this aggregation for this switch/stack.

The format is: "Switch ID:Port".

4.5.4 LACP Port Status

This page provides a status overview for LACP status for all ports.

The LACP Port Status screen in Figure 4-5-6 appears.
