Planet SGSW-24240 [150/328] X and mac based authentication port configuration

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

150

4.10.3 802.1X and MAC-Based Authentication Port Configuration

When 802.1X is enabled, you need to configure the parameters for the authentication process that runs between the client and

the switch (i.e., authenticator), as well as the client identity lookup process that runs between the switch and authentication

server. These parameters are described in this section.

The 802.1X Port Configuration screen in Figure 4-10-4 appears.

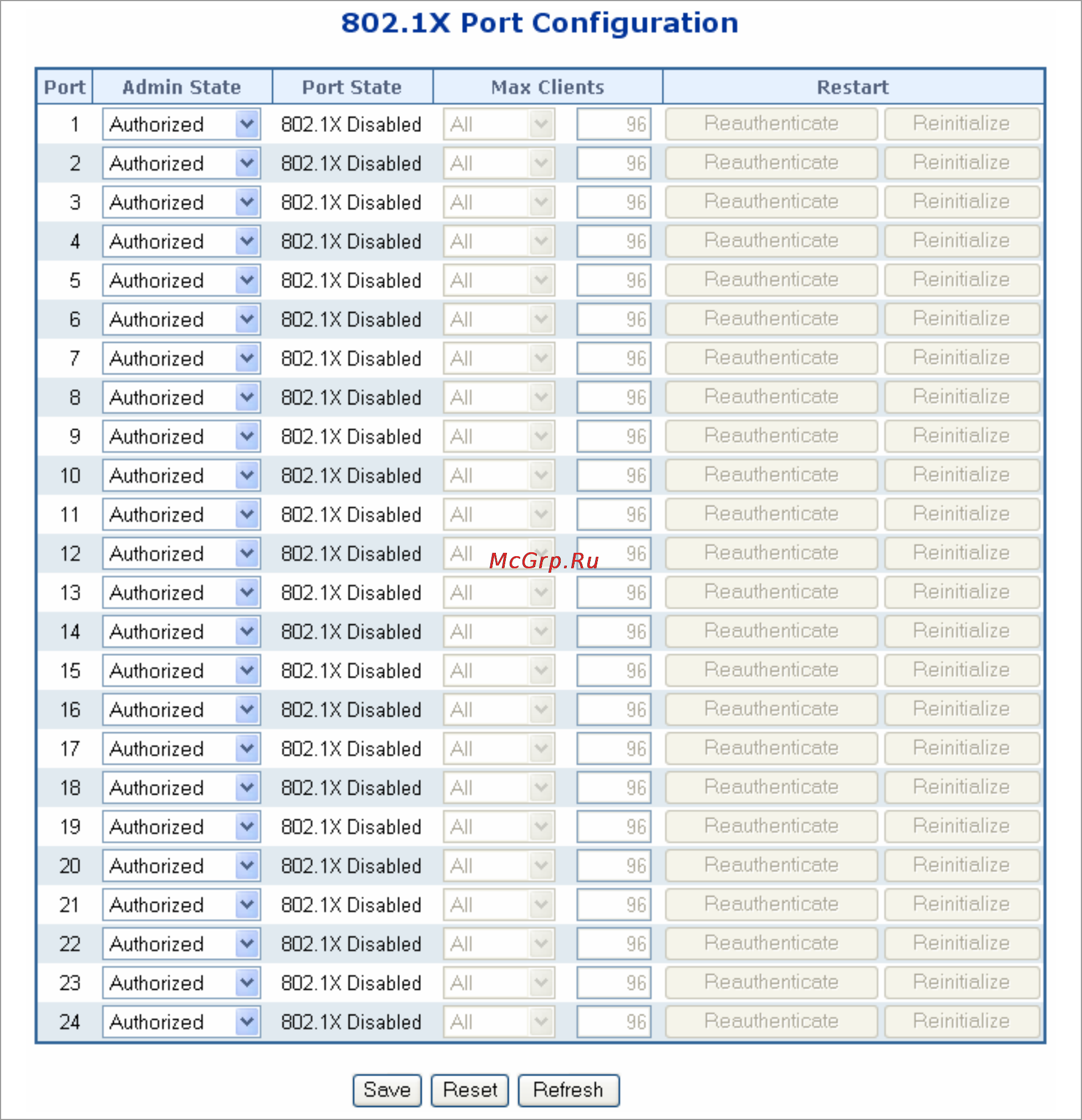

Figure 4-10-4 802.1X Port Configuration page screenshot

The table has one row for each port on the selected switch in the stack and a number of columns, which are:
