Planet SGSW-24240 [161/328] User s manual of wgsw 24040 wgsw 24040r sgsw 24040 sgsw 24040r

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

161

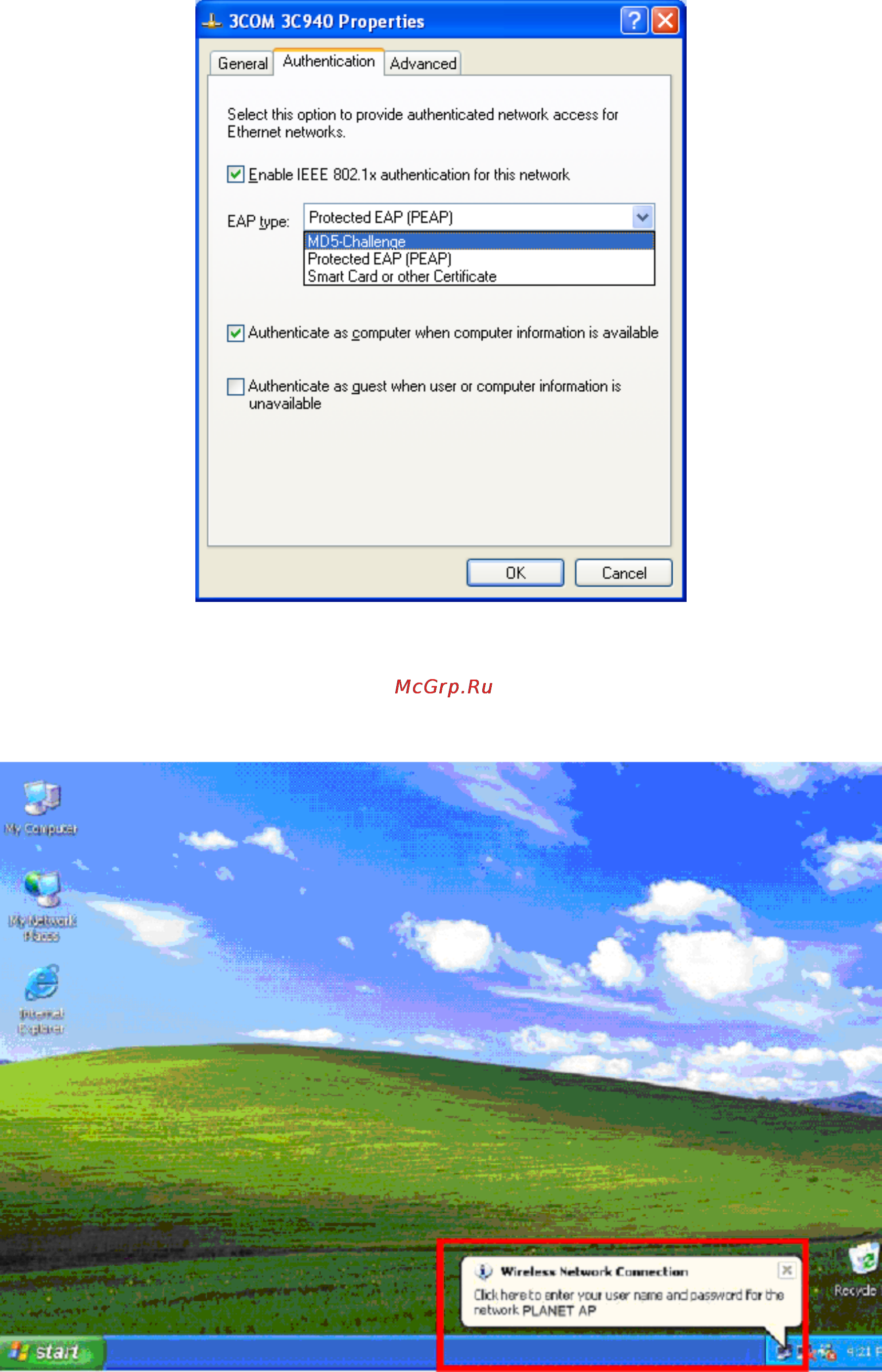

Figure 4-10-12

7. Click “OK”.

8. When client has associated with the Managed Switch, a user authentication notice appears in system tray. Click on the

notice to continue.

Figure 4-10-13
