• Outdoor Units • VRV HEAT RECOVERY • REYQ8-48P7Y1B
1
4
• VRV Systems • Outdoor Units
102

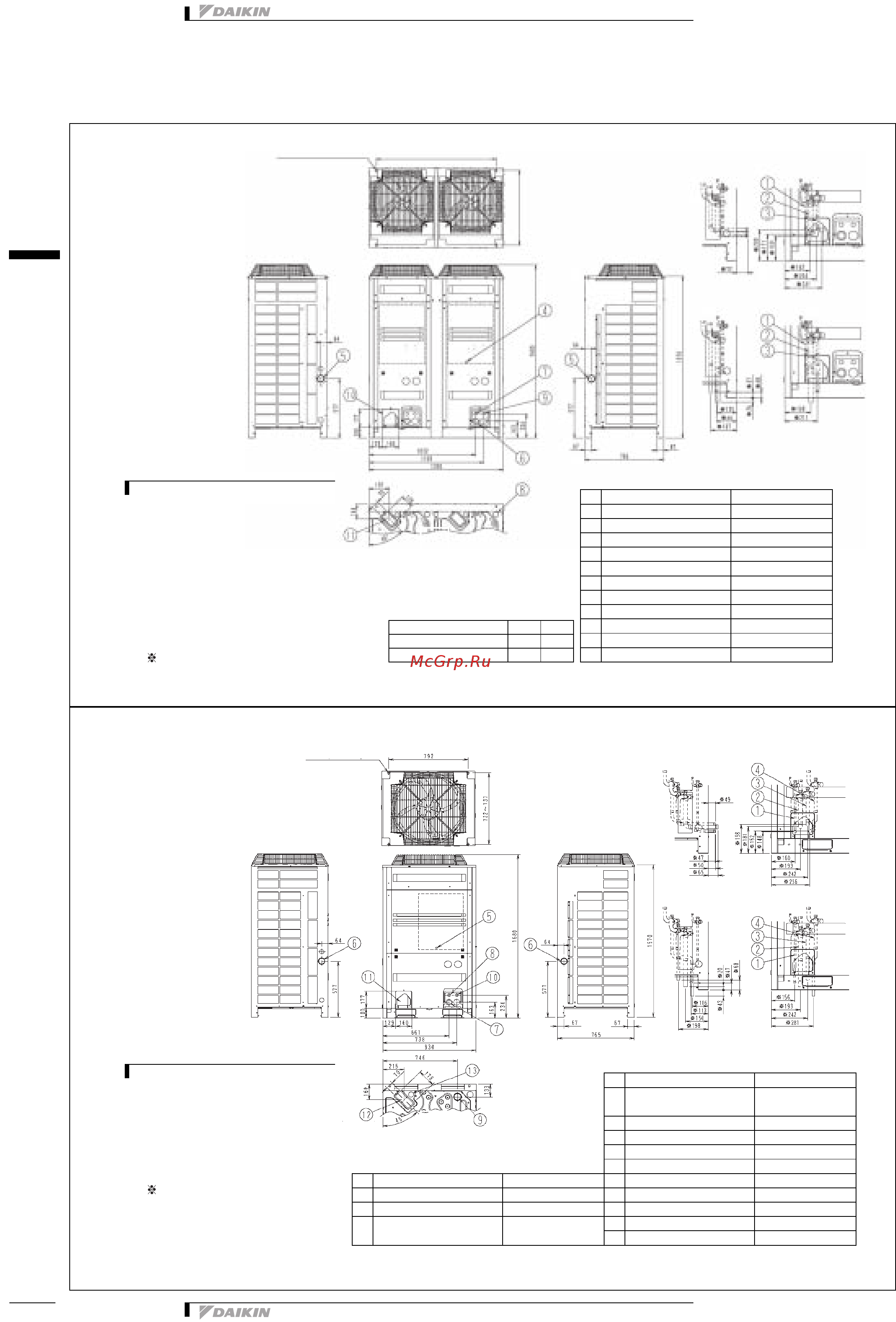

4 Dimensional drawing & centre of gravity
4 - 1 Dimensional drawing
REYQ8, 10, 12, 14, 16P
3D057573C
Nr Parts name Remarks
1 Pipe routing hole (bottom) See note 1.
2 Pipe routing hole (front) See note 1.
3 Wire routing hole (front) ∅ 27
4
Power cord routing hole (bottom)
∅ 50
5 Power cord routing hole (front) ∅ 27
6 Power cord routing hole (front) ∅ 45
7 Power cord routing hole (side) ∅ 62
8 Grounding terminal
inside of switch box (M8)
9
Hight and low pressure gas pipe connection port
See note 2, 3.
10
Suction gas pipe connection port
See note 2, 3.
11 Liquid pipe connection port See note 2, 3.
AA AB
REYQ8, 10, 12PY1 (E) (B)
129 32
REYQ14, 16PY1 (E) (B) 131 38
722 ~ 737
(Pitch of foundation bolt holes)
(DETAIL FOR FRONT SIDE)
(DETAIL FOR BOTTOM SIDE)
knock-out hole
knock-out hole
knock-out hole
knock-out hole
knock-out hole
NOTES
1 For piping connection method (front and bottom sides) see
the installation manual.
2 High and low pressure gas pipe
∅
15.9 Brazing connection ... REYQ8PY1 (E) (B)
∅
19.1 Brazing connection ... REYQ10, 12PY1 (E) (B)
∅
22.2 Brazing connection ... REYQ14, 16PY1 (E) (B)
Suction gas pipe
∅
19.1 Brazing connection ... REYQ8PY1 (E) (B)
∅
22.2 Brazing connection ... REYQ10PY1 (E) (B)
∅
28.6 Brazing connection ... REYQ12, 14PY1 (E) (B)
Liquid pipe
∅
9.5 Brazing connection ... REYQ8, 10PY1 (E) (B)
∅
12.7 Brazing connection ... REYQ12, 14, 16PY1 (E) (B)
3 Piping connection diameter for field connection.
4 shows the dimensions after fixing the accesory pipes.
1162
(Pitch of foundation bolt holes)
4-15 x 22.5-mm-Oblong holes
foundation bolt hole
REMQ8,10,12P
3D057584A
(Pitch of foundation bolt holes)
(DETAIL FOR FRONT SIDE)
(DETAIL FOR BOTTOM SIDE)
(knock-out hole)
(knock-out hole)
(knock-out hole)
(knock-out hole)
(knock-out hole): pressure equalizer pipe only.
NOTES
1 For piping connection method (front and bottom sides) see
the installation manual.
2 Suction gas pipe
∅
22.2 Brazing connection ... REMQ8, 10PY1 (E)
∅
28.6 Brazing connection ... REMQ12PY1 (E)
Liquid pipe
∅
9.5 Brazing connection ... REMQ8, 10PY1 (E)
∅
12.7 Brazing connection ... REMQ1PY1 (E)
3 Piping connection diameter for field connection.
4 shows the dimensions after fixing the accesory pipes.
(knock-out hole)
No. Parts name Remarks
4
Pressure equalizer pipe
connection port
∅
19.1
Brazing connection.
See note 3
5
Grounding terminal
inside of switch box (M8)
6 Power cord routing hole (side) ∅ 62
7 Power cord routing hole (front) ∅ 45
8 Power cord routing hole (front) ∅ 27
No. Parts name Remarks
9
Power cord routing hole (bottom)
∅ 65.5
1 Liquid pipe connection port. See note 2.3 10 Wire routing hole (front) ∅ 27
2
Suction gas pipe connection port.
See note 2.3 11 Pipe routing hole (front) See note 1.
3
High and low pressure gas pipe
connection port
∅
19.1
Brazing connection.
See note 3
12 Pipe routing hole (bottom) See note 1.
13
Pipe routing hole (bottom) ∅ 50 See note 1.
(Pitch of foundation bolt holes)
4-15 x 22.5-mm-Oblong holes
(foundation bolt hole)
