• Outdoor Units • VRV HEAT RECOVERY • REYQ8-48P7Y1B
1
6
• VRV Systems • Outdoor Units
116

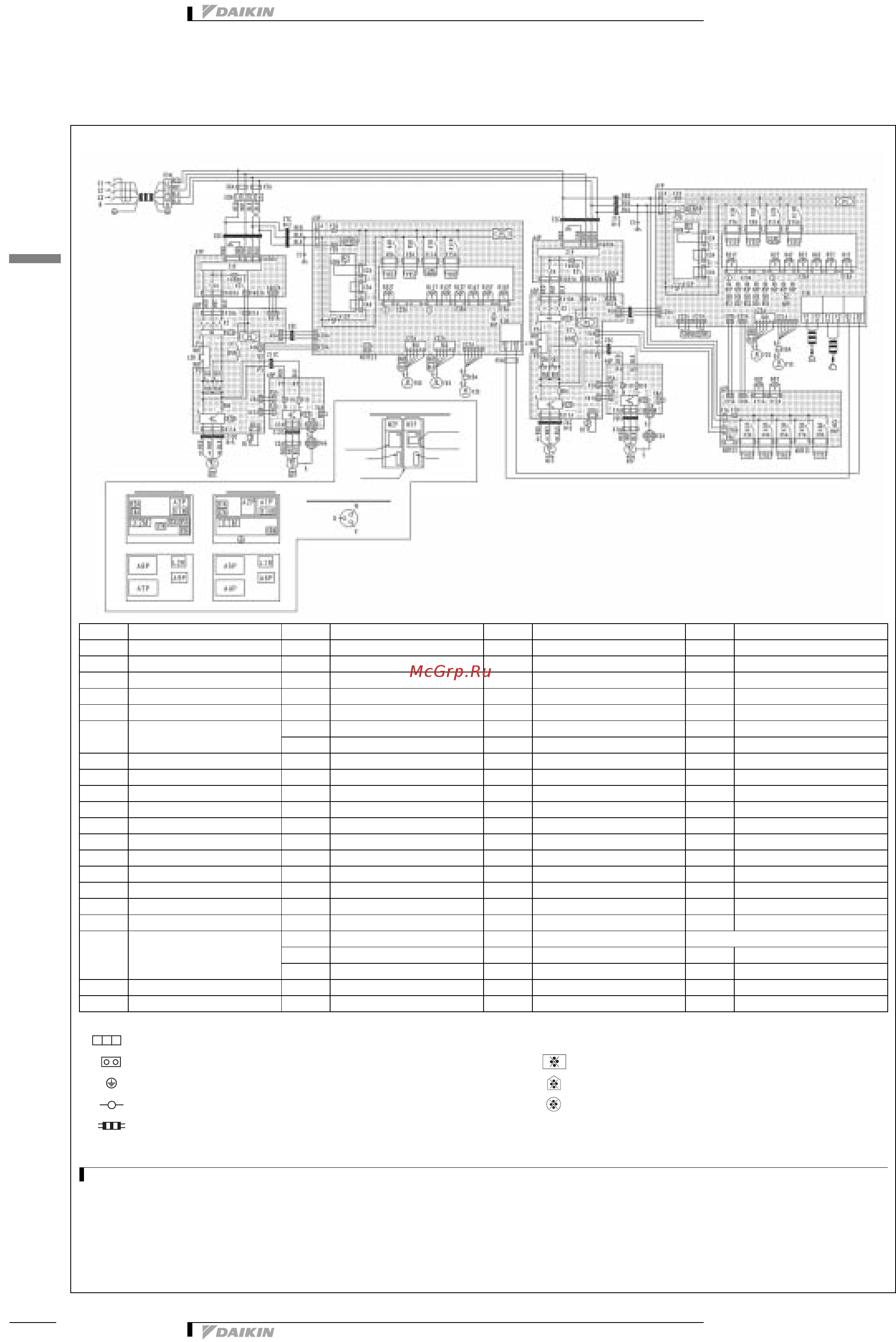

6 Wiring diagram
6 - 1 Wiring diagram
REYQ14, 16P
NOTES
1 This wiring diagram is applied only to the outdoor unit.
2 When using the optional adapter, refer to the installation manual of the optional adapter.
3 For connection wiring to “to in/D unit F1-F2” or “to out/D unit F1-F2” refer to the installation manual.
4 How to use B1S~5, refer to “service precaution” label on el.compo.box (1) cover.
5 When operating, don’t shortcircuit the protection device (S1, 2PH).
A1P PRINTED CIRCUIT BOARD (MAIN) K2R MAGNETIC RELAY (Y5S) R32T
THERMISTOR (M2C DISCHARGE)
Y1E
ELECTRONIC EXPANSION VALVE (MAIN1)
A2P PRINTED CIRCUIT BOARD (SUB 1) K3R MAGNETIC RELAY (Y1S)(A1P) R4T
THERMISTOR (HEAT EXC.DEICER 1)
Y2E
ELECTRONIC EXPANSION VALVE (SUBCOOL 1)
A3P PRINTED CIRCUIT BOARD (SUB 2) K3R MAGNETIC RELAY (Y6S)(A2P) R5T
THERMISTOR (SUB COOL HEAT EXC. GAS 1)
Y3E
ELECTRONIC EXPANSION VALVE (MAIN2)
A4P, A7P
PRINTED CIRCUIT BOARD (NOISE FILTER)
K4R MAGNETIC RELAY (Y8S) R6T
THERMISTOR (SUB COOL HEAT EXC. LIQUID)
Y4E
ELECTRONIC EXPANSION VALVE (CHARGE)
A5P,A8P PRINTED CIRCUIT BOARD (INV) K5R MAGNETIC RELAY (Y2S)(A1P) R7T
THERMISTOR (HEAT EXC. LIQUID 1)
Y5E
ELECTRONIC EXPANSION VALVE (SUBCOOL 2)
A6P,A9P PRINTED CIRCUIT BOARD (FAN) K5R
MAGNETIC RELAY (FOR OPTION)(A2P)
R8T
THERMISTOR (SUCTION 1)
Y1S SOLENDID VALVE (RMTG)
BS1~5
PUSH BUTTON SWITCH
(MODE, SET, RETURN, TEST, RESET)
K5R MAGNETIC RELAY (Y9S)(A3P) R9T
THERMISTOR (LIQUID 1)
Y2S
SOLENDID VALVE (4WAY VALVE-HEAT EXC, 1)
K6R MAGNETIC RELAY (Y7S)(A2P) R10T
THERMISTOR (SUCTION 2)
Y3S SOLENDID VALVE (RMTL)
C1 CAPACITOR K7R MAGNETIC RELAY (E1HC)(A1P) R11T
THERMISTOR (HEAT EXC. GAS 2)
Y4S SOLENDID VALVE (HOT GAS)
C63,C66 CAPACITOR (A5P)(A8P) K7R MAGNETIC RELAY (E2HC)(A3P) R12T
THERMISTOR (HEAT EXC. DEICER 2)
Y5S SOLENDID VALVE (EV BYPASS 1)
E1HC,E2HC
CRANKCASE HEATER (A1P)(A3P) K11R MAGNETIC RELAY (Y10S)(A3P) R13T
THERMISTOR (SUB COOL HEAT EXC. GAS 2)
Y6S SOLENDID VALVE (RMTT)
F1U, F2U FUSE (T, 3.15A, 250V) (A1P)(A3P) L1R,L2R REACTOR R14T
THERMISTOR (LIQUID 2)
Y7S SOLENDID VALVE (RMTO)
F1U FUSE (T, 3.15A, 250V) (A2P) M1C,M2C MOTOR (COMPRESSOR) R15T
THERMISTOR (HEAT EXC. LIQUID 2)
Y8S
SOLENDID VALVE (4WAY VALVE-PIPE)
F1U FUSE (8A,DC650V) (A6P) (A9P) M1F,M2F MOTOR (FAN) S1NPH
PRESSURE SENSOR (HIGH)
Y9S
SOLENDID VALVE (4 WAY VALVE-HEAT EXC.2)
F400U FUSE (T, 6.3A, 250V) (A4P) (A7P) PS
SWITCHING POWER SUPPLY (A1P,A3P,A5P,A8P)
S2NPL
PRESSURE SENSOR (LOW)
Y10S SOLENDID VALVE (EV BYPASS 2)
K1 MAGNETIC RELAY (A5P) (A8P) Q1RP
PHASE REVERSAL DETECT CIRCUIT (A1P,A3P)
S1PH, S2PH PRESSURE SWITCH (HIGH)
Z1C~8C NOISE FILTER (FERRITE CORE)
K2
MAGNETIC CONTACTOR (M1C-A5P) (M2C-A8P)
R10
RESISTOR (CURRENT SENSOR) (A6P)(A9P)
V1CP
SAFETY DEVICES INPUT (A1P) (A3P)
Z1F
NOISE FILTER (WITH SURGE ABSORBEA)
K3 MAGNETIC RELAY (A4P) (A7P) R50,R59 RESISTOR (A5P)(A8P) V1R
DIODE BRIDGE (A5P)(A8P)
K4
MAGNETIC CONTACTOR (M1C-A4P) (M2C-A7P)
R90
RESISTOR (CURRENT SENSOR) (A5P)(A8P)
V1R
POWER MODULE (A6P)(A9P)
H1P~8P
PILOTLAMP (SERVICE MONITOR: ORANGE)
[H2P] PREPARE TEST - - - FLICKERING
MALFUNCTION DETECTION - - - LIGHT UP
R95
RESISTOR (CURRENT LIMITING) (A5P)(A8P)
V2R
POWER MODULE(A5P)(A8P) CONNECTOR FOR OPTIONAL PARTS
R1T THERMISTOR (A1R) (A1P) X1M
TERMINAL STRIP (POWER SUPPLY)
X7A OPERATION OUTPUT (A2P)
R1T THERMISTOR (F1N) (A5P)(A8P) X1M
TERMINAL STRIP (CONTROL) (A1P)(A3P)
X9A POWER SUPPLY (ADAPTER) (A2P)
HAP
PILOT LAMP (SERVICE MONITOR-GREEN) (A1P,A2P,A3P)
R2T
THERMISTOR (HEAT EXC. GAS1)
X2M TERMINAL STRIP (RELAY) X37A POWER SUPPLY (ADAPTER) (A3P)
K1R MAGNETIC RELAY (Y4S) R31T
THERMISTOR (M1C DISCHARGE)
X1A-X9A CONNECTOR
: Terminal strip Colors: BLK: Black Symbols indicate colors of each part as shown below.
: Connector BLU: Blue is connector color for printed circuit broadband
: Protective earth (screw) RED: Red is connector color for component
: Terminal WHT: White is indification color for component lead wire
: Field wiring
WIRING DIAGRAM
Power supply
3N~380-415V 50Hz
EL.COMPO.BOX (2) EL.COMPO.BOX (1)
(FRONT)
(BACK)
TERMINAL OF M1C, M2C
LAYOUT OF M1C,M2C, M1F,M2F
EL. COMPO.
BOX (2)
EL. COMPO.
BOX (1)
THIS DWG.
M1C
OUTHER SHELL
M2C
Note 3
TO
IN
/
D
UNIT
TO
OUT
/
D
UNIT
TO
MULTI
UNIT
Indoor
(F1)(F2)
Outdoor
(F1)(F2)
{
TO
MULTI
UNIT
(FRONT)
(BACK)
3D056774C
