• Outdoor Units • VRV HEAT RECOVERY • REYQ8-48P7Y1B
1
4
• VRV Systems • Outdoor Units
104

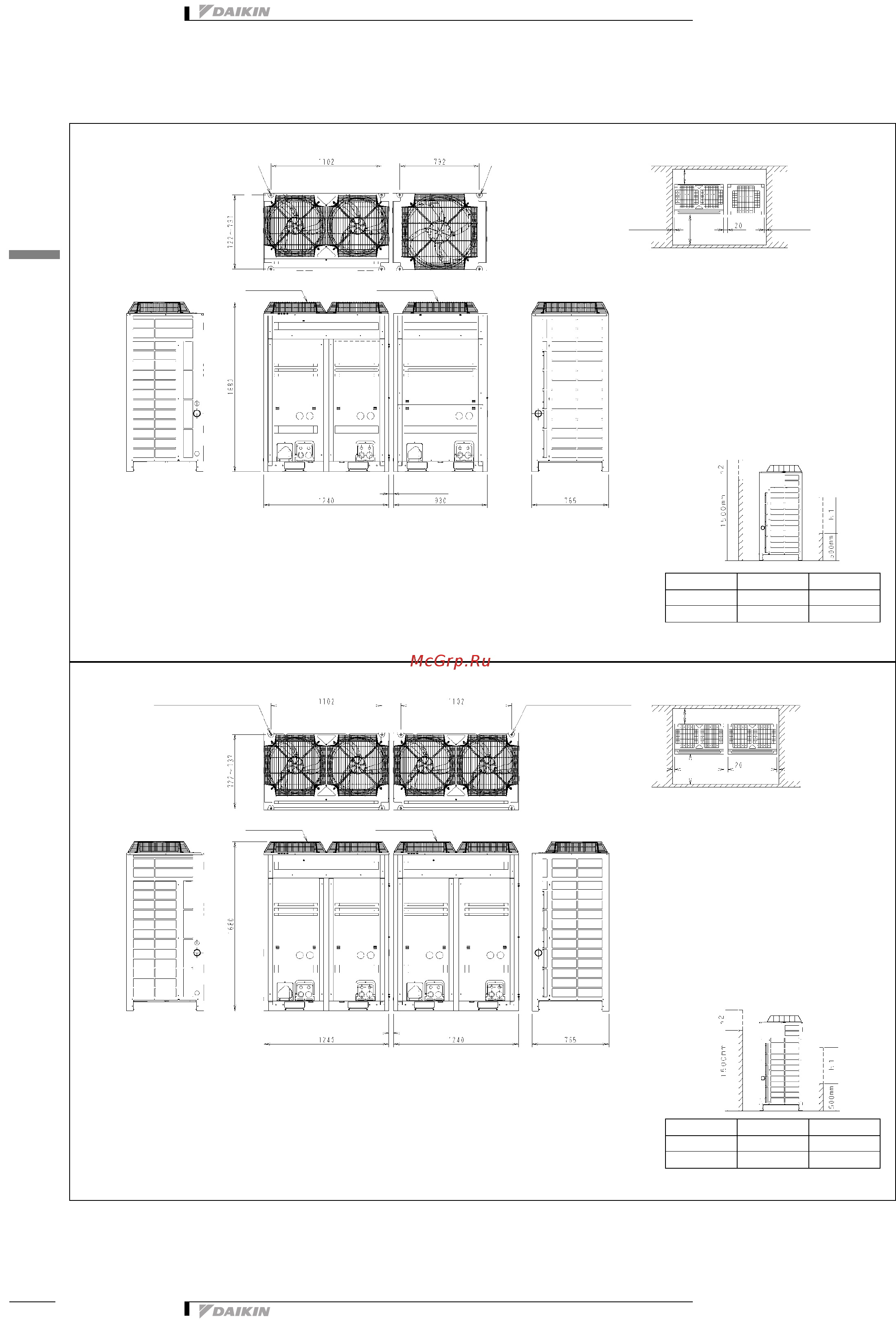

4 Dimensional drawing & centre of gravity
4 - 1 Dimensional drawing
3D057886
(Pitch of foundation bolt holes)
REYQ26,28P
(Pitch of foundation bolt
holes)
4-15X22,5-mm-Oblong holes
4-15X22,5-mm-Oblong holes
(foundation bolt hole)
(foundation bolt hole)
(Pitch of foundation bolt holes)
Outdoor unit 1 Outdoor unit 2
20 or more
<Front>
<suction side>
10 or more
300 or more
(Front)
500 or more
20 or more
10 or more
Notes:
1 Heights of walls
Front: 1500 mm
suction side: 500 mm
Side: Height unrestricted.
The installation space shown in this figure is based on the condition of cooling operation at the outdoor air temperature of 35°C.
The installation space of suction side shown above must be expanded in the following case.
- Design outdoor temperature becomes over 35°C.
- Operating over Max. operating load (In case of causing a heavy heating load at indoor unit side).
2 If the above wall heights are exceeded then h1/2 and h2/2 should be added to the front and suction side service spaces respectively as shown in the figureon
the right.
3 When installing the units most appropriate pattern should be selected from those shown above in order to obtain the best fit in the space available always bearing
in mind the need to leave enough space for a person to pass between units and wall and for the air to circulate freely.
(If more units are to be installed than are catered for in the above patterns your layout should take account of the possibility of short circuits.)
4 The units should be installed to leave sufficient space at the front for the on site refrigerant piping work to be carried out comfortably.
Model name Outdoor unit 1 Outdoor unit 2
REYQ26P REMQ16P REMQ10P
REYQ28P REMQ16P REMQ12P
3D057887
(Pitch of foundation bolt holes)
REYQ30,32P
(Pitch of foundation bolt
holes)
4-15X22,5-mm-Oblong holes
4-15X22,5-mm-Oblong holes
(foundation bolt hole)
(foundation bolt hole)
(Pitch of foundation bolt holes)
Outdoor unit 1 Outdoor unit 2
20 or more
<Front>
<suction side>
10 or more
300 or more
(Front)
500 or more
20 or more
10 or more
Notes:
1 Heights of walls
Front: 1500 mm
suction side: 500 mm
Side: Height unrestricted.
The installation space shown in this figure is based on the condition of cooling operation at the outdoor air temperature of 35°C.
The installation space of suction side shown above must be expanded in the following case.
- Design outdoor temperature becomes over 35°C.
- Operating over Max. operating load (In case of causing a heavy heating load at indoor unit side).
2 If the above wall heights are exceeded then h1/2 and h2/2 should be added to the front and suction side service spaces respectively as shown in the figureon
the right.
3 When installing the units most appropriate pattern should be selected from those shown above in order to obtain the best fit in the space available always bearing
in mind the need to leave enough space for a person to pass between units and wall and for the air to circulate freely.
(If more units are to be installed than are catered for in the above patterns your layout should take account of the possibility of short circuits.)
4 The units should be installed to leave sufficient space at the front for the on site refrigerant piping work to be carried out comfortably.
Model name Outdoor unit 1 Outdoor unit 2
REYQ30P REMQ16P REMQ14P
REYQ32P REMQ16P REMQ16P
