• Outdoor Units • VRV HEAT RECOVERY • REYQ8-48P7Y1B

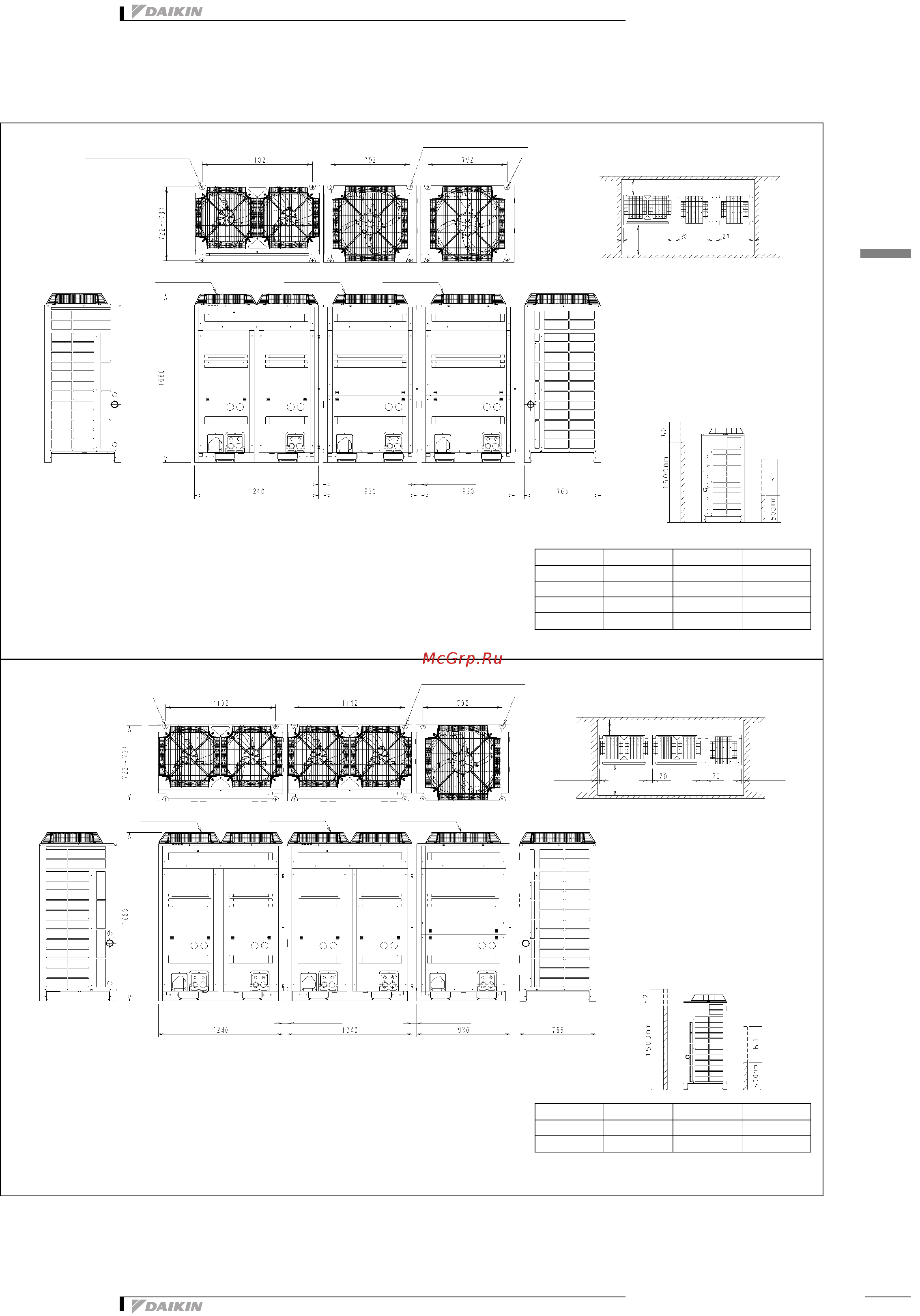

4 Dimensional drawing & centre of gravity
4 - 1 Dimensional drawing
3D057888
(Pitch of foundation bolt
holes)
REYQ34,36,38,40P
(Pitch of foundation bolt
holes)
4-15X22,5-mm-Oblong holes
4-15X22,5-mm-Oblong holes
(foundation bolt hole)
(foundation bolt hole)
(Pitch of foundation bolt holes)
Outdoor unit 1 Outdoor unit 2
20 or more
<Front>
<suction side>
10 or more
300 or more
(Front)
500 or more
20 or more
10 or more
Notes:
1 Heights of walls
Front: 1500 mm
suction side: 500 mm
Side: Height unrestricted.
The installation space shown in this figure is based on the condition of cooling operation at the outdoor air temperature of 35°C.
The installation space of suction side shown above must be expanded in the following case.
- Design outdoor temperature becomes over 35°C.
- Operating over Max. operating load (In case of causing a heavy heating load at indoor unit side).
2 If the above wall heights are exceeded then h1/2 and h2/2 should be added to the front and suction side service spaces respectively as shown in
the figure on the right.
3 When installing the units most appropriate pattern should be selected from those shown above in order to obtain the best fit in the space available
always bearing in mind the need to leave enough space for a person to pass between units and wall and for the air to circulate freely.
(If more units are to be installed than are catered for in the above patterns your layout should take account of the possibility of short circuits.)
4 The units should be installed to leave sufficient space at the front for the on site refrigerant piping work to be carried out comfortably.
Model name Outdoor unit 1 Outdoor unit 2 Outdoor unit 3
REYQ34P REMQ16P REMQ10P REMQ8P
REYQ36P REMQ16P REMQ12P REMQ8P
REYQ38P REMQ16P REMQ12P REMQ10P
REYQ40P REMQ16P REMQ12P REMQ12P
4-15X22,5-mm-Oblong holes
(foundation bolt hole)
20 or more
20 or more
Outdoor unit 3
3D057889
(Pitch of foundation bolt holes)
REYQ42,44P
(Pitch of foundation bolt
holes)
4-15X22,5-mm-Oblong holes
4-15X22,5-mm-Oblong holes
(foundation bolt hole)
(foundation bolt hole)
(Pitch of foundation bolt holes)
Outdoor unit 1
Outdoor unit 2
20 or more
<Front>
<suction side>
10 or more
300 or more
(Front)
500 or more
20 or more
10 or more
Notes:
1 Heights of walls
Front: 1500 mm
suction side: 500 mm
Side: Height unrestricted.
The installation space shown in this figure is based on the condition of cooling operation at the outdoor air temperature of 35°C.
The installation space of suction side shown above must be expanded in the following case.
- Design outdoor temperature becomes over 35°C.
- Operating over Max. operating load (In case of causing a heavy heating load at indoor unit side).
2 If the above wall heights are exceeded then h1/2 and h2/2 should be added to the front and suction side service spaces respectively as shown in
the figure on the right.
3 When installing the units most appropriate pattern should be selected from those shown above in order to obtain the best fit in the space available
always bearing in mind the need to leave enough space for a person to pass between units and wall and for the air to circulate freely.
(If more units are to be installed than are catered for in the above patterns your layout should take account of the possibility of short circuits.)
4 The units should be installed to leave sufficient space at the front for the on site refrigerant piping work to be carried out comfortably.
Model name Outdoor unit 1 Outdoor unit 2 Outdoor unit 3
REYQ42P REMQ16P REMQ16P REMQ10P
REYQ44P REMQ16P REMQ16P REMQ12P
4-15X22,5-mm-Oblong holes
(foundation bolt hole)
20 or more
20 or more
Outdoor unit 3
(Pitch of foundation bolt
holes)
