Si37-701 Refrigerant Flow for Each Operation Mode
Refrigerant Circuit 93

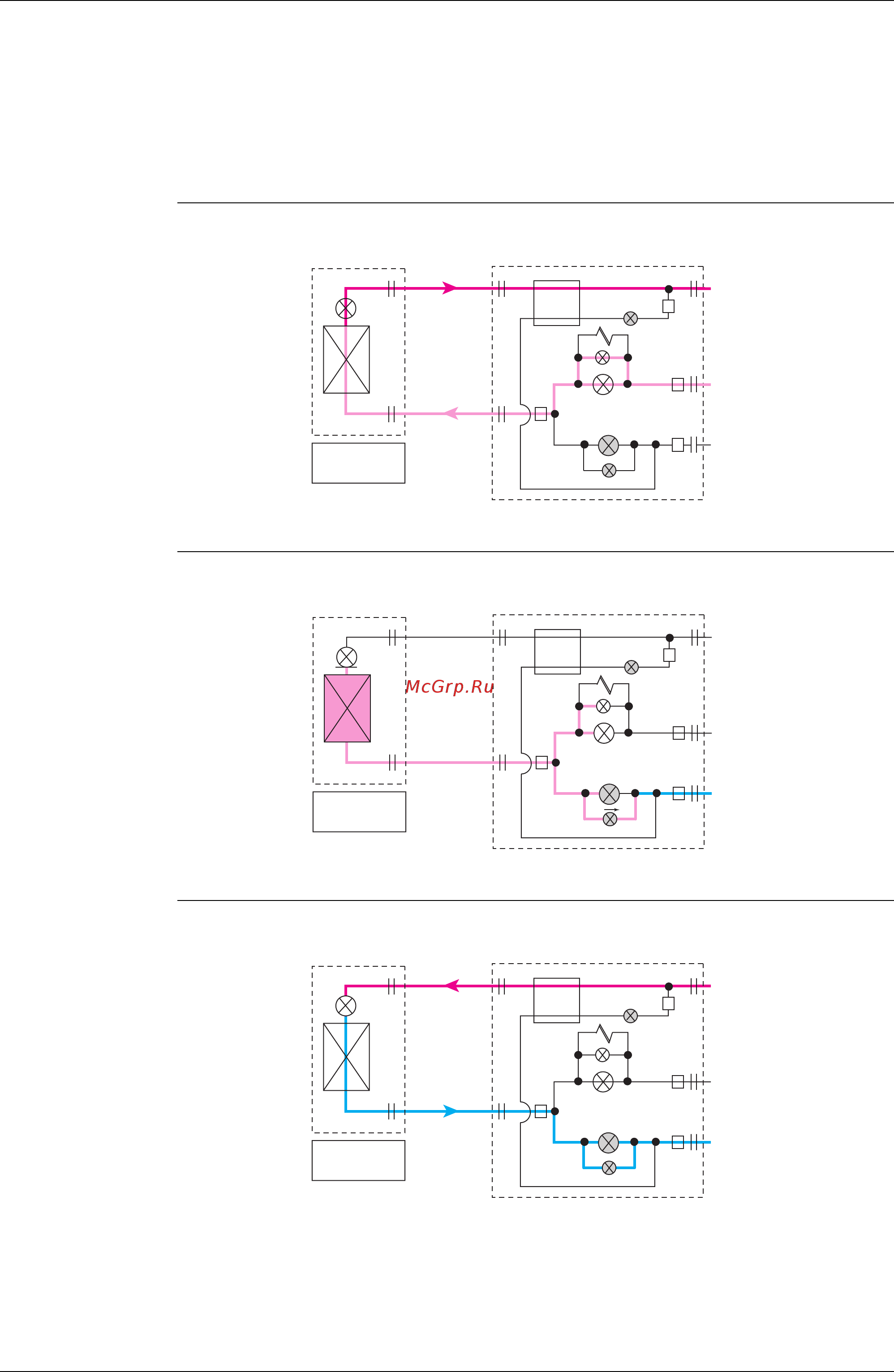

2. When switching operation from heating to cooling
First, the electric expansion valve and the solenoid valve for EVHS, EVH, EVL and EVLS of
the indoor unit will be closed.
Next, open the EVLS, and it makes to balance the system pressure.
Finally, EVL and EVLS are opened and the electric expansion valve of the indoor unit is
opened to start the operation as a cooling circuit.
In heating
operation
In equalization
To cooling
operation
BS Unit
Indoor Unit
Heating
Unit
EVH
EVL
EVHS
EVLS
EVSC
Suction
Pipe
Dual
Pressure
Gas Pipe
Liquid
Pipe
BS Unit
Indoor Unit
In
equalization
EVH (Close)
(Close)
EVL (Close)
EVHS (Close)
EVLS (Open)
EVSC
Suction
Pipe
Dual
Pressure
Gas Pipe
Liquid
Pipe
BS Unit
Indoor Unit
Cooling
Unit
EVH
EVL
EVHS
EVLS
EVSC
Suction
Pipe
Dual
Pressure
Gas Pipe
Liquid
Pipe
