Si37-701 Troubleshooting by Indication on the Remote Controller
Troubleshooting 247
3.13
“E1”
Outdoor Unit: PC Board Defect
Remote
Controller
Display
E1
Applicable
Models
REYQ8P~48P
Method of
Malfunction
Detection
Abnormality is detected under the communication conditions in the hardware section between
the indoor unit and outdoor unit.
Malfunction
Decision
Conditions
When the communication conditions in the hardware section between the indoor unit and the
outdoor unit are not normal.
Supposed
Causes
Defect of outdoor unit PC board (A1P)
Defective connection of inside/ outside relay wires

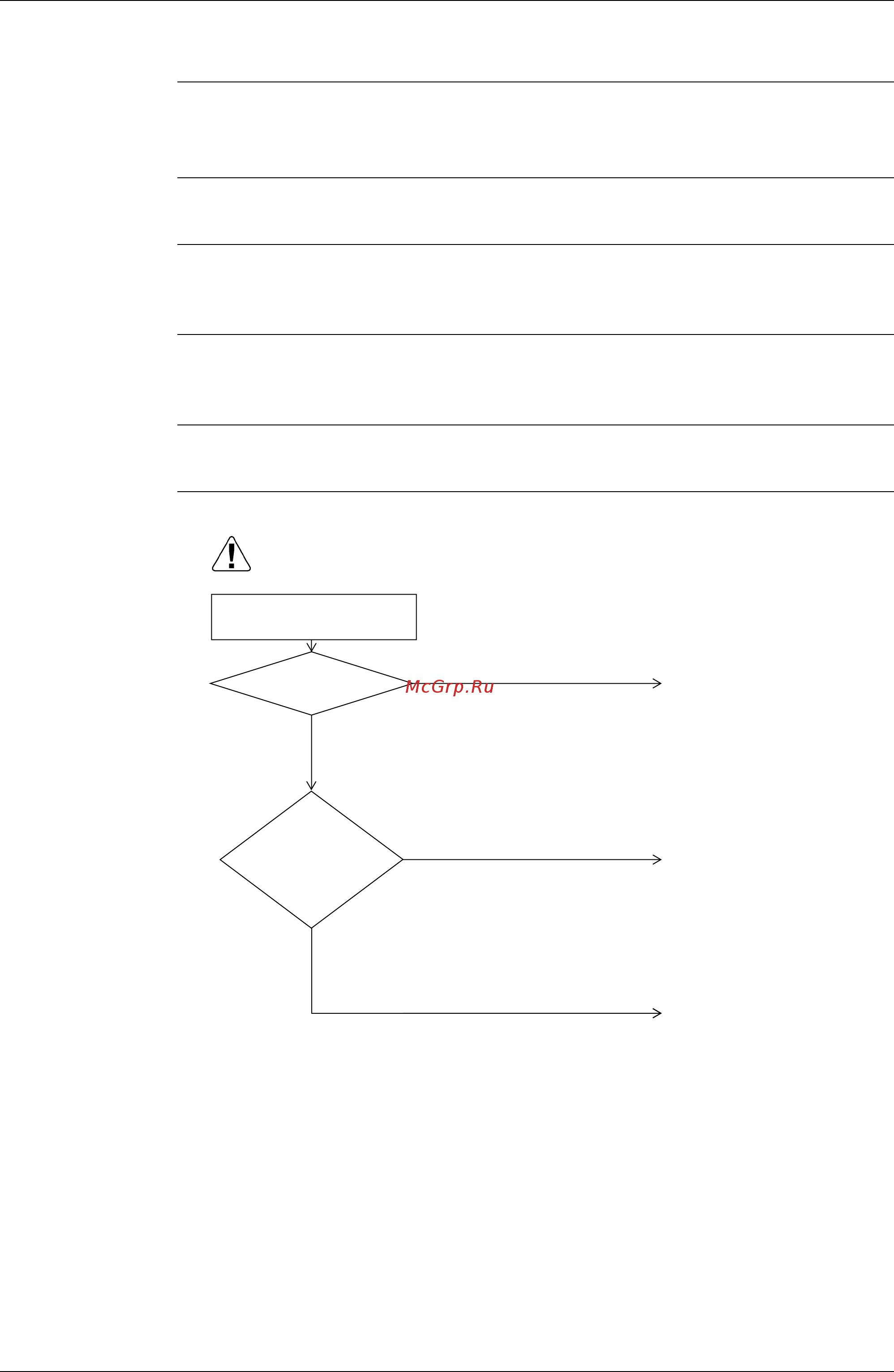

Troubleshooting
Turn off the power once and
turn on again.
Return to normal?
Check
if inside / outside
relay wires of outdoor
main PC board is
disconnected.
YES
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
External factor other than
malfunction (for example,
noise etc.).
Connect the inside/ outside
relay wires correctly.
Replace outdoor main PC
board (A1P).
(V3064)
NO
NO
YES
