Outline of Control (Indoor Unit) Si37-701
144 Function

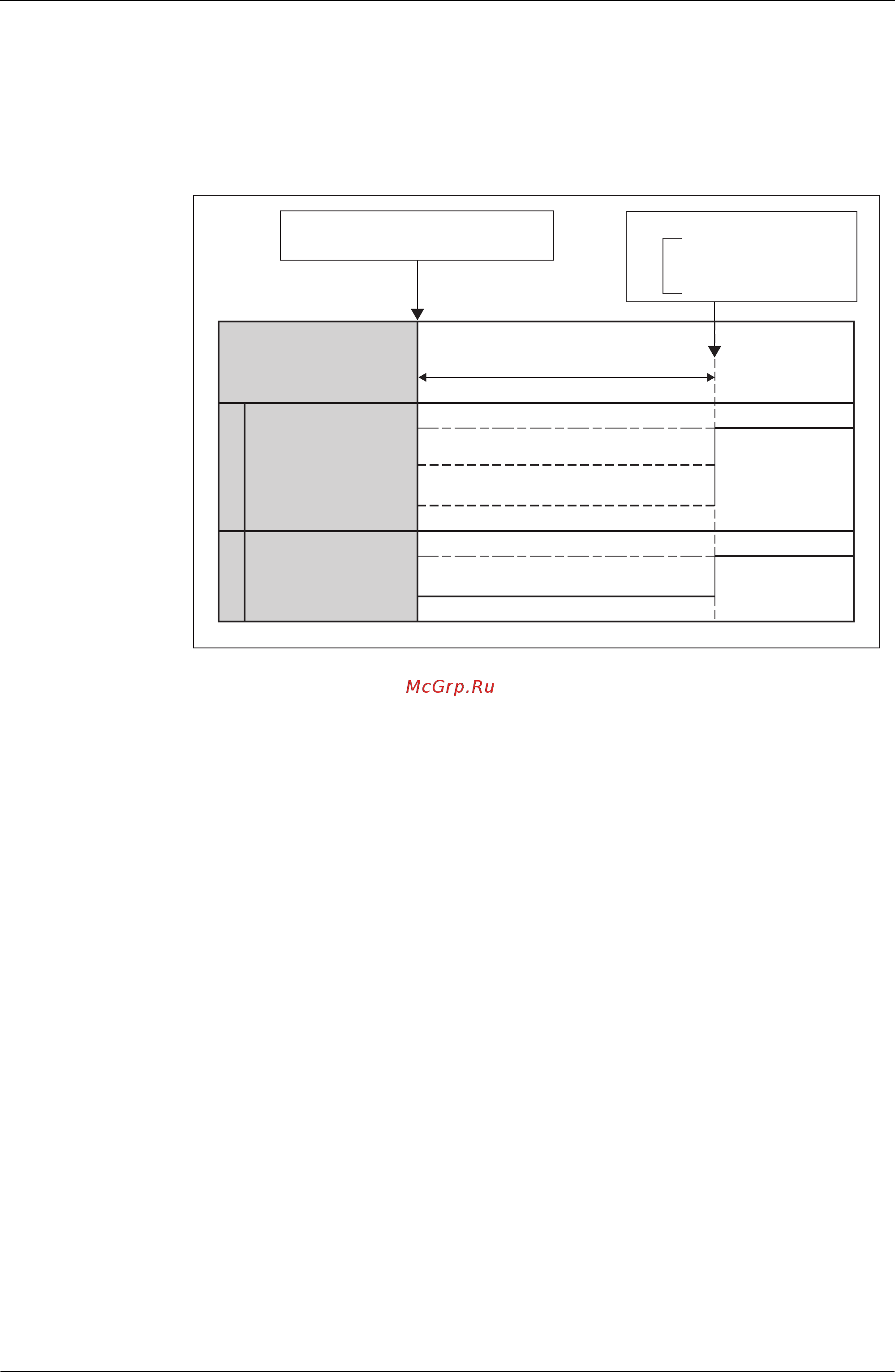

6.8 Hot Start Control (In Heating Operation Only)
At startup with thermostat ON or after the completion of defrosting in heating operation, the
indoor unit fan is controlled to prevent cold air from blasting out and ensure startup capacity.
[Detail of operation]
When either the start condition 1 or the start condition 2 is established, the operations shown
below will be conducted.
TH
2
: Temperature (°C) detected with the gas thermistor
TC
: High pressure equivalent saturated temperature
Defrost ending or oil return ending
or Thermostat ON
The fan is not OFF before initiating the hot start: LL
The fan is OFF before initiating the hot start: OFF
Hot start control Hot start in progress
Normal control
Normal control
H/L remote
controller setting
LL
OFF
Remote controller
setting
Po (Horizontal)
FanLouver
Hot start ending conditions
· lapse of 3 minutes
· [TH2]>34˚C
· "Tc">52˚C
OR
