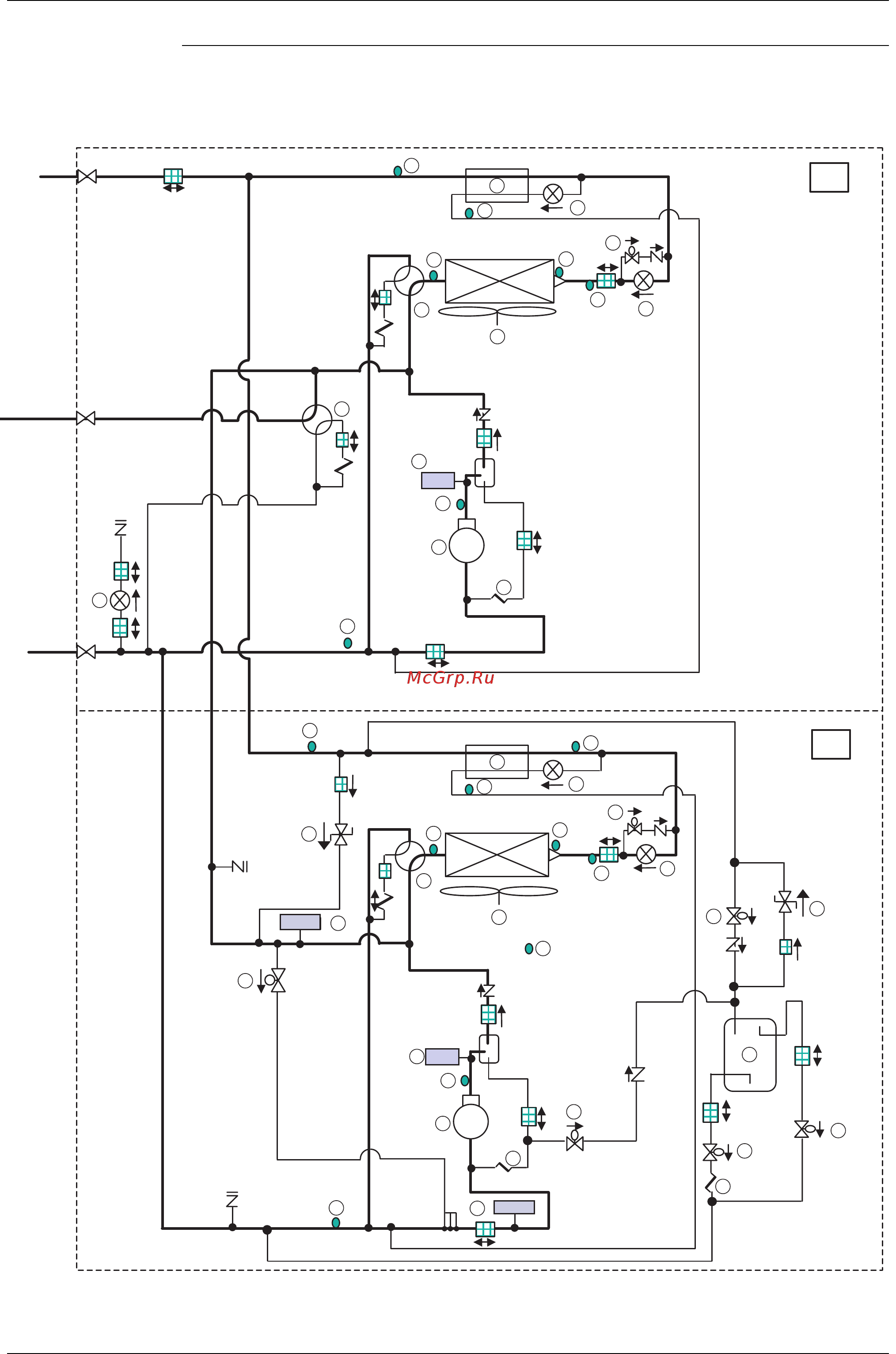

Si37-701 Refrigerant Circuit
Refrigerant Circuit 53
REYQ14P, 16P
(14HP, 16HP Single Type)
(INV Unit × 2)
Liquid
Pipe
Dual Pressure
Gas Pipe
Suction
Pipe
Stop
Valve
Stop
Valve
Stop
Valve
Gauge Port
50
26
48
8
45
46
18
19
23
33
28
2
41
40
26
39
37
10
35
36
20
12
22
31
3
7
38
17
5
13
25
27
30
16
32
1
21
29
14
15
28
24
9
47
6
4
11
Liquid Pipe
INV1
INV2
Right
Left
S2PH
S1NPH
S2NPL
S1PH
Gauge Port
Subcool heat exchanger 2
Heat exchanger 2
Subcool heat exchanger 1
Heat exchanger 1
